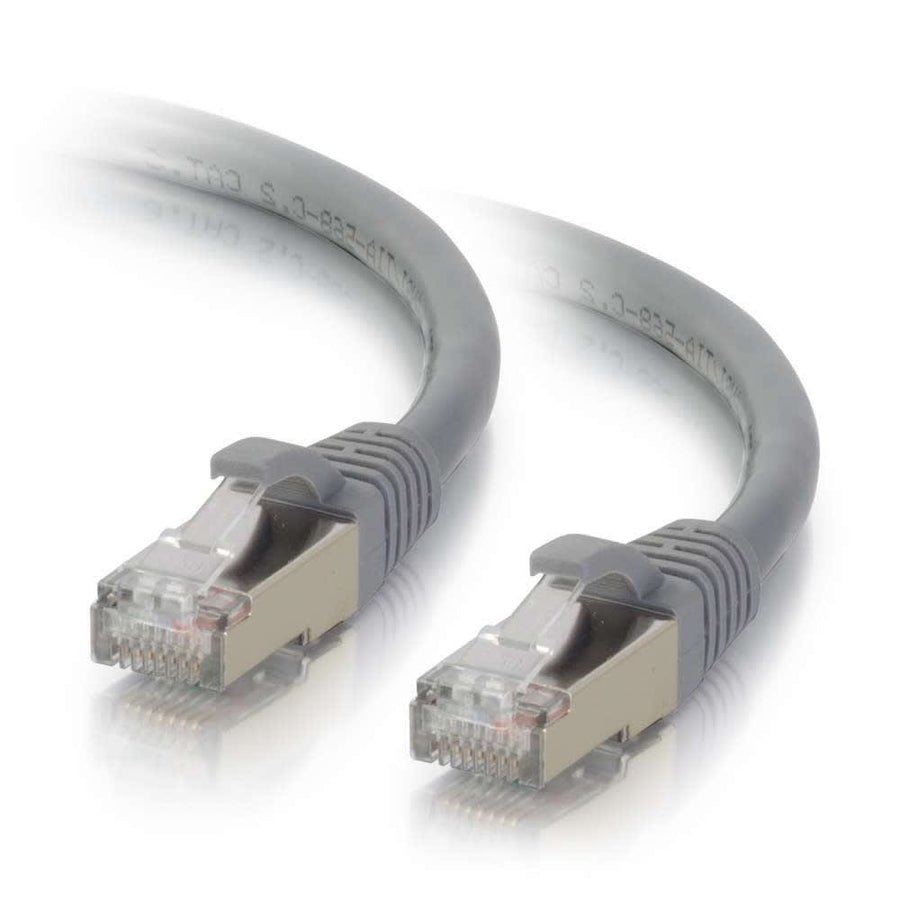

35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
35ft (10.7m) shielded Cat6 STP patch cable with snagless boots and T568B wiring in gray
The CG00790 is a 35ft (10.7m) Cat6 Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This gray cable is ideal for voice, data, and video distribution in environments where bandwidth-intensive applications require minimal impedance and structural return loss (SRL). Constructed with 26AWG (7/0.16) bare copper stranded conductors, each of the four pairs is bonded together to maintain twist-spacing up to the termination point. This construction helps minimize Near-End Crosstalk (NEXT) levels. The cable features PVC jacket material and PVC connector hoods with snagless, booted RJ-45 male connectors on both ends. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements and is rated for temperatures up to 75°C. This cable follows the T568B wiring scheme and is a suitable solution for professional installers needing reliable, shielded connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | STP |
| Shipping Weight | 1.01 lbs (0.5 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007906 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this CG00790 cable work for high-bandwidth data applications?
Yes, this Cat6 STP cable is designed to handle bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
What is the wiring standard for the C2G CG00790?
This patch cable uses the T568B wiring scheme and features 26AWG bare copper stranded conductors.
What is the difference between the snagless boot and standard RJ-45 connectors?
The snagless boot protects the connector tab from damage during installation, while the STP shielding protects the signal from electromagnetic interference.
Is the CG00790 compliant with TAA requirements?
No, this specific SKU is not TAA compliant.
Can I use this cable with LANsmart or Psiber testers?
This cable is compatible with testing equipment like the LANsmart TDR Cable Tester and Psiber Pinger Plus Network IP Tester.
