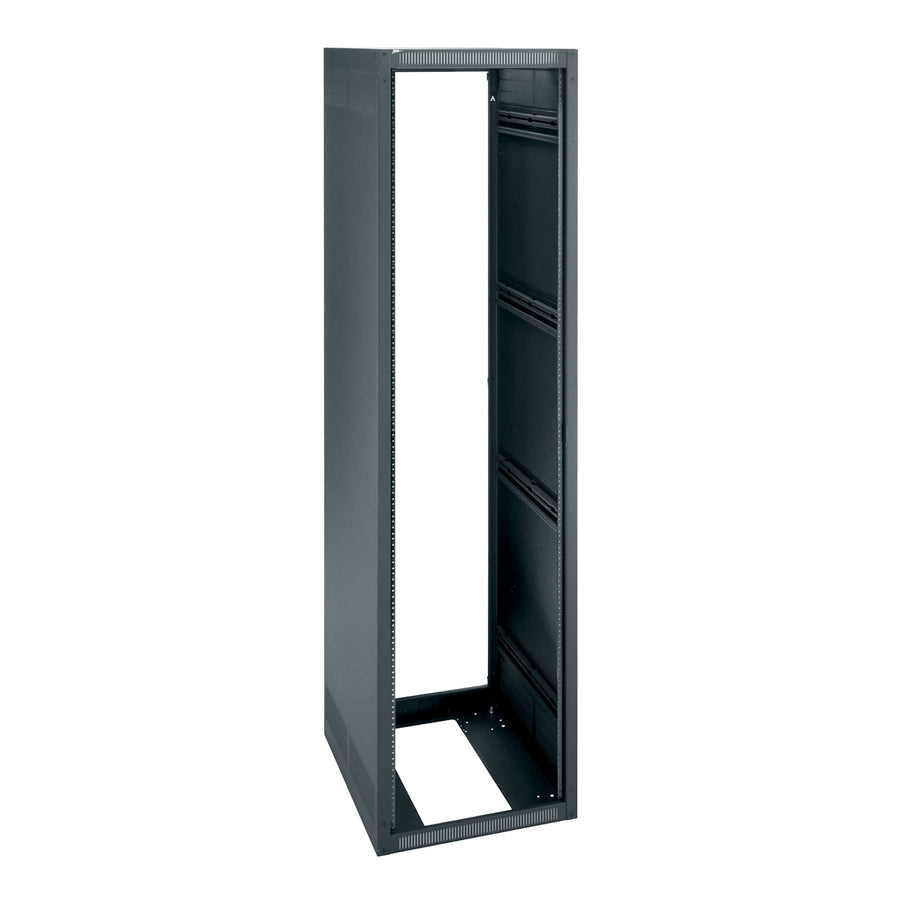

35 RU ERK Series Rack, 28 Inches Deep without Rear Door
35RU floor-standing rack, 28 inches deep, featuring seismic rating and TAA compliance
The ERK-3528LRD is a 35RU floor-standing rack designed for professional AV installations that require a robust, standalone structure. This frame-only configuration features a 28 in (71.1 cm) depth and a 65.38 in (166.1 cm) height, providing a total of 61.38 in (155.9 cm) of usable height. Built with fully welded steel construction and finished in a black wrinkle powder coat, this rack is UL Listed in the US and Canada with a 2,500 lbs (1,134 kg) load capacity. For environments requiring enhanced stability, it is seismically rated with a seismic load capacity of 680 lbs (308.4 kg) when installed with ERK-Z4 brackets. The rack includes top and bottom venting in the sides and features slotted rackrail brackets and convenient lacing points for efficient cable management. The standard front adjustable 10-32 threaded rackrails include numbered spaces for precise equipment placement. This TAA compliant, USA-made rack can be ganged to other ERK series enclosures to create partitioned multi-bay installations for improved security and thermal management control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 65.38 in (166.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 93.1 lbs (42.2 kg) |
| Rack Units | 35 RU |
| Shipping Weight | 125 lbs (56.7 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 in (67.2 cm) |
All other specifications 15
| Usable Height | 61.38 in (155.9 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747213601 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 680 lbs (308.4 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for 28 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-28$343.80
35 RU Vented Front Door for DWR and EWR Racks
VFD-35$576.90
Lace Bar 4 Inch Offset, L-Shaped - 10 Pieces
LBP-4A$118.80
165 CFM Fan Top for with Controller ERK Series
ERK-4QFT-FC$903.60
35 RU Solid Front Door for DWR and EWR Racks
FD-35$404.10
PDT Low Profile Vertical Power Strip, 14 Outlet, 15A
PDT-1415C-NS$286.20
35 RU Plexi Front Door for DWR, EWR, or ERK Racks
PFD-35$852.30
MPR Raceway, 56 Inches, Accepts 6 Modules
MPR-6A$158.40
35 RU Rackrail 10-32 for ERK Series
ERK-RR35$126.00
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
What is the usable depth and height for equipment mounting in the ERK-3528LRD?
The ERK-3528LRD offers a usable depth of 26.47 in (67.2 cm) and a usable height of 61.38 in (155.9 cm) within the 35RU frame.
Is the ERK-3528LRD suitable for seismic applications?
Yes, this rack is seismically rated with a seismic load capacity of 680 lbs (308.4 kg) provided it is installed with ERK-Z4 brackets.
Can I add doors or accessories to this ERK series rack?
Yes, you can customize this frame with accessories such as the VFD-35 vented front door, FD-35 solid front door, or PFD-35 plexiglass front door.
What is the maximum weight capacity for the ERK-3528LRD?
The unit is UL Listed with a total weight capacity of 2,500 lbs (1,134 kg).
Can multiple ERK racks be connected together?
Yes, the ERK series is designed to be ganged together to create multi-bay installations for better security and thermal management.
