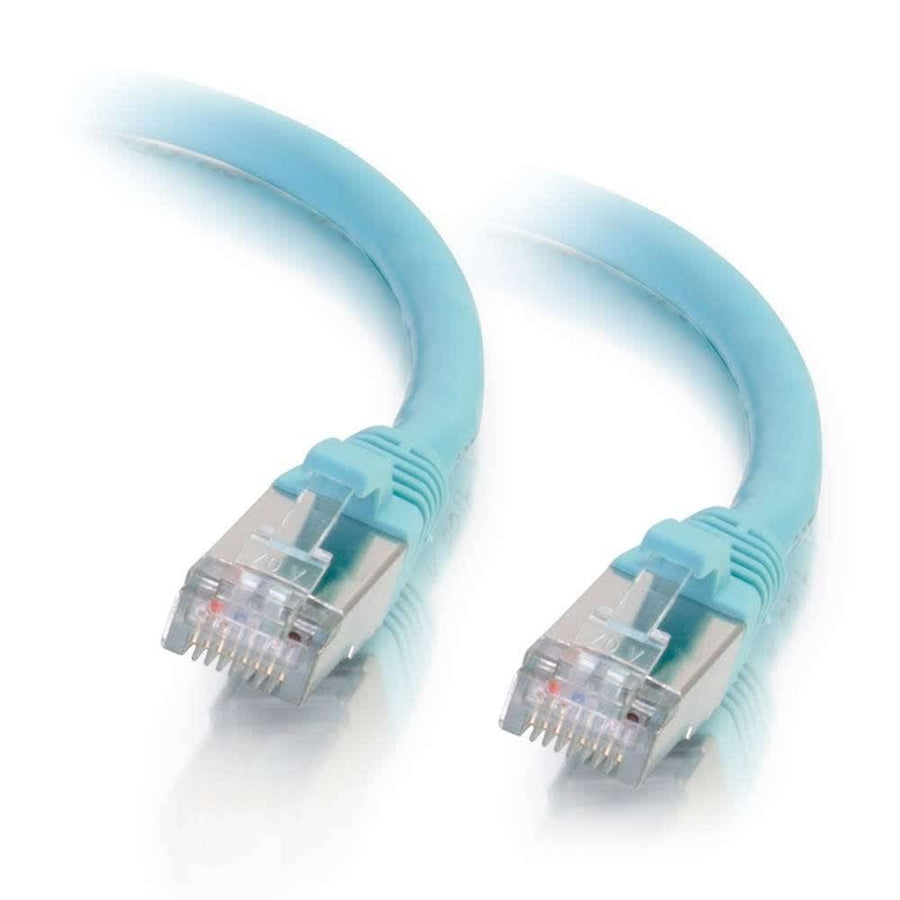

30ft (9.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
30ft Cat6a shielded STP patch cable with snagless boots, aqua color, and 26AWG stranded copper conductors
The C2G CG00755 is a 30ft (9.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in Aqua, engineered specifically for 10GBase-T environments. This cable is designed to support high-speed connections for network adapters, switches, routers, hubs, and patch panels while protecting data from electromagnetic interference and noise. Utilizing a shielded STP construction, it is highly effective for bandwidth-intensive voice, data, and video distribution applications by significantly reducing structural return loss (SRL) and impedance. The cable features 26AWG bare copper stranded conductors with FMPE foam polyethylene insulation to maintain signal integrity. Each individual pair is bonded together to preserve twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. For organized installation, each cable features an individual length label and a snagless, booted connector design to prevent accidental disconnection during maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.8 lbs (0.4 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007555 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this C2G CG00755 cable support 10GbE networks?
Yes, it is designed for 10GBase-T ports and equipment, providing the necessary shielding to handle high-speed, bandwidth-intensive applications.
What is the wiring scheme for the CG00755?
This Cat6a patch cable uses the 568B wiring scheme for all connections.
Is this cable suitable for high-interference environments?
Yes, the shielded STP design and bonded pair construction help minimize Near-End Crosstalk (NEXT) and protect against electromagnetic interference.
What is the bend radius for this 30ft patch cable?
The minimum bend radius for the CG00755 is 1.95 in (49.6 mm) with a cable diameter of 0.24 in (6.2 mm).
Does this cable meet TIA standards for Cat6a?
Yes, each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
