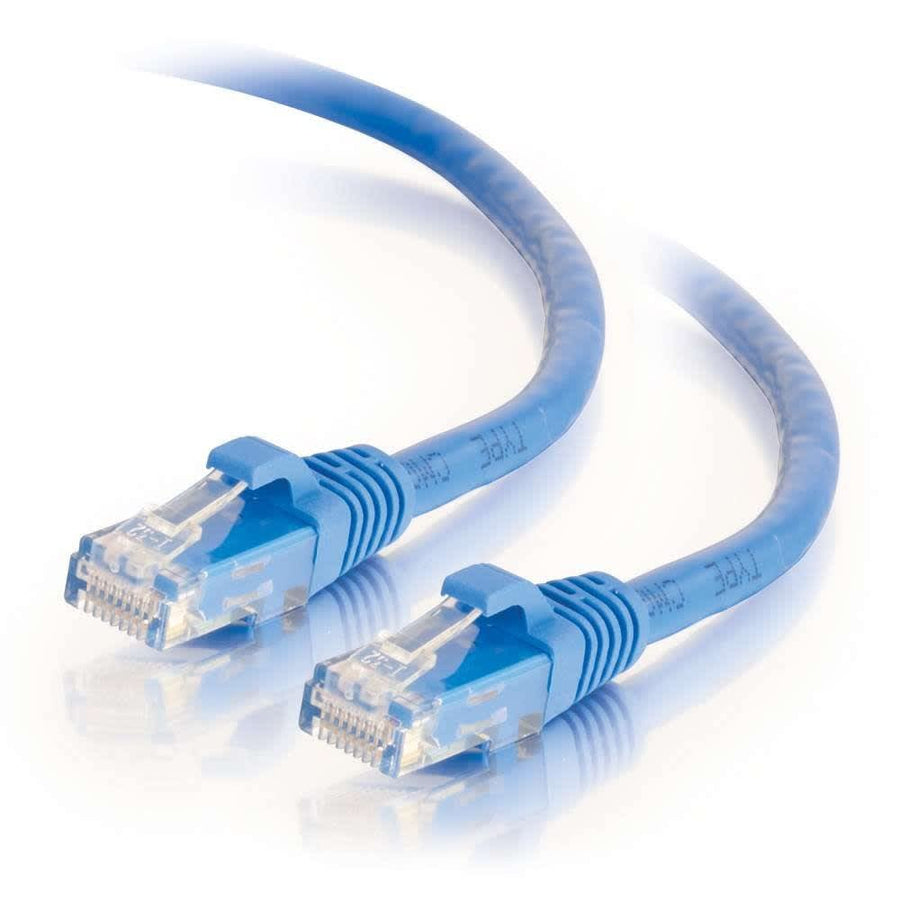

30ft (9.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
30ft Blue Cat6 Unshielded UTP Ethernet Patch Cable with snagless boots and RJ-45 connectors
The C2G CG03980 is a 30ft (9.1 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for high-bandwidth environments. This blue cable is engineered for fast Ethernet and Gigabit computer networks that require reliable voice, data, or video distribution. Built with 24 AWG stranded copper conductors, it is designed to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing from the cable through to the termination point, which helps reduce impedance and structural return loss (SRL). The connectors feature a snagless, booted design with PVC hoods to protect the clips from damage during installation and provide added strain relief. This cable follows the T568B wiring scheme and meets all Cat6 TIA/EIA standards. It is an unshielded solution suitable for standard non-rated environments, providing a reliable link for bandwidth-intensive applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039808 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03988$21.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this CG03980 cable fit my network hardware?
Yes, it uses standard RJ-45 Male connectors and is compatible with devices requiring Cat6 TIA/EIA compliant cabling, such as those used with a 48-Port Rack Mount Patch Panel.
What is the difference between this and the black version?
The CG03980 is the blue variant; the CG03988 is the identical Cat6 snagless patch cable in black.
How do I know if this is a shielded or unshielded cable?
This is an unshielded (UTP) cable, meaning it does not have additional shielding around the individual pairs.
Is this cable suitable for high-speed data distribution?
Yes, it is designed for bandwidth-intensive voice, data, and video applications, including Gigabit Ethernet networks.
What documentation is available for technical submittals?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for detailed performance and application data.
