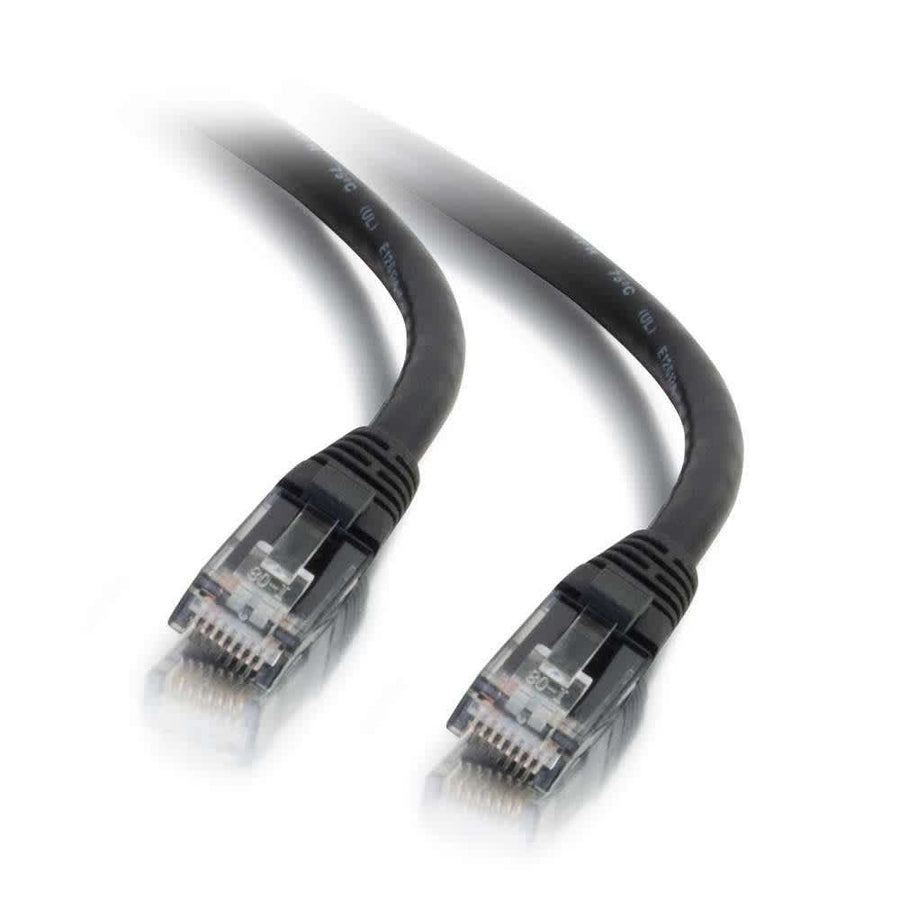

30ft (9.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
30ft Cat6 snagless UTP Ethernet patch cable, black finish, designed for bandwidth-intensive data and video applications
The C2G CG03988 is a 30ft (9.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance computer networks. This cable is suitable for bandwidth-intensive applications including voice, data, and video distribution. It meets all Cat6 TIA/EIA standards, which helps significantly reduce impedance and structural return loss (SRL). To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing throughout the entire 30ft length right up to the termination point. This construction, utilizing high-quality stranded copper conductors, is designed to minimize Near-End Crosstalk (NEXT) levels. The cable features a 24 AWG wire gauge and uses an RJ-45 male to RJ-45 male connector configuration with a PVC jacket and hood material. For easier installation and protection, the molded snagless boots protect the clips from damage during plugging and unplugging while providing added strain relief. This black cable is part of a series available in up to 150ft lengths and 10 different colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.8 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039884 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG03980$21.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth for voice, data, or video.
What is the difference between this and the blue version?
The CG03988 is the black version of this cable; the CG03980 is the 30ft (9.1m) blue variant in the same series.
Is this cable suitable for patch panels?
Yes, it is compatible with various hardware including the 48-Port Rack Mount Patch Panel (48845CC6) and 24-Port Rack Mount Patch Panel (24845CC6).
What is the construction of the conductors in the CG03988?
The cable uses 24 AWG stranded copper conductors and is an unshielded twisted pair (UTP) design.
How do I verify the technical compliance of this cable?
This cable is designed to meet all Cat6 TIA/EIA standards and is compliant with RoHS and REACH certifications.
