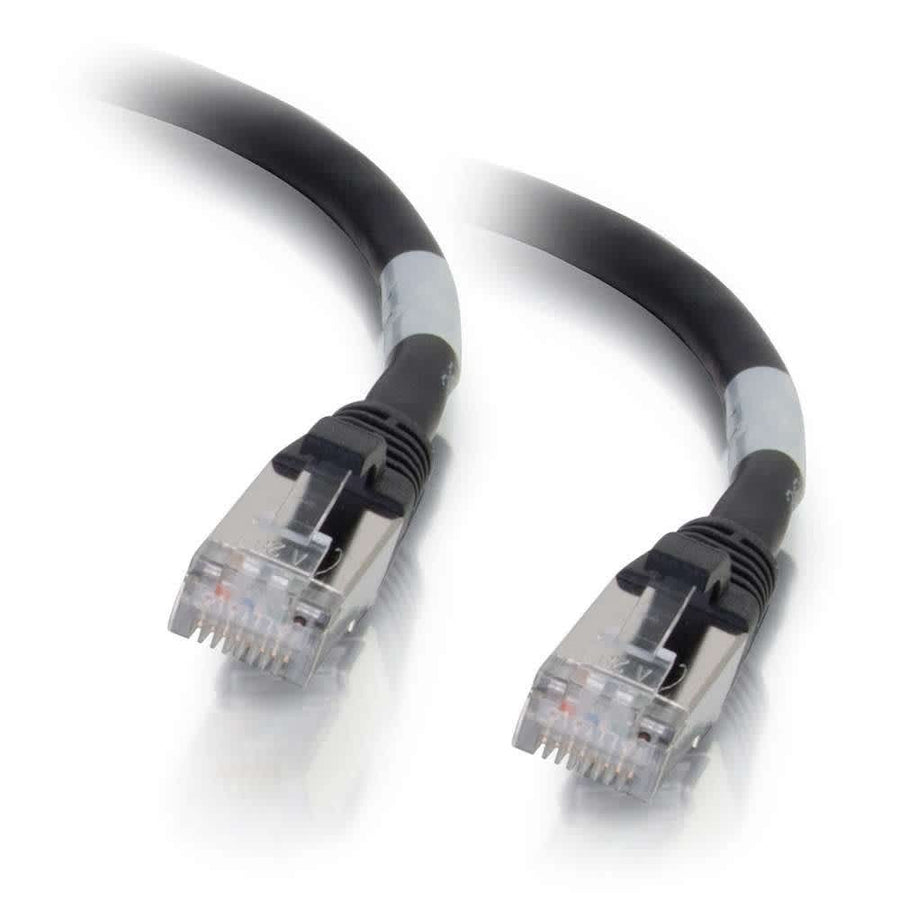

2ft (0.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat6a patch cable, 2 ft (0.6 m) length, snagless boots, black finish
The C2G CG00707 is a 2 ft (0.6 m) Cat6a Snagless Shielded STP Ethernet patch cable designed to support high-bandwidth 10GBase-T network environments. This shielded STP cable is specifically engineered to protect high-speed 10 Gigabit connections from electromagnetic interference (EMI) and noise, making it suitable for use with network adapters, hubs, switches, routers, modems, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for voice, data, and video distribution. The construction features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. This black patch cable features snagless, booted RJ-45 male connectors with PVC hoods for added protection during installation and handling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007074 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
What is the maximum bandwidth and speed for the CG00707 cable?
This Cat6a cable is designed for 10GBase-T applications, supporting high-speed 10 Gigabit networking and bandwidth-intensive data/video distribution.
Is the CG00707 suitable for environments with high electromagnetic interference?
Yes, the shielded STP (SSTP) construction is specifically designed to protect high-speed connections from noise and EMI.
What is the wiring scheme used for this patch cable?
This C2G patch cable utilizes the 568B wiring scheme.
What tools are required to install this cable?
This is a pre-terminated patch cable requiring no specific installation tools; it features snagless boots for easy connection to RJ-45 ports.
Does this cable meet industrial standards for Cat6a?
The CG00707 is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
