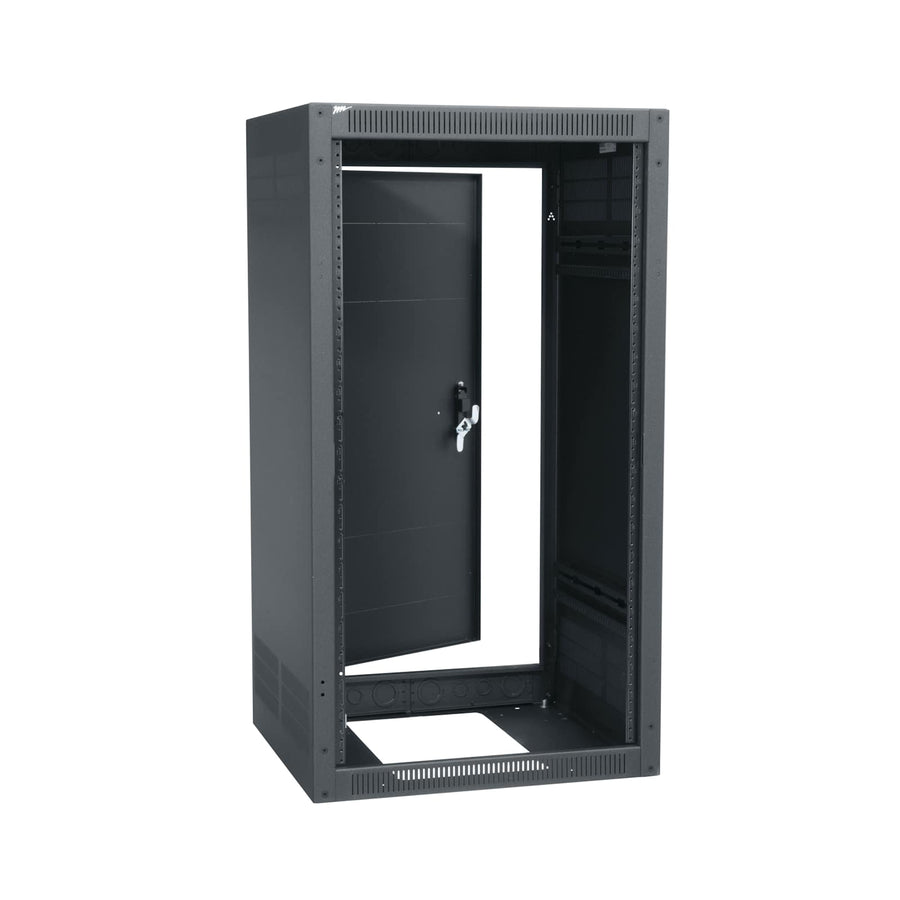

27 RU ERK Series Rack, 25 Inches Deep
27 RU floor-standing rack with a 25 inch depth, 2,500 lbs UL load capacity, and seismic rating
The ERK-2725 is an economical standalone floor-standing rack designed for professional AV environments requiring secure component housing. This 27 RU unit features a 25 in (63.5 cm) depth and a 22 in (55.9 cm) width, providing a substantial footprint for heavy equipment. The steel construction is fully welded for structural integrity and finished in a black wrinkle powder coat. For equipment organization, the frame includes slotted rackrail brackets and convenient lacing points. The standard front adjustable 10-32 threaded rackrails are numbered for rapid installation. This configuration is a Frame Only model that includes a key-locked standard rear door for secure access. It is TAA compliant and UL listed with a 2,500 lbs (1,134 kg) load capacity. For seismic protection in high-activity areas, this rack can be paired with ERK-Z4 brackets to achieve its 591 lbs (268.1 kg) seismic load capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 51.38 in (130.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 86.1 lbs (39.1 kg) |
| Rack Units | 27 RU |
| Shipping Weight | 118 lbs (53.5 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
All other specifications 15
| Usable Height | 47.38 in (120.4 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747006296 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
1 RU Fan Tray, 6 Fans, 414 CFM & 220 - 240VAC
IFTA-6$762.30
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40
27 RU Vented Front Door for ERK Racks
VFD-27$508.50
Questions about this part
Will the ERK-2725 fit my equipment depth?
The ERK-2725 has a 25 in (63.5 cm) total depth, providing a usable depth of 23.47 in (59.6 cm) for your components.
What is required to make this rack seismic rated?
To utilize the 591 lbs (268.1 kg) seismic load capacity, you must install the rack with ERK-Z4 brackets.
What accessories are compatible with the ERK-2725?
You can add components such as a CBS-ERK-25 Caster Base, a VFD-27 vented front door, or a UTR1 1 RU Mounting Rackshelf.
Is the ERK-2725 TAA compliant?
Yes, this rack is TAA compliant and is manufactured in the USA.
Does this rack include a front door?
This specific SKU is a Frame Only configuration with a rear door; front doors like the PFD-27 (Plexi) or VFD-27 (Vented) must be purchased separately.
