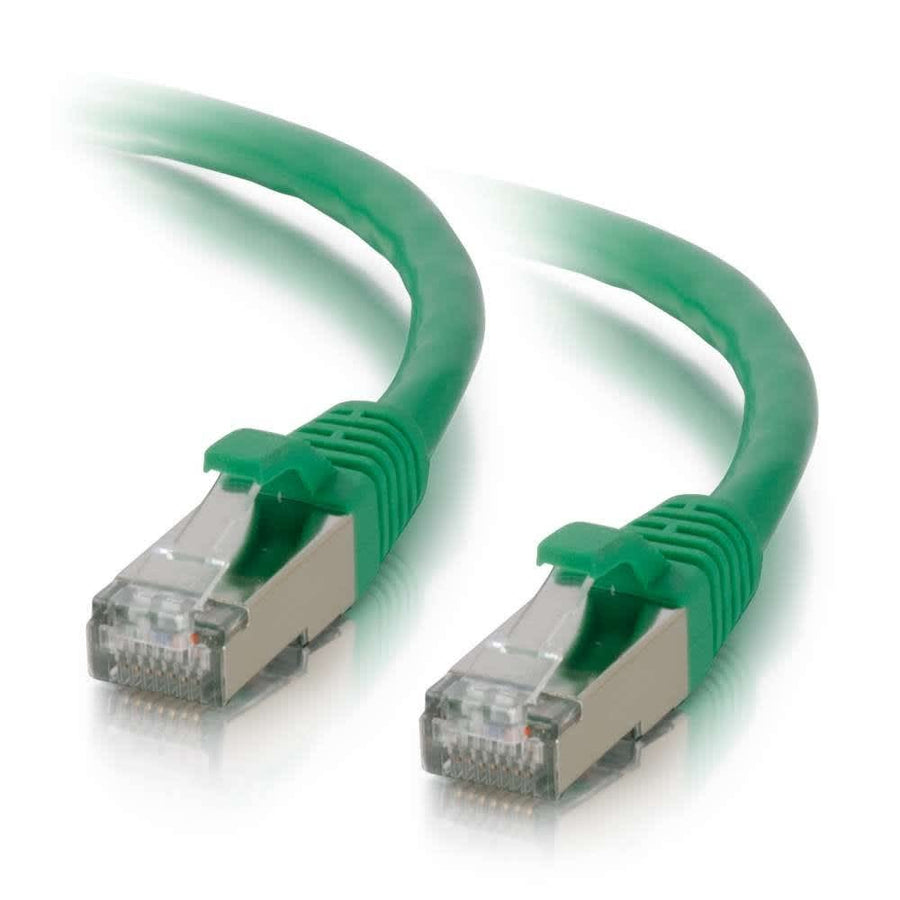

25ft (7.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
25ft (7.6m) Cat6 shielded STP snagless patch cable, stranded copper, T568B wiring, green finish
The CG00839 is a 25ft (7.6m) Cat6 shielded STP Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. Featuring a green PVC jacket and snagless, booted RJ-45 male connectors, this cable is engineered for voice, data, and video distribution in environments prone to interference. Each cable uses 26AWG stranded bare copper conductors to manage bandwidth-intensive applications while reducing impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, the individual pairs are bonded together to maintain consistent twist-spacing up to the termination point. This Cat6 component is fully tested to meet ANSI/TIA 568 C.2 requirements. The cable features a 0.24 in (6.2 mm) diameter and is rated for temperatures up to 75°C. For ease of installation and organization, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.73 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008392 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
25ft (7.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00822$36.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00839 cable fit my network requirements?
Yes, this Cat6 cable is fully tested to meet ANSI/TIA 568 C.2 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution.
Is the CG00839 cable compatible with shielded keystone jacks?
Yes, this STP cable is designed to work with shielded components, such as the CG35217 90° Cat6 RJ45 UTP Shielded Keystone Jack.
What is the wiring configuration for the CG00839 patch cable?
The CG00839 follows the T568B wiring scheme and uses 26AWG stranded bare copper conductors.
What is the difference between this and the CG00822 SKU?
The CG00839 is the green version of this 25ft snagless shielded cable, whereas the CG00822 is the black version.
What certification standards does this cable meet?
This cable is component tested to ANSI/TIA 568 C.2 standards and is compliant with CE, REACH, and RoHS.
