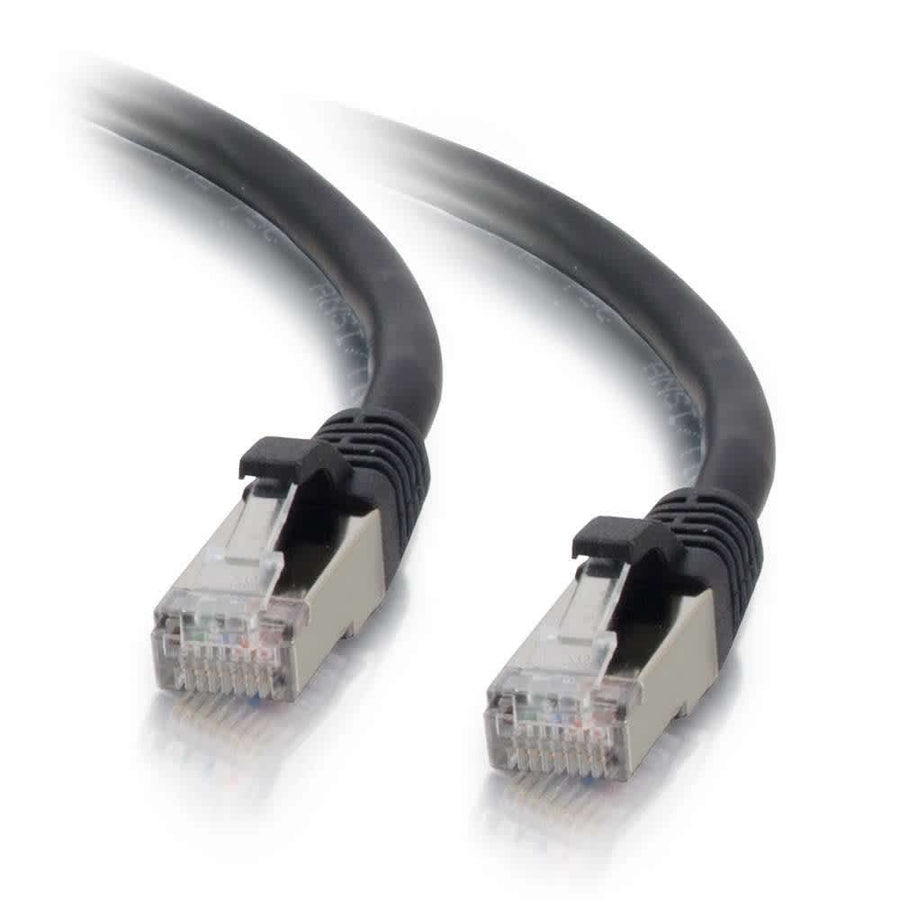

25ft (7.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
25ft Cat6 shielded STP patch cable, snagless boots, T568B wiring, and black PVC jacket
The C2G CG00822 is a 25ft (7.6m) Cat6 shielded STP patch cable designed to protect high-speed networks from electromagnetic interference and noise. This SSTP cable features stranded copper conductors with a 26AWG (7/0.16) wire gauge and FM-PE insulation. To ensure reliable performance in bandwidth-intensive applications, the cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction includes individual pairs bonded together to maintain twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT) and reduces structural return loss (SRL). This black patch cable uses a PVC jacket and PVC connector hoods with a snagless, booted design for added protection. It utilizes a T568B wiring scheme and is rated for temperatures up to 75°C. This cable is ideal for voice, data, and video distribution where shielding is critical for signal integrity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.72 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008224 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
25ft (7.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00805$36.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the C2G CG00822 cable?
This Cat6 patch cable uses the T568B wiring scheme.
Is this Cat6 cable suitable for high-interference environments?
Yes, the SSTP shielding and bonded individual pairs are designed to minimize Near-End Crosstalk (NEXT) and reduce structural return loss (SRL).
What is the jacket material and temperature rating of the CG00822?
The cable features a PVC jacket and is rated for temperatures up to 75°C.
Does this cable meet industry performance standards?
Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What other colors are available in this C2G series?
This series includes other colors like Blue (SKU: CG00805) to assist with network color-coding.
