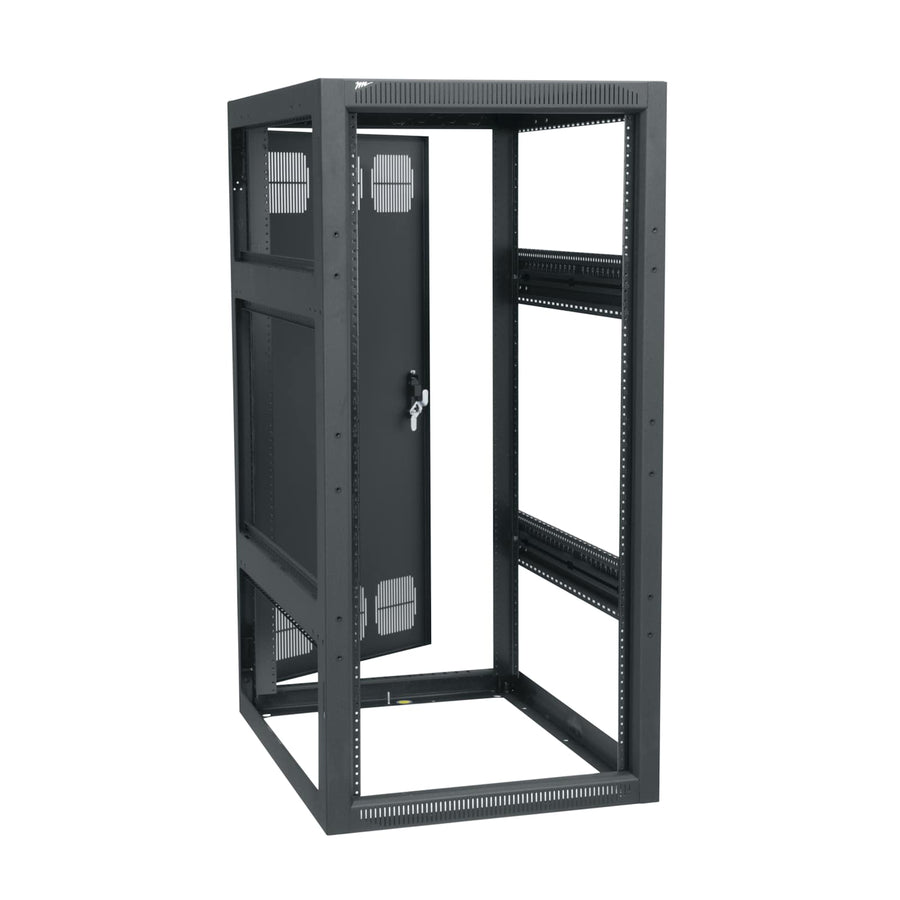

25 RU BGR Series Rack, 32 Inches Deep
25 RU floor-standing AV rack, 32 inches deep, seismic rated, TAA compliant, with Forward Compatible rails
The BGR-2532 is a 25 RU floor-standing AV rack from the Middle Atlantic BGR Series, designed with a 32 in (81.3 cm) depth and a 23 in (58.4 cm) width. This frame-only configuration is built from steel with a black wrinkle powder coat finish and features Forward Compatible rails. These adjustable front and rear rackrails include numbered spaces and side lacing to accommodate Forward vertical cable management products. This series is compatible with the Lever Lock™ system, allowing for tool-free installation of cable management accessories. The unit includes a standard vented rack rear door that accepts optional fans or a brush grommet rear door kit for simplified large-scale cable passage. This rack is highly versatile for professional environments, offering a UL Load Capacity of 3000 lbs (1,360.8 kg) and a Seismic Load Capacity of 1175 lbs (533 kg). The 23" width provides extra clearance for front-to-back cable management and mounting small devices using the Lever Lock™ system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 47.88 in (121.6 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 25 RU |
| Shipping Weight | 124 lbs (56.3 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 43.88 in (111.5 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747140150 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Textured
QTFP-2$243.00
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
FTA Series 4 Inch DC Fan
FT-FAN$90.00
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
25 RU Side Panels for 32 Inch Deep BGR Racks
BSPN-25-32$618.30
Leveling Feet Heavy Duty
LF-HD$47.70
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
Questions about this part
Is the BGR-2532 suitable for seismic applications?
Yes, this rack is seismic rated with a Seismic Load Capacity of 1175 lbs (533 kg) and holds a UL Listed certification.
What accessories are needed to complete this rack configuration?
This SKU is a frame-only configuration. You may need to add items such as BGR Series Side Panels (BSPN-25-32), a Caster Base (CBS-BGR), or Leveling Feet (LF-HD) depending on your installation requirements.
What are the cable management capabilities of the BGR series?
The Forward rackrails feature side lacing for internal cabling and are compatible with Lever Lock™ tool-free accessories and Forward vertical cable management products.
Can I customize the cooling and cable entry on the rear door?
Yes, the included vented rear door accepts optional fans, and you can also use a brush grommet rear door kit to facilitate large cable passages.
Does this rack meet TAA compliance for government contracts?
Yes, the BGR-2532 is TAA compliant and is manufactured in the USA.
