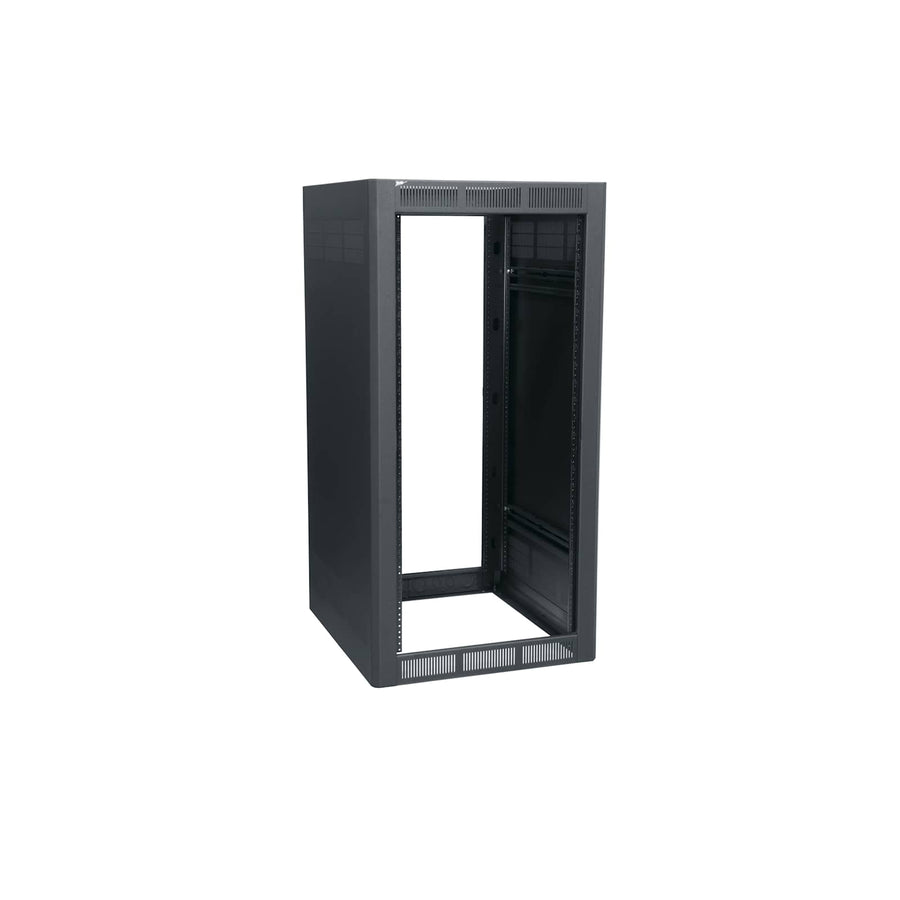

24 RU WRK-SA Series 24-1/4 Inch Wide Rack, 32 Inches Deep without Rear Door
24 RU floor-standing seismic rack, 32" deep, featuring 24.25" overall width and fixed solid sides for security and airflow control
The Middle Atlantic WRK-24SA-32LRD is a 24 RU floor-standing rack from the WRK-SA Series, designed specifically to handle demanding installation environments. With an overall width of 24.25" (61.6 cm), this rack provides extra space for side cabling or increased cooling airflow compared to standard width footprints. This specific model is 32.63 in (82.9 cm) deep with a usable depth of 30.75 in (78.1 cm), making it an ideal choice for housing equipment with thick cable bundles. For high-security or specialized thermal management applications, this unit features fixed solid sides to control airflow and increase physical security. The construction is fully welded for maximum strength, supporting a weight capacity of 10,000 lbs (4535.9 kg) and a UL Load Capacity of 2,500 lbs (1,134 kg). The 24 RU frame is equipped with standard front and rear adjustable 10-32 threaded rackrails with numbered spaces for precise equipment placement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32.63 in (82.9 cm) |
| Height | 48.13 in (122.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 140 lbs (63.5 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 30.75 in (78.1 cm) |
| Usable Height | 42 in (106.7 cm) |
All other specifications 11
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 24.25 in (61.6 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747024443 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 900 lbs (408.2 kg) |
Resources
You'll need these with it
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
24 RU Vented Front Door for DWR, SR, WRK and MRK Racks, 64% Open
LVFD-24$549.00
Caster Base for 32 Inch Deep WRK Series
CBS-WRK-32$405.00

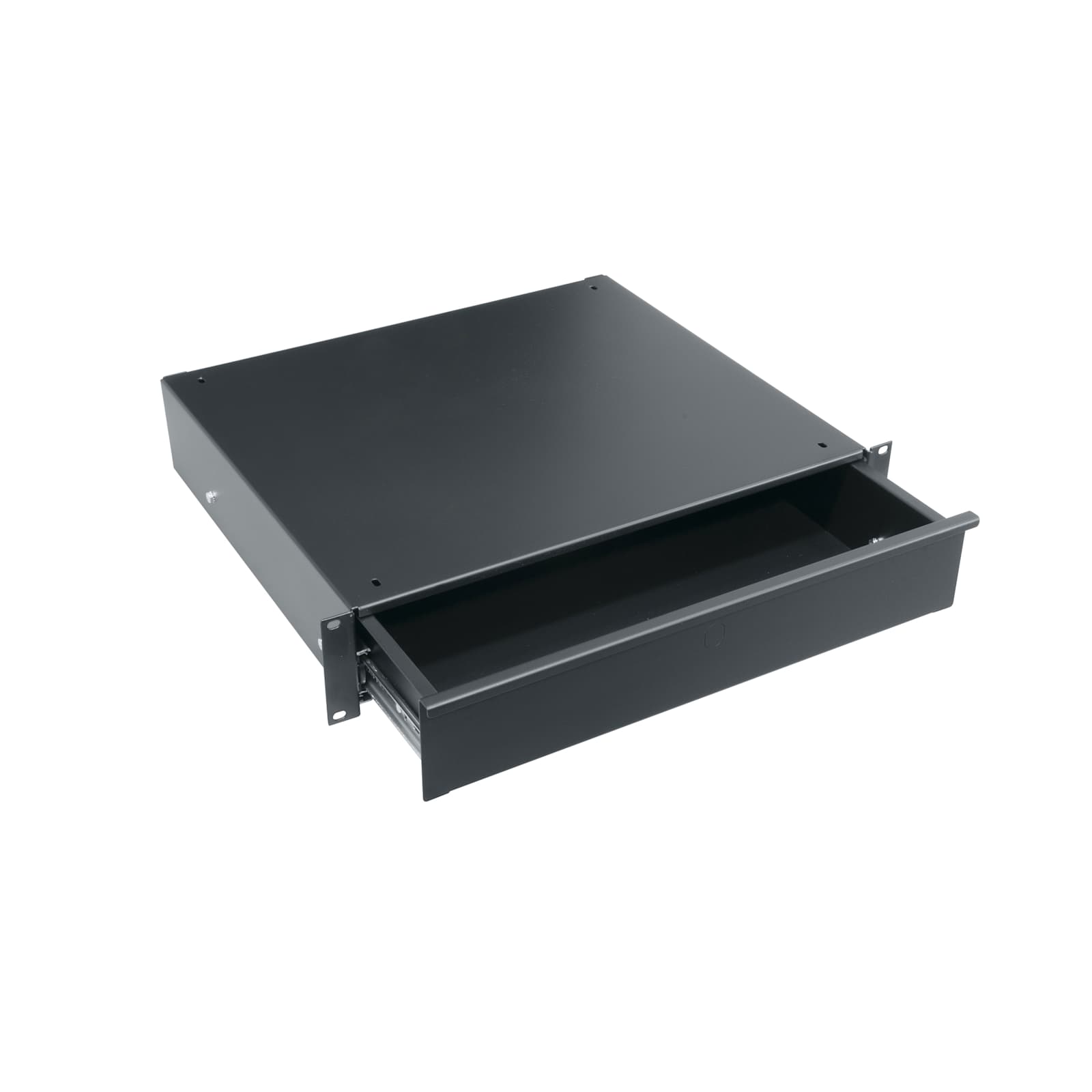

2 RU Utility Rack Drawer
UD2$216.90
Caster Base for 32 Inch Deep WRK Series, Fine Floor
CBS-WRK-32R$571.50

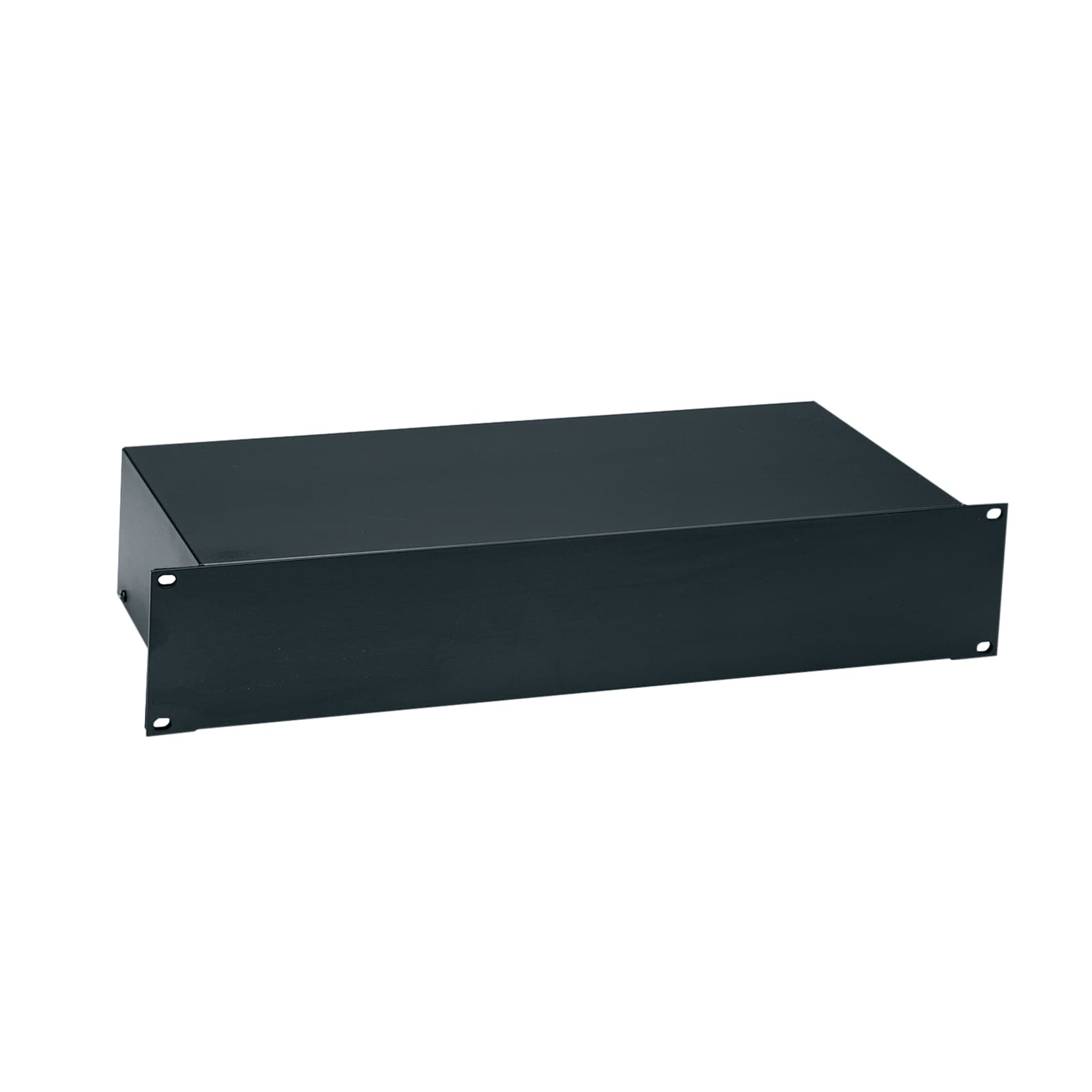

2 RU Rackmount Storage Chassis, 6 Inches Deep
EC-2$113.40
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Is the WRK-24SA-32LRD suitable for seismic zones?
Yes, this rack is seismic rated and meets ASCE 7-10 standards with a seismic load capacity of 900 lbs (408.2 kg).
What is the usable depth for mounting equipment in the WRK-24SA-32LRD?
The rack has an overall depth of 32.63 in (82.9 cm), providing a usable equipment depth of 30.75 in (78.1 cm).
Does this rack meet TAA compliance requirements?
Yes, the WRK-24SA-32LRD is TAA compliant and is manufactured in the USA.
What accessories are compatible with this 24 RU rack?
Compatible accessories include the CBS-WRK-32 caster base, LVFD-24 vented front doors, and UD2 utility drawers.
How does the WRK-SA series differ from standard racks?
The WRK-SA series features a wider 24.25 in (61.6 cm) footprint to accommodate thicker cable bundles and improve airflow.
