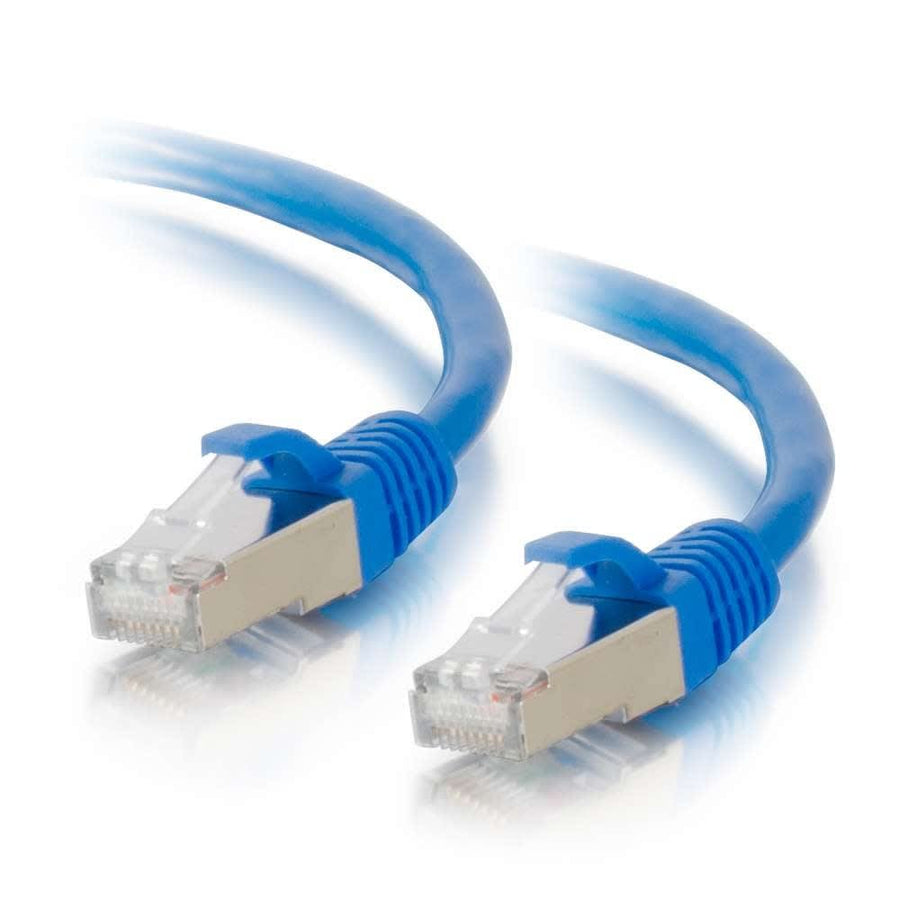

20ft (6.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
20ft Cat6a shielded STP patch cable in blue, featuring snagless boots and 26AWG stranded copper conductors
The C2G CG00685 is a 20ft (6.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in blue, designed specifically for high-speed 10GBase-T environments. This cable is engineered to protect critical network connections from electromagnetic interference and noise, making it ideal for use with network adapters, switches, routers, hubs, and patch panels. Constructed with 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation, the cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The design includes individual pair bonding to maintain twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT) and reduces structural return loss (SRL). For ease of identification in high-density installations, each cable features an individual length label. This shielded SSTP cable uses a 568B wiring scheme and is built with PVC jacket material and PVC connector hoods, ensuring reliable performance for bandwidth-intensive voice, data, and video distribution applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006855 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00719$36.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00685 cable support 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, supporting high-speed 10 Gigabit network connections.
What is the wiring scheme for the C2G CG00685?
The CG00685 utilizes a standard 568B wiring scheme for all connections.
What tools are required for the installation of this patch cable?
No specific tools are required for installation as these are factory-terminated RJ-45 male to RJ-45 male patch cables.
What is the difference between this and the black version?
The CG00685 is the blue version; a black version is available under SKU CG00719.
Is this cable suitable for high-interference environments?
Yes, the shielded STP (SSTP) construction helps protect against noise and electromagnetic interference in bandwidth-intensive applications.
