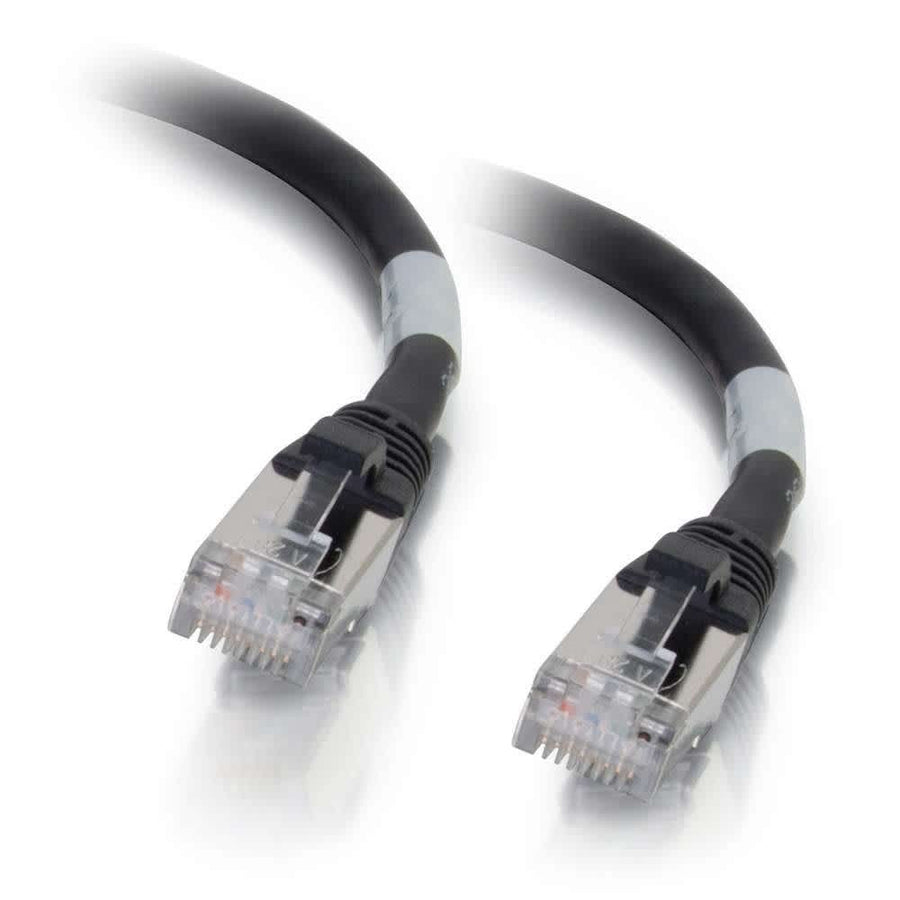

20ft (6.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
20ft shielded Cat6a patch cable, snagless design, black finish, ideal for 10GBase-T high-speed network applications
The C2G CG00719 is a 20 ft (6.1 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to protect 10GBase-T equipment from electromagnetic interference and noise. This black patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive voice, data, and video distribution. Each cable features a stranded copper conductor with 26AWG (7/0.16) bare copper and FMPE (Foam Polyethylene) insulation. The design incorporates bonded pairs to maintain twist-spacing through the termination point, which significantly reduces Near-End Crosstalk (NEXT), impedance, and structural return loss (SRL). Each cable is equipped with two RJ-45 Male connectors featuring PVC hood materials and a snagless, booted design to prevent accidental disconnection. This STP cable is suitable for use with network adapters, hubs, switches, routers, and patch panels. It is rated for operating temperatures between -4° - 176°F (-20° - 80°C) and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.62 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007197 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00685$36.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00719 compatible with 10GBase-T networks?
Yes, this Cat6a patch cable is specifically designed for 10GBase-T ports and equipment like switches, routers, and network adapters to protect high-speed connections from noise.
What is the wiring scheme for this Cat6a cable?
The CG00719 uses the 568B wiring scheme for all RJ-45 terminations.
Does this cable meet industrial standards for performance?
This cable is fully tested and meets the ANSI/TIA 568 C.2 Cat6a component requirements for reliable data and video distribution.
What is the bend radius for the CG00719 cable?
The minimum bend radius for this 20 ft (6.1 m) cable is 1.95 in (49.6 mm).
Can this cable be used in high-interference environments?
Yes, the shielded STP (SSTP) construction is designed to minimize Near-End Crosstalk (NEXT) and protect against electromagnetic interference.
