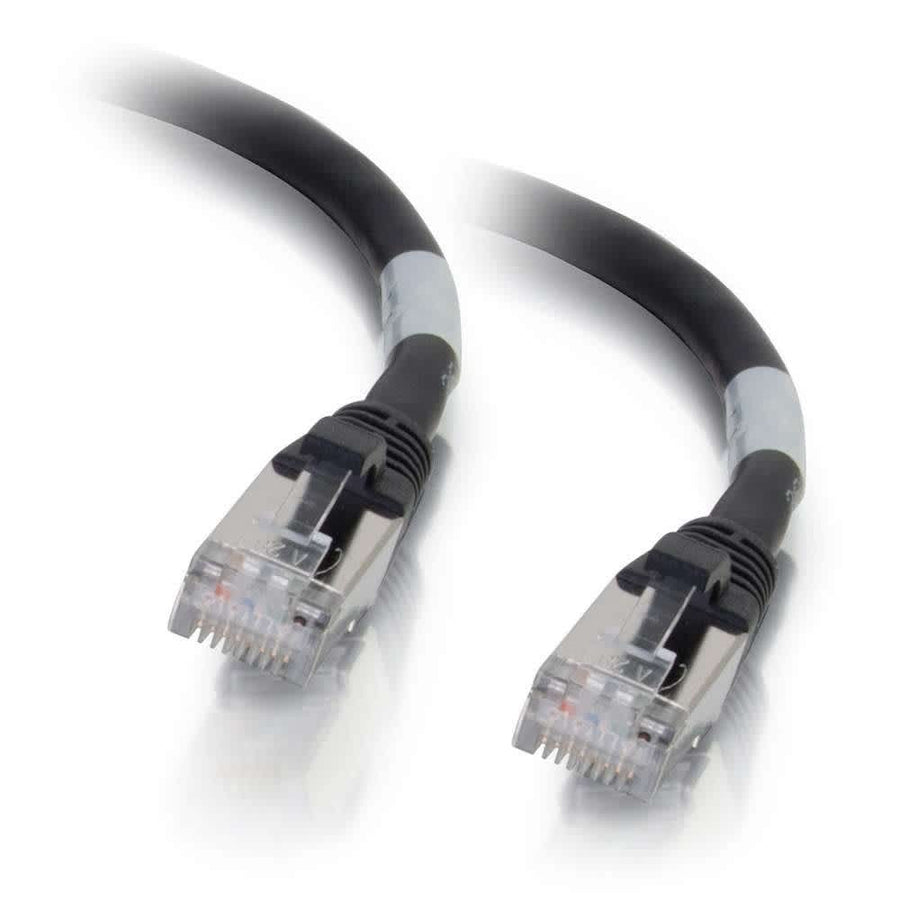

1ft (0.3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat6a patch cable, 1 ft (0.3 m) length, black finish, snagless boots for high-speed 10GBase-T connectivity
The C2G CG00706 is a 1 ft (0.3 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-speed 10GBase-T network environments. This black patch cable is engineered to protect sensitive 10 Gigabit connections from electromagnetic interference and noise through its shielded STP construction. It is suitable for connecting high-bandwidth hardware including network adapters, hubs, switches, routers, and patch panels. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for voice, data, and video distribution. The construction features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to minimize Near-End Crosstalk (NEXT) levels. Each pair is bonded together to maintain twist-spacing through the termination point, which helps reduce impedance and structural return loss (SRL) in bandwidth-intensive applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007067 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this C2G CG00706 cable work for 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, such as switches, routers, and network adapters.
What is the wiring scheme for the CG00706 cable?
The CG00706 is a stranded SSTP cable utilizing the 568B wiring scheme.
Is this cable suitable for high-interference environments?
Yes, the shielded STP design is built to protect high-speed connections from noise and electromagnetic interference.
What tools are required for installation?
The CG00706 is a pre-terminated patch cable; no specialized installation tools are required for use.
What is the operating temperature range for this Cat6a cable?
The cable is rated for operating temperatures between -4° - 176°F (-20° - 80°C).
