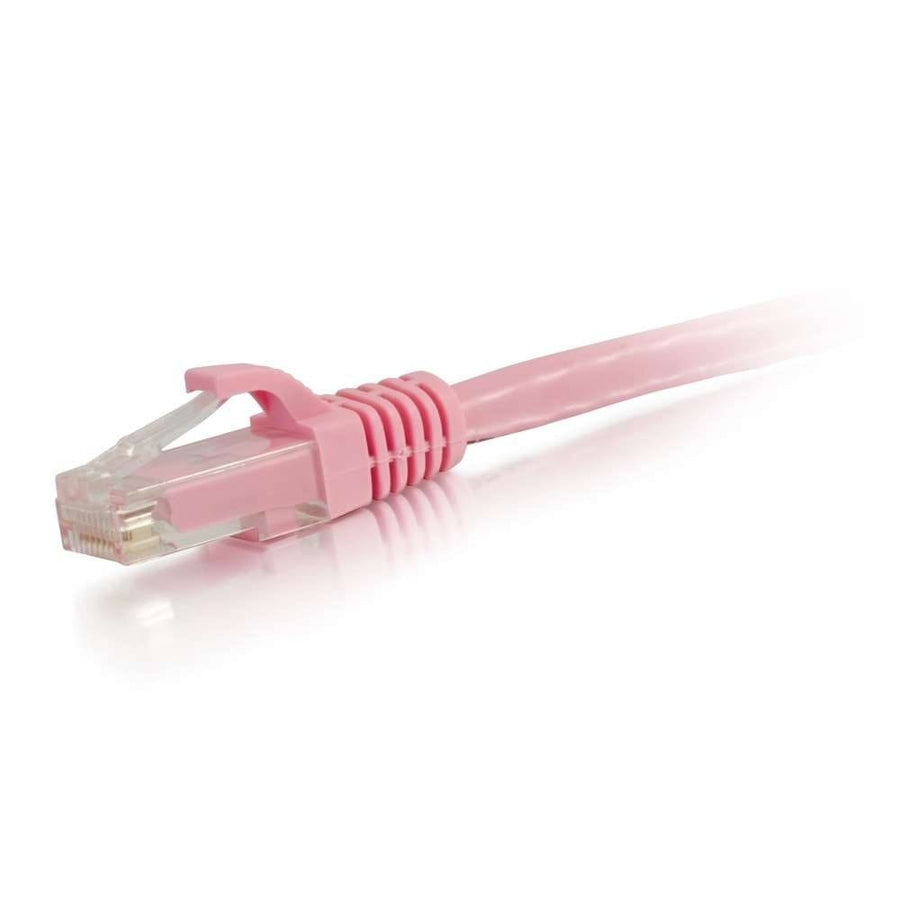

1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
Pink Cat6 Snagless UTP Ethernet patch cable, 1ft (0.3m) length with RJ-45 Male connectors
The C2G CG04043 is a 1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable finished in pink. This cable is designed for short-distance connections within high-density network environments where cable management and strain relief are essential. It features a snagless design with a PVC connector hood to protect the latch from damage during installation and removal. The cable is constructed with 24 AWG stranded copper conductors and utilizes a T568B wiring scheme to ensure standard compliance. With a cable diameter of 0.24 in (6.2 mm) and a PVC jacket, this UTP cable provides reliable connectivity for Category 6 performance applications. This specific pink variant is part of a larger series of Cat6 Snagless Patch Cables that offer various color and length options to suit specific installation aesthetics and requirements. It is a reliable choice for connecting network hardware, patch panels, or interface modules in professional AV and IT installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040439 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG27150$5.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length and color of the CG04043?
The CG04043 is a 1ft (0.3m) cable in pink. Other colors in this series include Black, Blue, Gray, Green, Orange, Purple, and Red.
Will this cable work with my Cat6 patch panel?
Yes, this Cat6 patch cable is compatible with items such as the CG27150 black variant, the CG39002 LANsmart TDR Cable Tester, and various Cat6 rack mount patch panels.
What wiring scheme does this patch cable use?
The CG04043 uses the T568B wiring scheme and features stranded copper conductors with a 24 AWG wire gauge.
What is the construction of the connector and jacket?
This cable features RJ-45 Male connectors with PVC hoods and a snagless design, paired with a PVC jacket and an unshielded (UTP) cable type.
Is there a warranty for this C2G cable?
This product is covered by a Lifetime warranty.
