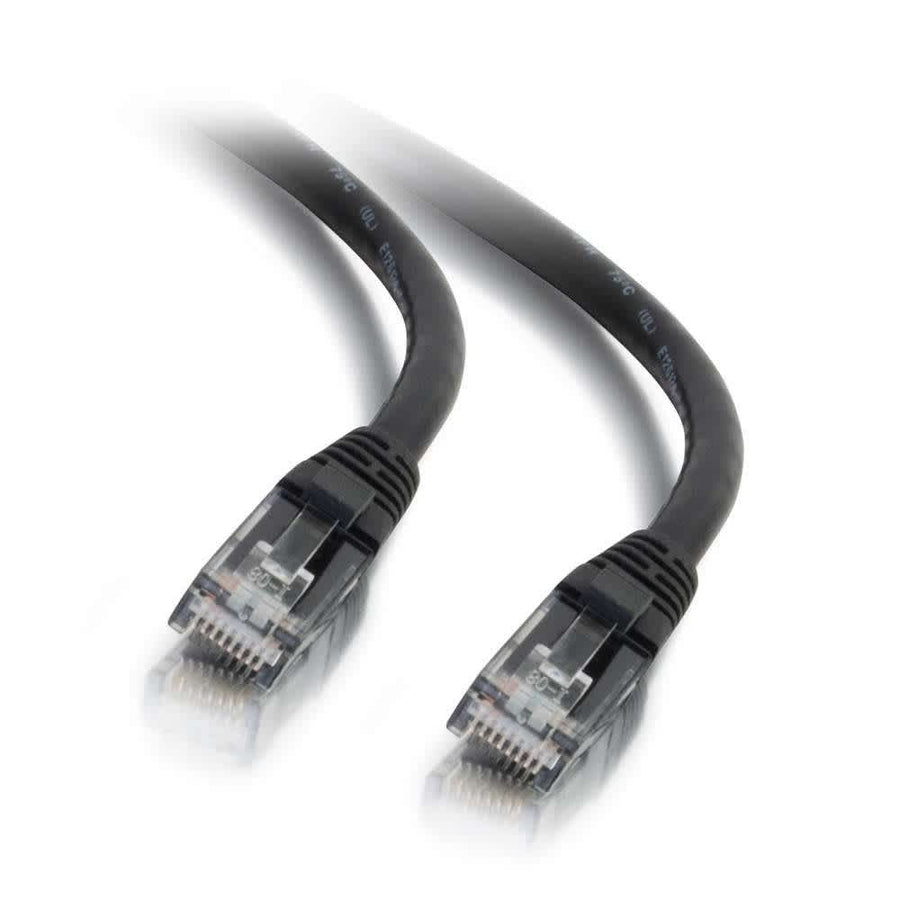

1ft (0.3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
1ft (0.3m) Cat6 unshielded UTP Ethernet patch cable, black finish, with snagless booted RJ-45 male connectors
The C2G CG27150 is a 1ft (0.3m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable designed for high-performance connectivity in space-constrained environments. This black cable features a T568B wiring scheme and uses stranded copper conductors with a 24 AWG wire gauge. The jacket is constructed from durable PVC, and the cable maintains a 0.24 in (6.2 mm) diameter. Each end is terminated with an RJ-45 male connector housed within a snagless, booted PVC hood to protect the locking tabs from damage during installation and handling. This Cat6 cable is built to meet Category 6 performance applications, supporting electrical characteristics such as a maximum propagation delay of 545ns/100m and a maximum delay skew of 45ns/100m. This product carries NDAA 889, REACH, and RoHS compliance, and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG27150 Cat6 compliant?
Yes, this is a Cat6 performance application cable designed to meet Category 6 standards.
What is the wiring scheme for the CG27150?
The CG27150 utilizes the T568B wiring scheme for its RJ-45 male connectors.
What are the dimensions of the CG27150 patch cable?
The cable has a length of 1 ft (0.3 m) and a diameter of 0.24 in (6.2 mm).
Does this cable require additional components to work with a patch panel?
The CG27150 is a patch cable used to connect devices to components like the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6).
How is the cable protected from damage during installation?
This cable features snagless, booted RJ-45 male connectors to protect the release tabs from snapping.
