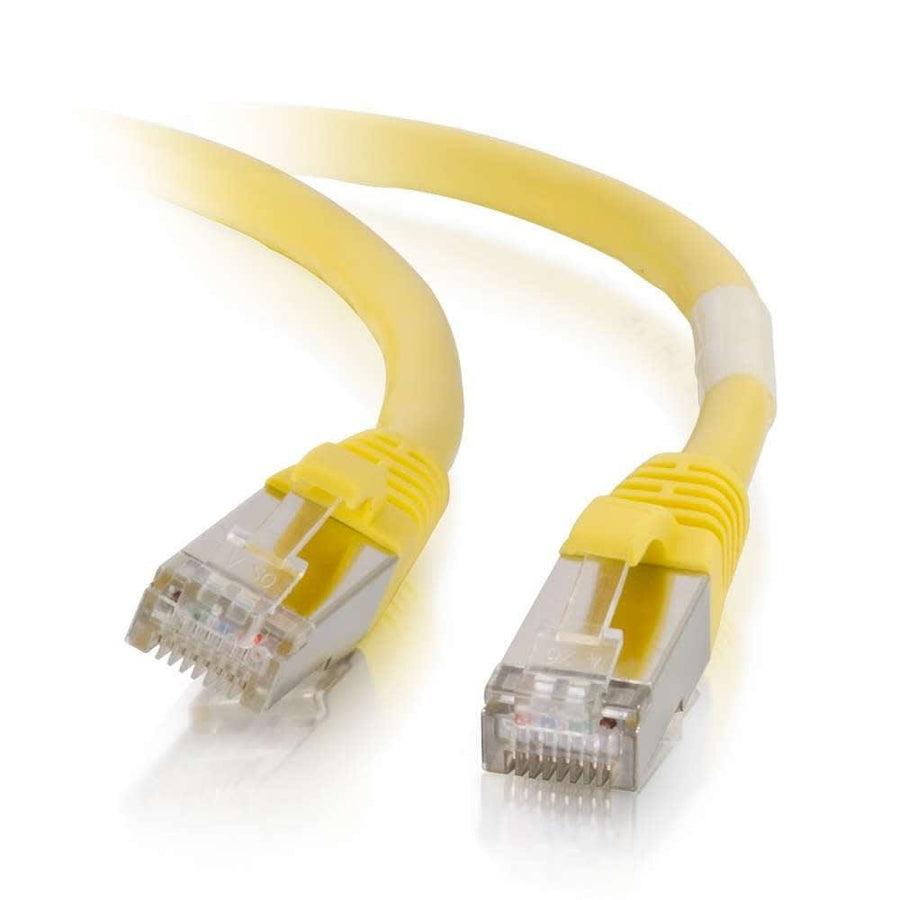

1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
1ft (0.3m) Cat6 shielded STP patch cable in yellow, featuring snagless boots and 26AWG stranded copper conductors
The C2G CG00859 is a 1ft (0.3m) Cat6 shielded STP Ethernet patch cable designed to protect high-speed networks from electromagnetic interference and noise. This yellow cable utilizes a stranded SSTP construction with 26AWG bare copper conductors to handle bandwidth-intensive applications for voice, data, and video distribution. Each individual pair is bonded together to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring performance in demanding environments. This patch cable features snagless, booted RJ-45 male connectors with PVC hoods for added protection. The yellow jacket is made of PVC and is rated for temperatures up to 75°C. This SKU is part of a series available in various colors and lengths, including the black CG00808 variant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008590 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00808$8.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum temperature rating for the CG00859 cable?
The cable has a temperature rating of 75°C.
Does the CG00859 meet industry standards for performance?
Yes, this Cat6 patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the wiring configuration for this patch cable?
The CG00859 uses the T568B wiring scheme.
Is this cable suitable for environments with high interference?
Yes, the shielded STP design is intended to protect high-speed networks from noise and electromagnetic interference.
What are the physical dimensions of this cable?
This cable is 1 ft (0.3 m) in length with a cable diameter of 0.24 in (6.2 mm).
