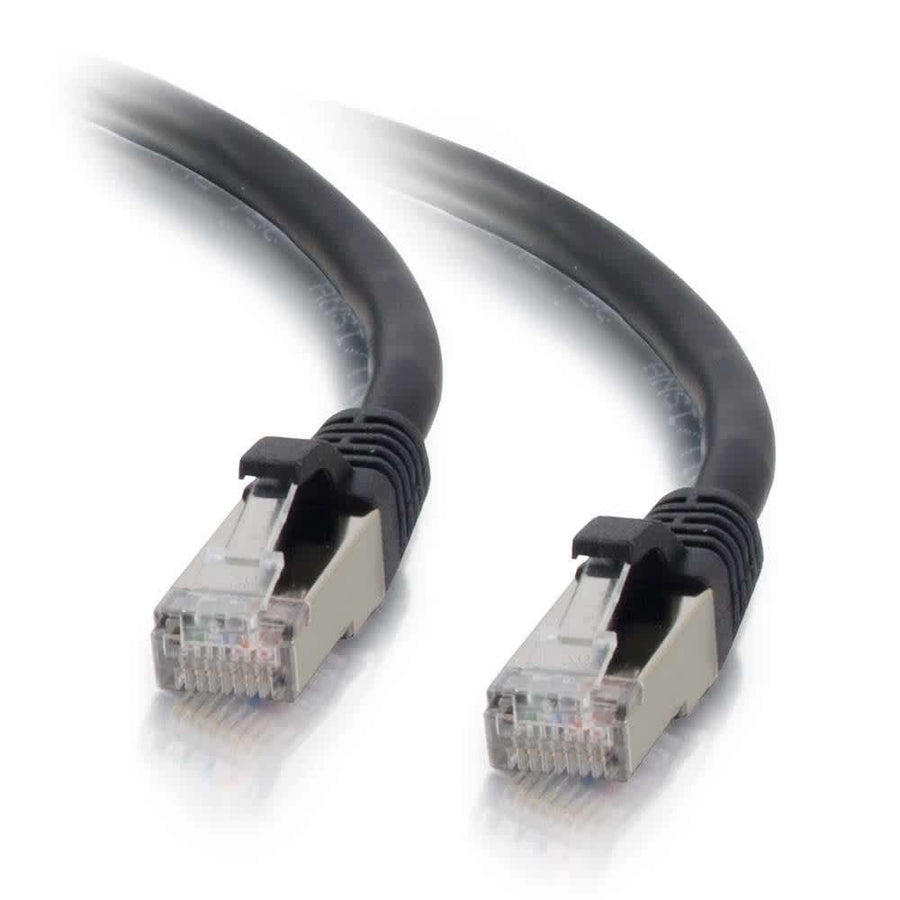

1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
1ft Cat6 shielded STP patch cable, black, with snagless boots and 26AWG stranded copper conductors
The C2G CG00808 is a 1ft (0.3m) Cat6 snagless shielded STP ethernet network patch cable designed to protect high-speed networks from electromagnetic interference and noise. This black patch cable is ideal for voice, data, and video distribution where bandwidth-intensive applications require minimized impedance and structural return loss (SRL). It features 26AWG (7/0.16) bare copper stranded conductors and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain twist-spacing through the termination point. The cable features a PVC jacket and hood material, with a 0.24 in (6.2 mm) diameter. Each cable includes an individual length label for easy identification in dense rack environments. This STP cable uses a T568B wiring scheme and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008088 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6 cable work for high-speed data applications?
Yes, this STP cable is designed to reduce impedance and structural return loss (SRL) for bandwidth-intensive voice, data, and video distribution.
What is the difference between this and the blue version?
This SKU is the black version (CG00808); the blue version is available as SKU CG00791.
Is this cable suitable for high-interference environments?
Yes, the shielded (STP) design and bonded pair twist-spacing help minimize Near-End Crosstalk (NEXT) and protect against electromagnetic interference.
What testing standards does this patch cable meet?
The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What do I need to test this cable on a job site?
Professional testers such as the LANtest Pro Remote Network Cable Tester with Tone and Probe or the SOHOTest-E™ Residential Cable Tester can be used to verify continuity and performance.
