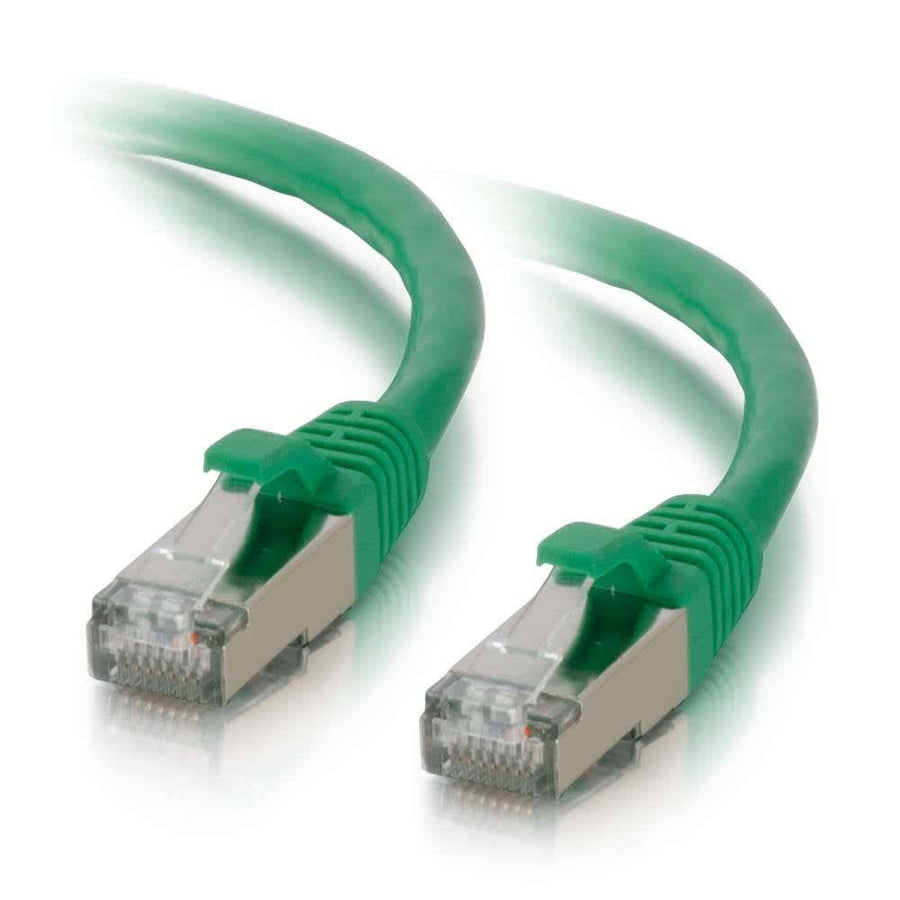

1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
1ft (0.3m) Cat6 shielded STP patch cable, 26AWG stranded copper, green finish
The C2G CG00825 is a 1ft (0.3m) Cat6 shielded STP Ethernet network patch cable designed for high-speed data distribution. This green cable utilizes stranded SSTP construction to handle bandwidth-intensive applications for voice, data, and video while reducing impedance and structural return loss (SRL). Each cable features 26AWG (7/0.16) bare copper conductors with FM-PE insulation and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The design includes hooded, snagless RJ-45 male connectors to minimize Near-End Crosstalk (NEXT) levels. Each cable is manufactured with a PVC jacket and connector hood material, ensuring durability in standard environments. For easy network organization, this cable features an individual length label on each unit. This SKU is part of a series with 18 different length options and 9 color choices, including the black CG00808 variant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008255 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
1ft (0.3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00808$8.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for high-bandwidth data applications?
Yes, the CG00825 is designed for voice, data, and video distribution, reducing impedance and structural return loss (SRL) for bandwidth-intensive tasks.
Is the CG00825 snagless or does it require a tool for installation?
The CG00825 features snagless, hooded RJ-45 male connectors, which protect the release tabs during installation in high-density environments.
What is the wiring scheme for this patch cable?
The CG00825 uses the T568B wiring scheme and features 4-pair 26AWG stranded bare copper conductors.
Does this cable meet Cat6 component standards?
Yes, each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements to ensure reliable performance.
Can I find this same cable in a different color?
Yes, this green cable is part of a series available in 9 colors, including black (SKU: CG00808), white, blue, and orange.
