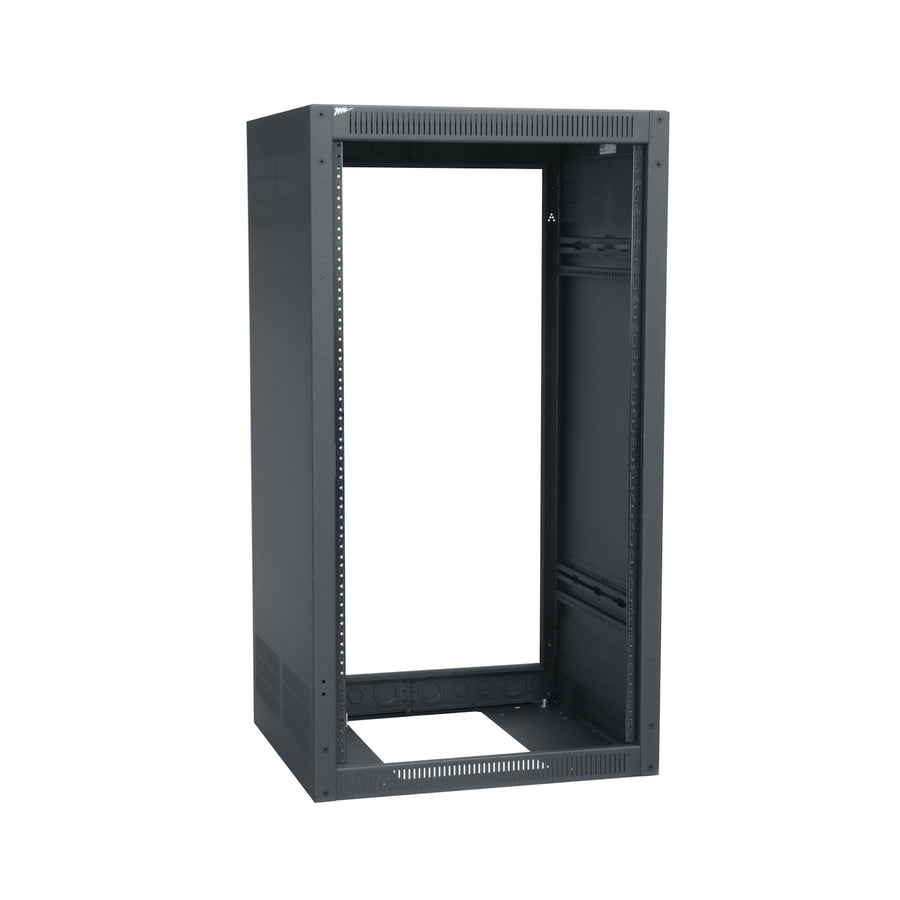

18 RU ERK Series Rack, 28 Inches Deep without Rear Door
18 RU floor-standing rack, 28 inches deep, with 2500 lbs UL load capacity and seismic rating
The Middle Atlantic ERK-1828LRD is an 18 RU floor-standing rack designed for robust, economical equipment housing. This frame-only configuration features a 28 in (71.1 cm) depth and a 22 in (55.9 cm) width, providing a usable depth of 26.47 in (67.2 cm) and a usable height of 31.63 in (80.3 cm). Built from steel with a black wrinkle powder coat finish, the unit features a fully welded construction for maximum strength. For thermal management, the rack sides include both top and bottom venting. Cable management is simplified via convenient lacing points and slotted rackrail brackets. The front adjustable 10-32 threaded rackrails include numbered spaces for rapid equipment deployment. This seismic-rated rack is UL Listed in the US and Canada with a 2500 lbs (1,134 kg) load capacity and a seismic load capacity of 680 lbs (308.4 kg). For high-security or multi-bay thermal control, these units can be ganged together to create partitioned installations. This TAA compliant, USA-made frame is ideal for professional AV and IT deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 35.63 in (90.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 66.1 lbs (30 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 98 lbs (44.5 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 in (67.2 cm) |
All other specifications 15
| Usable Height | 31.63 in (80.3 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747213540 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 680 lbs (308.4 kg) |
Resources
You'll need these with it
18 RU Plexi Front Door for DWR and ERK Racks
PFD-18$486.90
18 RU Vented Front Door for DWR and ERK Racks, 64% Open
LVFD-18$501.30
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
18 RU Solid Front Door for DWR and ERK Racks
FD-18$281.70

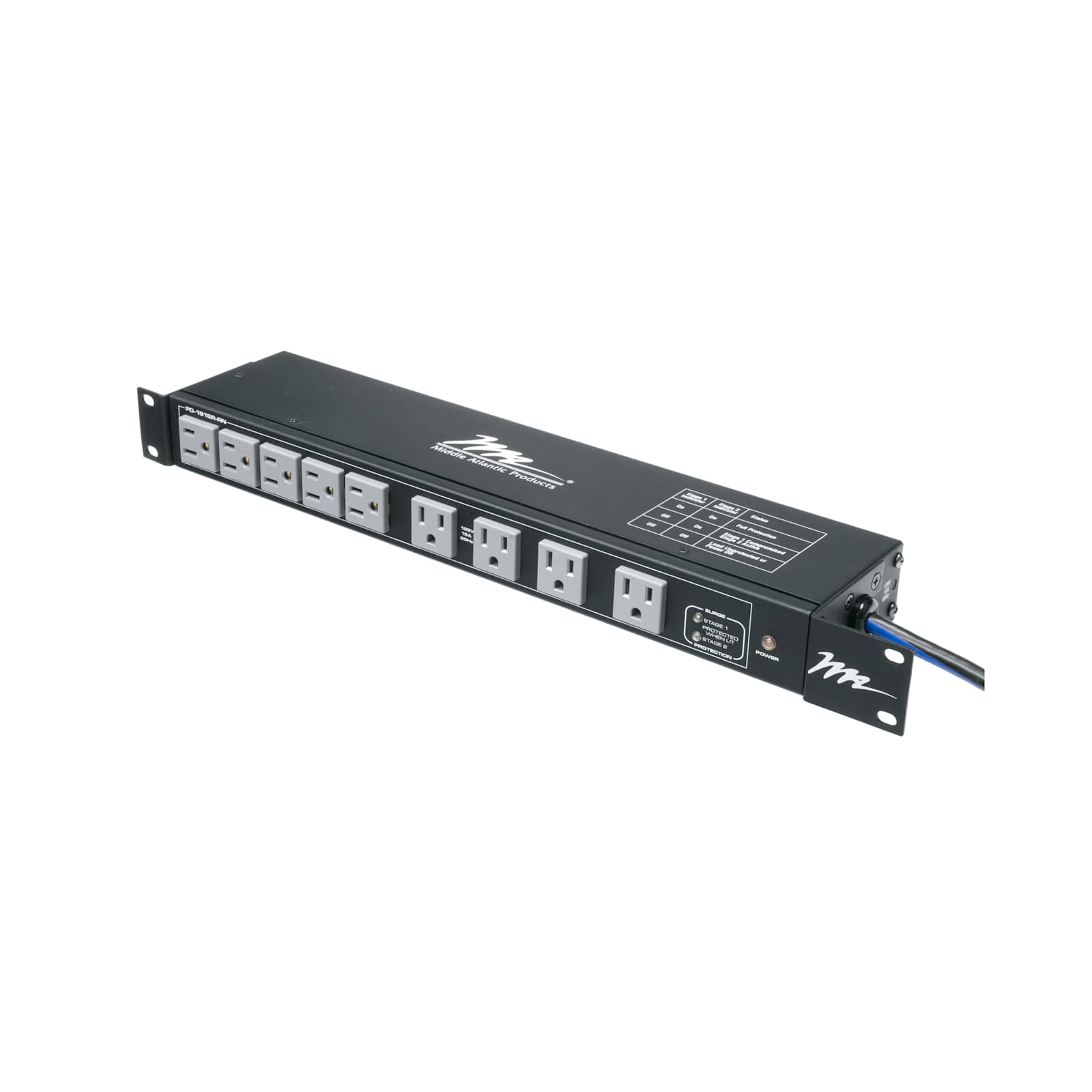

Multi-Mount PDU, 18 Outlet, 15A & 2-Stage Surge
PD-1815R-RN$387.00
18 RU Cable-Entry Rear Door for ERK Racks
ERK-RDC18$282.60
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
PDX-620C$443.70
Questions about this part
Is the ERK-1828LRD seismically rated?
Yes, this rack is seismic rated with a seismic load capacity of 680 lbs (308.4 kg) when installed with ERK-Z4 brackets.
What is the usable depth for equipment in this rack?
The ERK-1828LRD has a total depth of 28 in (71.1 cm) and provides a usable depth of 26.47 in (67.2 cm).
What accessories can be used with the ERK-1828LRD?
You can add components like the ERK-RDC18 cable-entry rear door, PFD-18 Plexi front doors, or various NEXSYS™ PDUs for power management.
Can I gang multiple ERK Series racks together?
Yes, these racks can be ganged to create partitioned multi-bay installations for enhanced security and thermal management control.
Does this rack include doors?
No, the ERK-1828LRD is a frame-only configuration and does not include a rear door.
