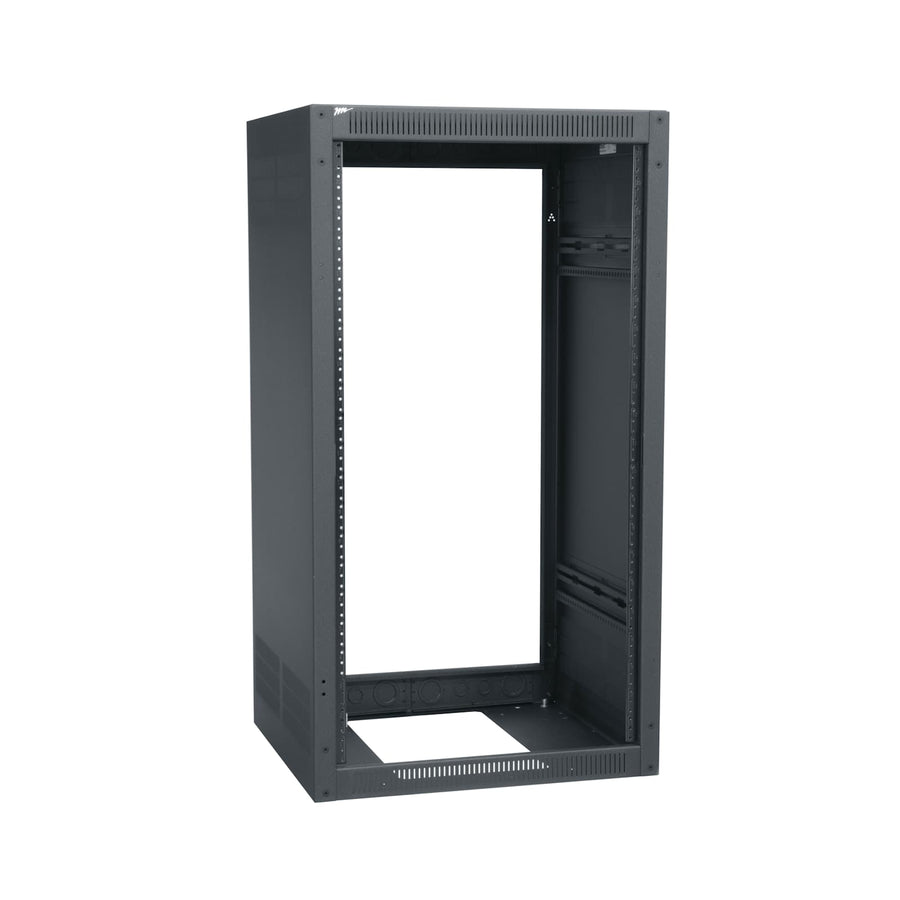

18 RU ERK Series Rack, 25 Inches Deep without Rear Door
18 RU floor standing rack, 25" deep, seismic rated, with solid sides and no rear door
The ERK-1825LRD is an 18 RU standalone floor standing rack designed for efficient equipment organization and thermal management. This 25" deep frame is built with fully welded steel construction for maximum structural integrity and features a Black Wrinkle Powder Coat finish. For installers needing customized ventilation, the rack sides include both top and bottom venting. The front features standard adjustable 10-32 threaded rackrails with numbered spaces for precise component placement. This model is provided as a frame only and does not include a rear door. For enhanced thermal control or security, these units can be ganged together to create partitioned multi-bay installations. This series is seismically rated with a seismic load capacity of 591 lbs (268.1 kg) when installed with ERK-Z4 brackets. The unit is UL Listed with a 2,500 lbs (1,134 kg) load capacity and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 35.63 in (90.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 58.1 lbs (26.4 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 90 lbs (40.8 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
All other specifications 15
| Usable Height | 31.63 in (80.3 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747006173 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, 27dB
UQFP-4$630.90
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented - 4 Piece
U2V-4$358.20
18 RU Plexi Front Door for DWR and ERK Racks
PFD-18$486.90
18 RU Vented Front Door for DWR and ERK Racks, 64% Open
LVFD-18$501.30
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90
Rackmount Power/Cooling, 11 Outlet, 15A & 2-Stage Surge
PDCOOL-1115R$846.00
Rackmount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815R-PL$234.00
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
13 RU Lace Strip 4.75 Inch Wide with Tie Posts - 6 Pieces
LACE-13-OWP$207.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Will the ERK-1825LRD fit my 25 inch deep equipment?
Yes, this rack has a 25 in (63.5 cm) depth and provides a usable depth of 23.47 in (59.6 cm) for your components.
What is required to make this rack seismic rated?
To achieve seismic rating, this frame must be installed using ERK-Z4 brackets, providing a seismic load capacity of 591 lbs (268.1 kg).
What do I need to buy to add doors to this frame?
Since this SKU is a frame-only configuration without a rear door, you can add a 18 RU Vented Front Door (LVFD-18) or a 18 RU Plexi Front Door (PFD-18) for enclosure.
Can I add wheels to the ERK-1825LRD?
Yes, you can install a CBS-ERK-25 Caster Base designed for 25 inch deep ERK Series racks which supports up to 1,300 pounds.
How much weight can this rack support in a standard installation?
The ERK-1825LRD is UL Listed with a total load capacity of 2,500 lbs (1,134 kg).
