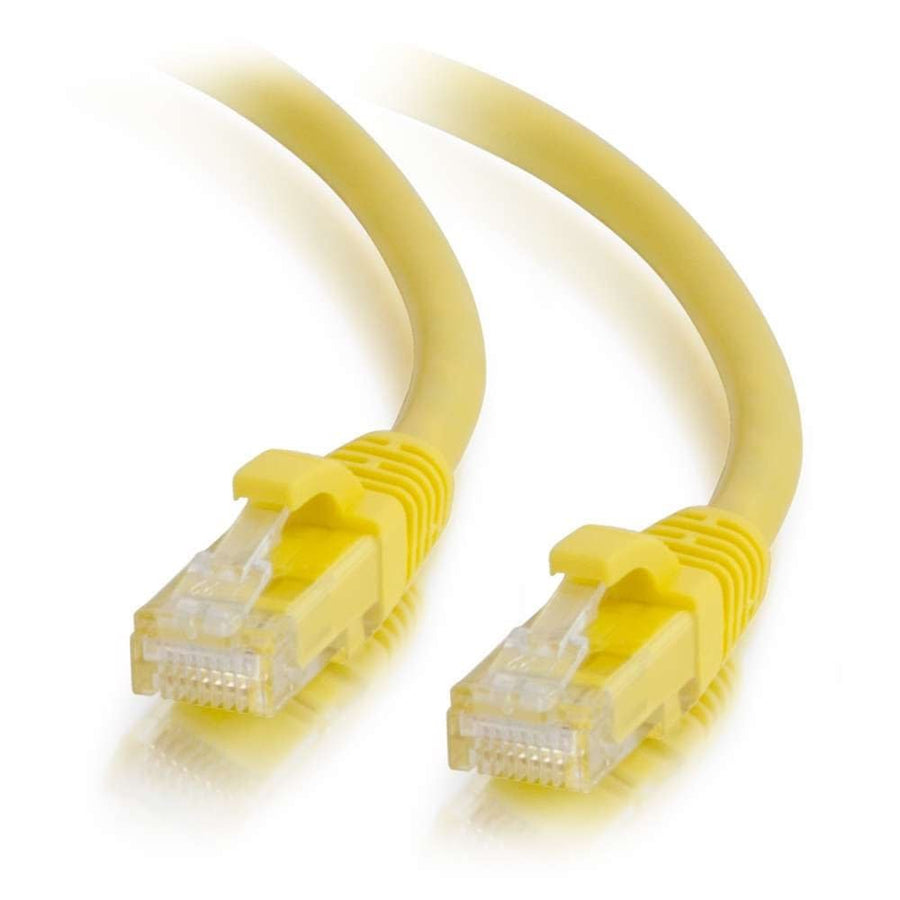

15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
15ft Cat6 snagless patch cable in yellow, featuring stranded copper conductors and UTP construction for Gigabit networks
The C2G CG04013 is a 15ft (4.6m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive applications including voice, data, and video distribution. This cable is engineered to meet all Cat6 TIA/EIA standards, helping to drastically reduce structural return loss (SRL) and impedance. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through to the termination point. The use of high-quality copper stranded conductors helps minimize Near-End Crosstalk (NEXT) levels in Gigabit computer networks. For ease of installation and durability, the cable features molded, snagless PVC boots that protect the RJ-45 clips from damage during plugging and unplugging while providing added strain relief. This yellow cable is part of a larger series available in 10 different colors and lengths up to 150ft, allowing for easy color-coding within complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040132 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG22014$14.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for high-bandwidth Gigabit networks, meeting TIA/EIA standards to support intensive data and video distribution.
How does the snagless design benefit the installer?
The molded snagless boots protect the RJ-45 clips from being damaged or snapped off when plugging or unplugging the cable in tight spaces.
What is the difference between this and the black version?
The CG04013 is the yellow version; the same series is available in a black finish (SKU: CG22014) to assist with network color-coding.
What other components are compatible with this Cat6 series?
This cable is compatible with various accessories like the Cat6 48-Port Rack Mount Patch Panel (SKU: 48845CC6) and the Trio Combo Module with Cat6 Data (SKU: CO1166).
Which documents should I use for submittals?
The C2G Ethernet Patch Cable Matrix (PDF) is available in the documentation to help verify series specifications for your submittal.
