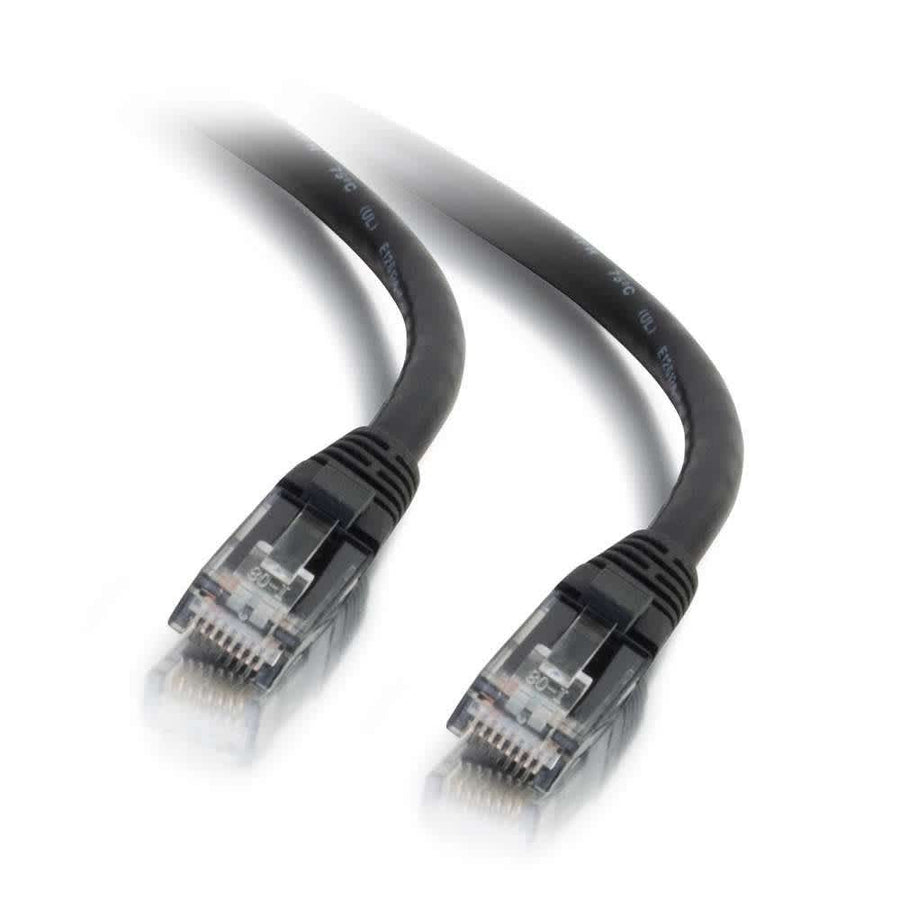

15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
15ft Cat6 snagless UTP patch cable with black PVC jacket and RJ-45 male connectors for Gigabit networking
The C2G CG22014 is a 15 ft (4.6 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth environments. This cable is engineered to support fast Ethernet and Gigabit computer networks, making it suitable for demanding voice, data, and video distribution applications. Constructed with high-quality stranded copper conductors, it is built to minimize Near-End Crosstalk (NEXT) levels. To ensure signal integrity, each individual pair is bonded together to maintain consistent twist-spacing from the cable through to the termination point. This design significantly reduces both impedance and structural return loss (SRL) while meeting all Cat6 TIA/EIA standards. For ease of installation, the cable features molded snagless boots made of PVC, which protect the RJ-45 clips from damage during plugging and unplugging and provide additional strain relief. This black patch cable uses a T568B wiring scheme and a 24 AWG wire gauge to provide reliable connectivity in professional network infrastructures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.44 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120220145 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum performance rating for the CG22014?
The CG22014 is a Cat6 cable rated for high-bandwidth applications including Gigabit computer networks and video distribution.
Does the CG22014 include a snagless design?
Yes, it features a molded, snagless boot that protects the RJ-45 clips and provides extra strain relief during installation.
