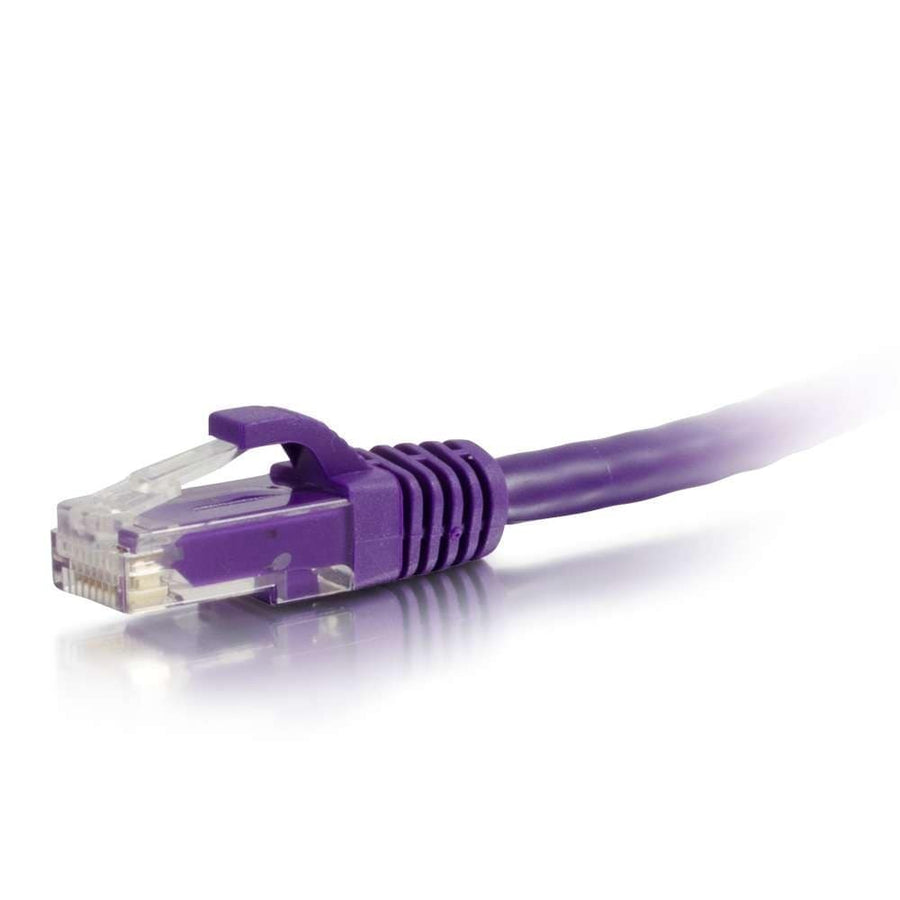

15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
Purple Cat6 Unshielded UTP Ethernet patch cable, 15 ft (4.6 m) length, with snagless boots for clip protection
The C2G CG04031 is a 15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable in purple, designed for high-bandwidth voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This cable meets all Cat6 TIA/EIA standards, featuring a design that reduces impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. Built with high-quality stranded copper conductors and 24 AWG wire, this cable utilizes a T568B wiring scheme. The molded, snagless boots provide extra strain relief and protect the RJ-45 clips from damage during plugging and unplugging. This purple jacketed cable is part of a wider series available in 10 colors and lengths up to 150ft to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040316 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
15ft (4.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG22014$14.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length and color of the CG04031?
This specific SKU is a 15 ft (4.6 m) cable in purple.
Will this cable work for Gigabit Ethernet networks?
Yes, it is a Cat6 cable designed for fast Ethernet and Gigabit networks requiring high-bandwidth data or video distribution.
What is the difference between this and the black version?
The CG04031 is purple; a black version is available under SKU CG22014.
Does this cable include strain relief?
Yes, it features a molded, snagless boot design that provides strain relief and prevents clips from snagging.
Is this cable shielded or unshielded?
This is an unshielded (UTP) cable with a PVC jacket.
