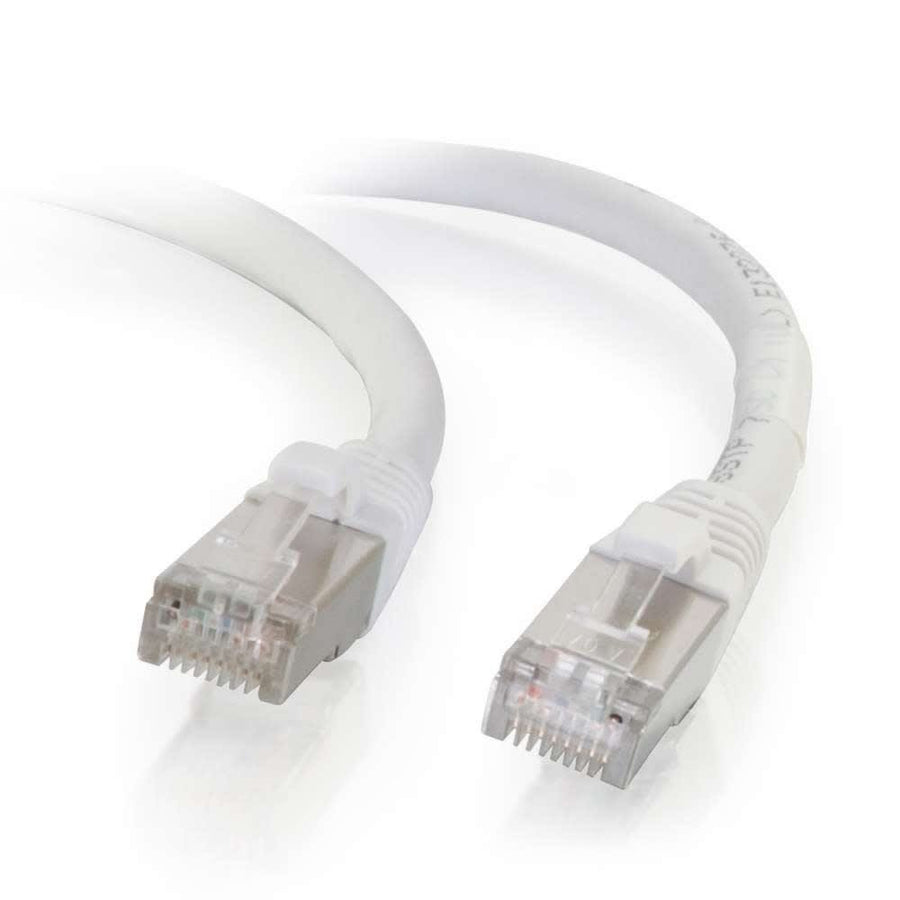

15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
15ft Cat6 shielded STP patch cable in white, featuring snagless boots and stranded copper conductors for high-bandwidth applications
The CG00926 is a 15ft (4.6 m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in white designed to protect high-speed networks from electromagnetic interference and noise. This Cat6 shielded patch cable utilizes stranded SSTP construction with 26AWG bare copper conductors to handle bandwidth-intensive voice, data, and video distribution. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for demanding environments. To maintain signal integrity, each individual pair is bonded together, which helps maintain twist-spacing from the cable through to the termination point. The design minimizes Near-End Crosstalk (NEXT) levels and reduces both impedance and structural return loss (SRL). This 0.24 in (6.2 mm) diameter cable features PVC jacket and connector hood materials, with RJ-45 male connectors protected by snagless, booted hoods. Each cable includes an individual length label for easy identification during installation and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.45 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009269 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00820$24.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this C2G CG00926 cable work in high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction and bonded pairs are designed to reduce impedance, structural return loss, and electromagnetic interference.
What is the wiring scheme for the CG00926 patch cable?
This cable uses the T568B wiring scheme and features 26AWG stranded copper conductors.
Is this cable compatible with other C2G networking products?
Yes, it is compatible with various C2G accessories including the LANsmart TDR Cable Tester and various Keystone wall plates and surface mount boxes.
Does the CG00926 have a snagless design?
Yes, the RJ-45 male connectors feature snagless boots to protect the connection during installation and use.
What is the temperature rating for this Cat6 cable?
This cable is rated for operation in temperatures up to 75°C.
