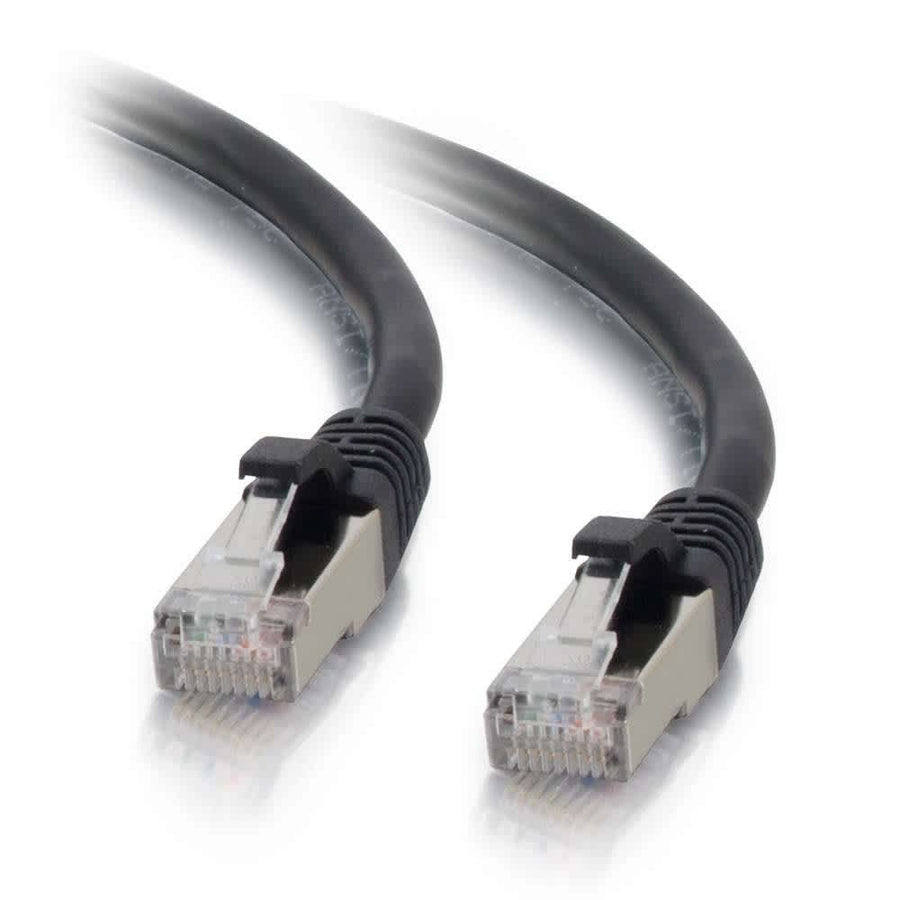

15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
15ft Cat6 shielded STP patch cable with snagless boots and 26AWG stranded copper conductors
The C2G CG00820 is a 15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This shielded (STP) cable is ideal for voice, data, and video distribution, handling bandwidth-intensive applications by drastically reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features 26AWG (7/0.16) bare copper stranded conductors, with individual pairs bonded together to maintain twist-spacing through the termination point. This design minimizes Near-End Crosstalk (NEXT) levels. The cable features a 0.24 in (6.2 mm) diameter and utilizes a PVC jacket and hood material. The connectors are booted with a snagless design for easy installation in dense environments. For easy identification in a rack, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.48 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008200 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00803$24.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00820 TAA compliant?
No, this specific SKU is not TAA compliant.
What is the wiring scheme for this Cat6 cable?
The CG00820 uses the T568B wiring scheme and features 4-pair stranded copper conductors.
What other colors are available in this Cat6 series?
This series is available in several colors, including Blue (SKU: CG00803).
What tools are required for installation?
This is a pre-terminated patch cable and does not require additional installation tools.
Does this cable have a warranty?
Yes, this C2G patch cable is backed by a Lifetime warranty.
