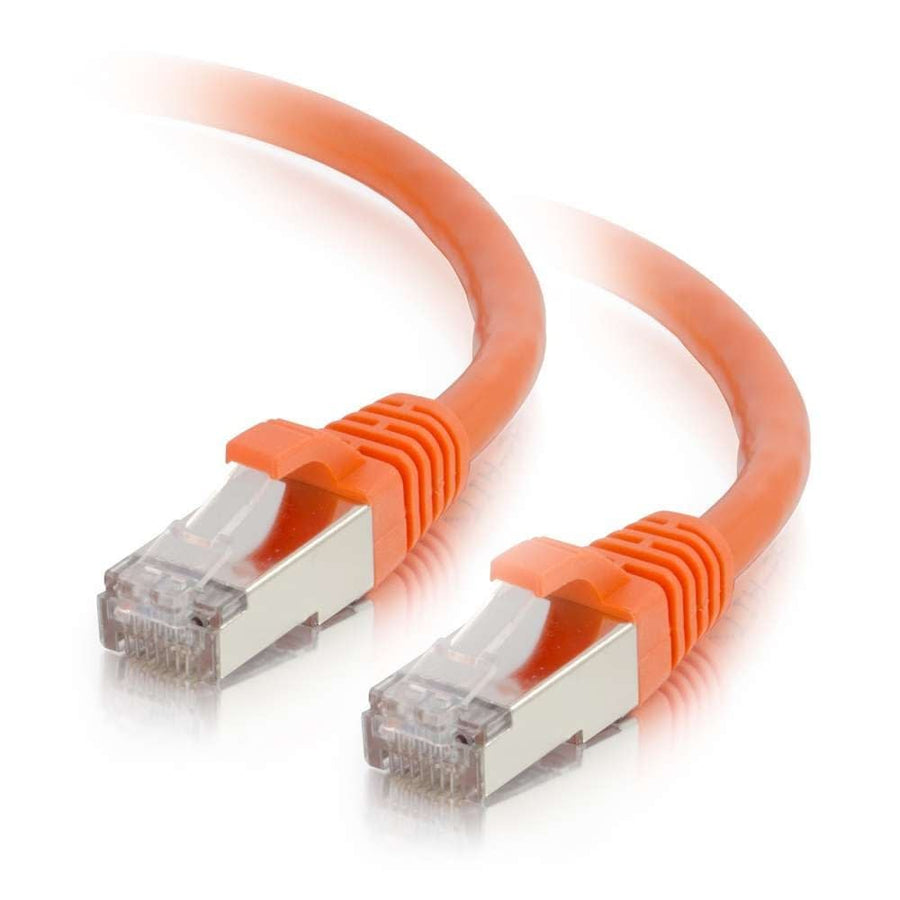

15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
15ft Cat6 Shielded STP patch cable in orange, featuring snagless boots and T568B wiring for high-bandwidth applications
The C2G CG00892 is a 15ft (4.6m) Cat6 Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This orange cable is built for voice, data, and video distribution, handling bandwidth-intensive applications while significantly reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To maintain performance, individual pairs are bonded together to preserve twist-spacing throughout the line up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The cable features 26AWG stranded bare copper conductors and a PVC jacket with a 0.24 in (6.2 mm) diameter. For easy installation, the cable includes snagless, booted RJ-45 male connectors and is organized with individual length labels. This STP construction makes it a reliable choice for environments with high levels of electrical noise.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008927 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00820$24.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work in high-interference environments?
Yes, the CG00892 uses Shielded STP (SSTP) construction to protect against electromagnetic interference and noise in high-bandwidth applications.
What is the wiring standard for the CG00892?
This patch cable follows the T568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Does this cable support high-speed data distribution?
The CG00892 is designed for voice, data, and video distribution, specifically engineered to reduce structural return loss (SRL) for intensive applications.
What are the physical specifications of the CG00892 cable?
The cable is 15ft (4.6m) long with a 0.24 in (6.2 mm) diameter and utilizes 26AWG stranded bare copper conductors.
Are there other color options for this Cat6 series?
Yes, this series is available in multiple colors for network color-coding, including a black version (SKU: CG00820).
