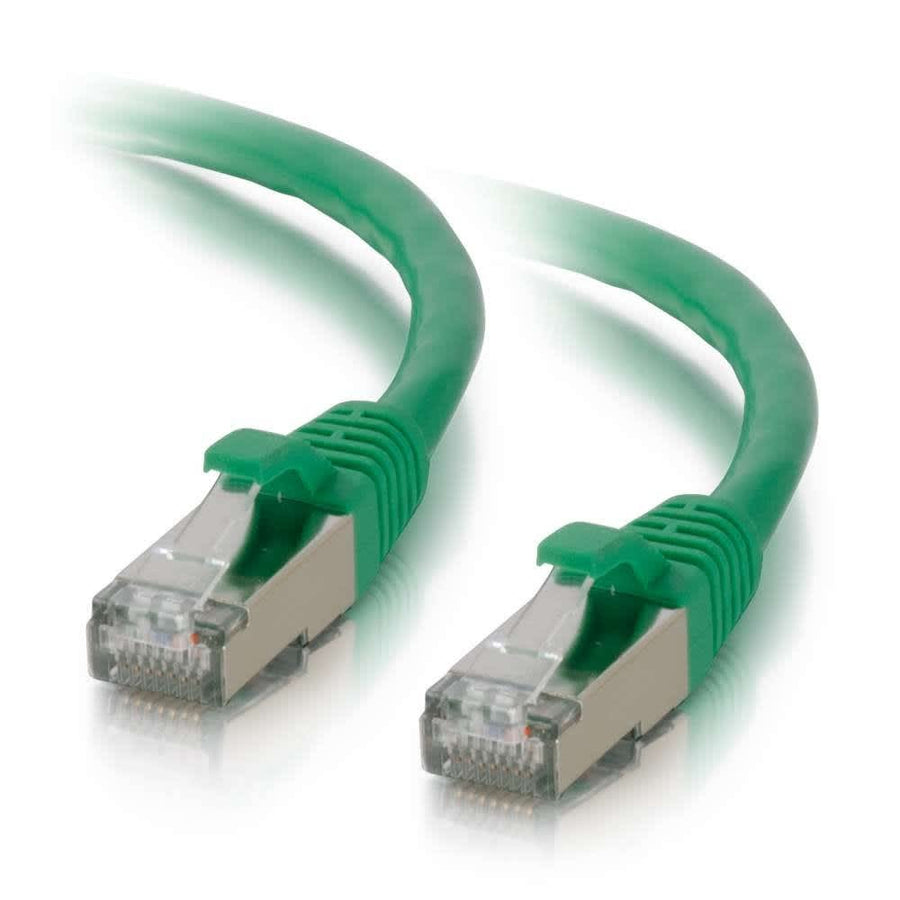

15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
Green 15ft Cat6 shielded STP patch cable with snagless boots and stranded copper conductors
The C2G CG00837 is a 15ft (4.6m) Cat6 Shielded (STP) Ethernet network patch cable designed to protect high-speed data transmissions from electromagnetic interference and noise. This cable is engineered for bandwidth-intensive voice, data, and video distribution applications where reducing impedance and structural return loss (SRL) is critical. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in demanding environments. The construction features 26AWG stranded bare copper conductors, which are bonded together to maintain precise twist-spacing through to the termination point. This design is intended to minimize Near-End Crosstalk (NEXT) levels. This specific SKU features a green PVC jacket and snagless boots for easy installation and cable protection. For network organization, this model is part of a wider series available in multiple colors and lengths, and includes an individual length label for rapid identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.45 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008378 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00820$24.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00837 cable work for high-bandwidth video distribution?
Yes, this Cat6 STP cable is designed to handle bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
Does this patch cable include snagless protection?
Yes, the CG00837 features a snagless connector type with PVC hoods to protect the termination points.
What is the wiring scheme for this Cat6 cable?
The CG00837 uses the T568B wiring scheme with 26AWG stranded copper conductors.
Is there a different color available for this 15ft Cat6 cable?
Yes, this cable is available in several other colors, such as black (SKU: CG00820), to assist with network color-coding.
What testing standards does this cable meet?
This cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6 component requirements.
