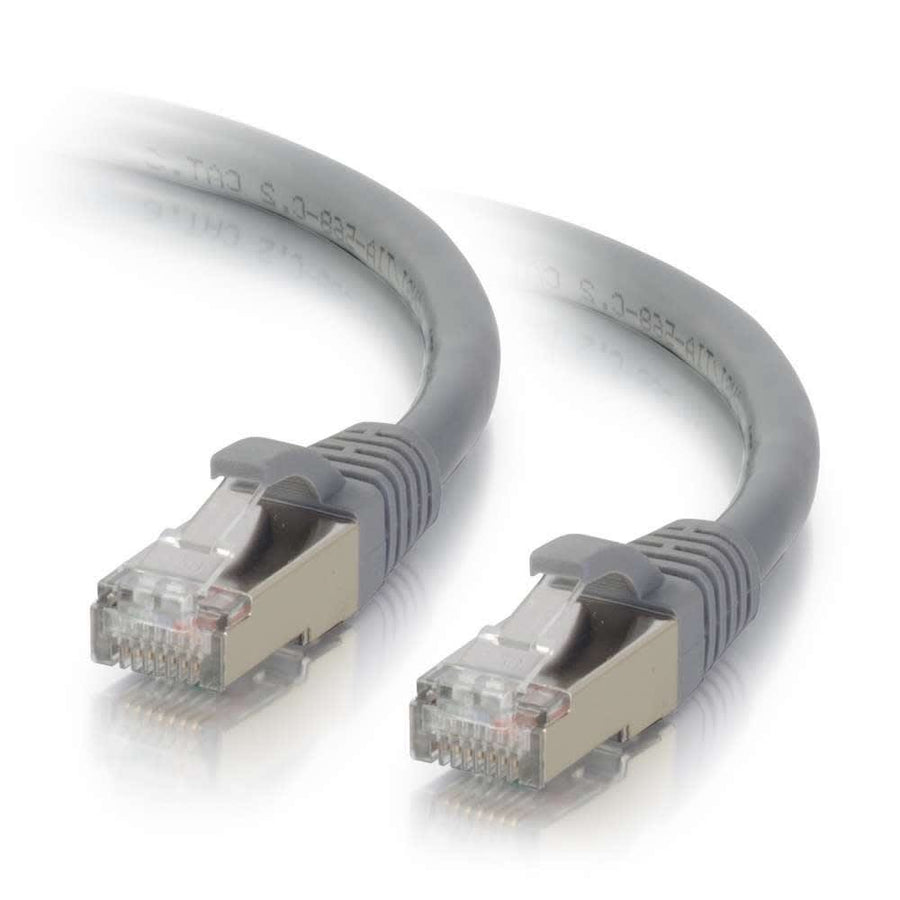

15ft (4.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
Shielded Cat6 STP patch cable, 15 ft (4.6 m) length, featuring snagless boots and T568B wiring for interference-heavy environments
The C2G CG00786 is a 15ft (4.6m) Cat6 shielded STP patch cable designed to protect high-speed networks from electromagnetic interference and noise. This cable is built for bandwidth-intensive applications in voice, data, and video distribution, helping to drastically reduce structural return loss (SRL) and impedance. It is fully tested to meet the ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for professional installations. The cable construction features 26AWG bare copper stranded conductors, which are bonded together to maintain precise twist-spacing up to the termination point, significantly minimizing Near-End Crosstalk (NEXT) levels. Each cable is equipped with snagless, booted RJ-45 male connectors with PVC hoods for added protection. This gray cable is ideal for color-coded network management and is marked with individual length labels for easy identification during deployment. The jacket is made of PVC and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007869 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data applications?
Yes, the CG00786 is designed for bandwidth-intensive applications and reduces structural return loss (SRL) and impedance to maintain signal integrity.
Is this cable suitable for environments with high electromagnetic interference?
Yes, the shielded (STP) design and bonded individual pairs are engineered to protect your network from noise and electromagnetic interference.
What is the wiring standard for the CG00786 patch cable?
This 15ft (4.6m) patch cable follows the T568B wiring scheme.
What kind of connectors are used on this C2G cable?
The cable features RJ-45 male connectors with snagless boots and PVC hoods to protect the termination point.
What testing certifications does this Cat6 cable meet?
The CG00786 is fully tested to meet the ANSI/TIA 568 C.2 Cat6 component requirements.
