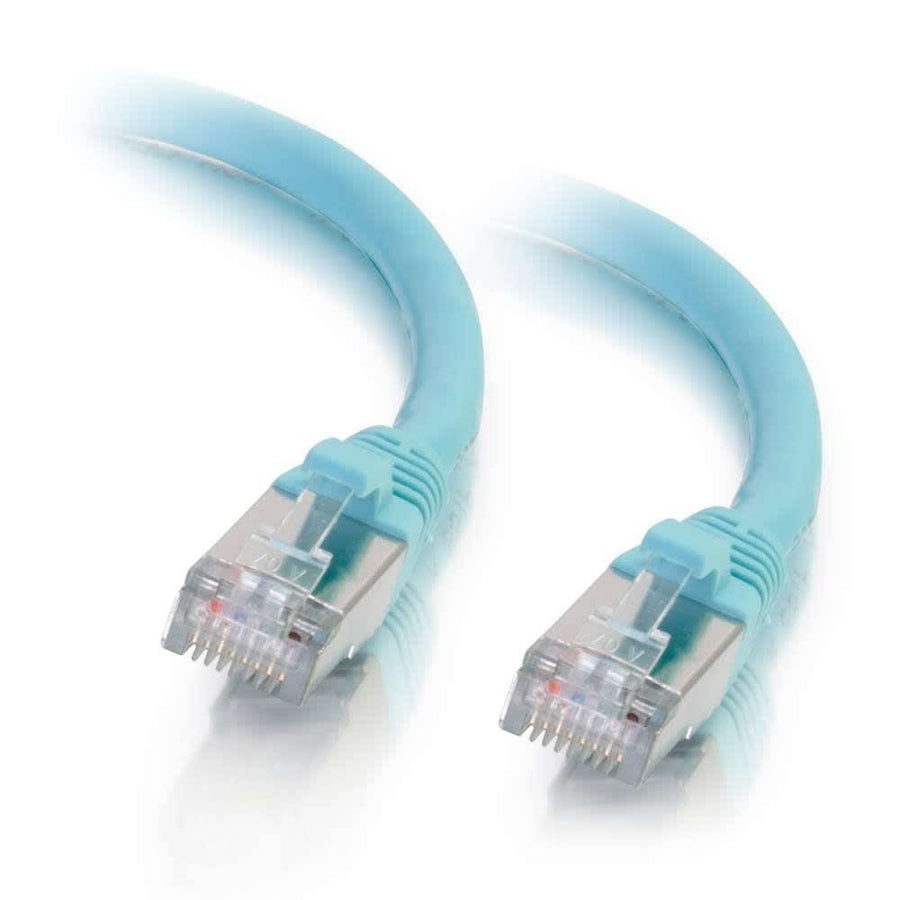

14ft (4.25m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
Shielded Cat6a patch cable for 10GBase-T equipment, featuring snagless boots and stranded copper conductors in Aqua.
The C2G CG00751 is a 14 ft (4.3 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-speed 10GBase-T network connections. This aqua-colored cable is engineered to protect sensitive network equipment, such as hubs, switches, routers, and network adapters, from electromagnetic interference and noise. By utilizing a shielded STP construction, it provides the stability required for bandwidth-intensive video, voice, and data distribution. This cable is built with 26AWG bare copper stranded conductors and features FMPE (Foam Polyethylene) insulation to minimize impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing up to the termination point, which helps significantly reduce Near-End Crosstalk (NEXT) levels. The RJ-45 male connectors are protected by snagless, booted PVC hoods. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance in professional environments. This SKU is part of a larger series available in various lengths and colors to facilitate easy color-coding within complex installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007517 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6a cable support 10GbE networking?
Yes, the CG00751 is designed for 10GBase-T ports and equipment, providing protection against noise for high-speed 10 Gigabit connections.
What is the maximum operating temperature for this patch cable?
This cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Is this cable suitable for high-interference environments?
Yes, the shielded STP (SSTP) construction and bonded pair design help minimize Near-End Crosstalk (NEXT) and electromagnetic interference.
What is the wiring scheme for the CG00751?
This Cat6a patch cable uses the 568B wiring scheme.
Does this cable meet TIA standards?
Yes, each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
