14ft (4.25m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
14ft White Cat6 STP shielded patch cable with snagless boots and stranded copper conductors

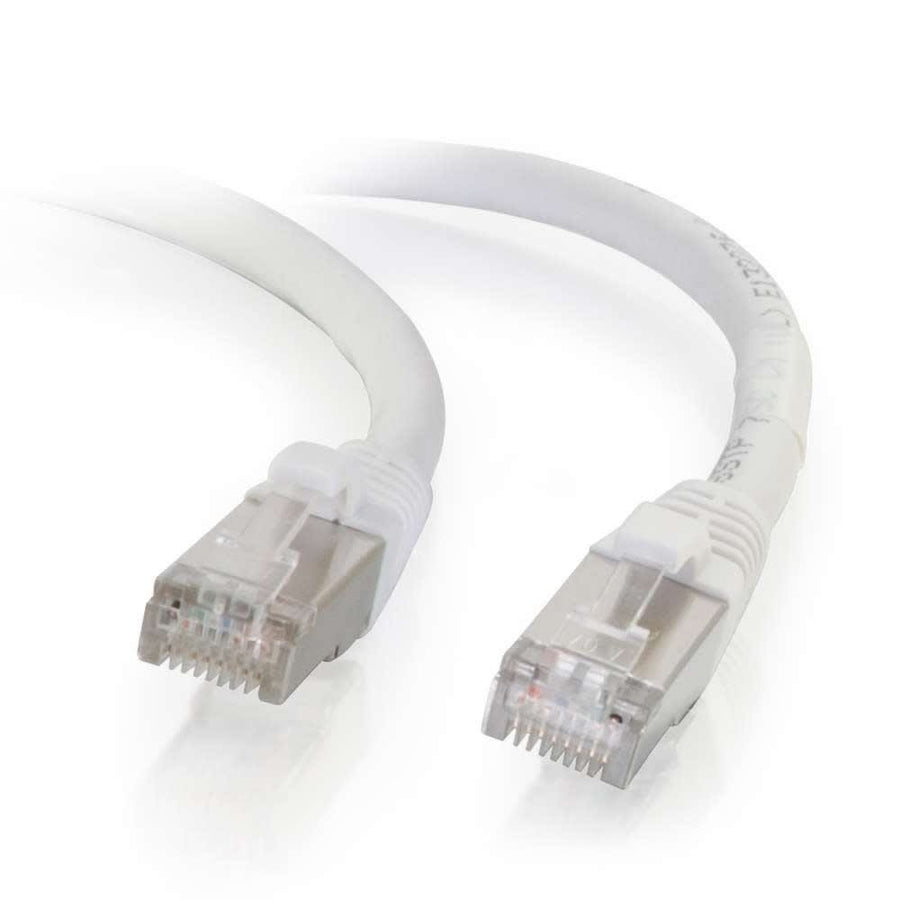

The C2G CG00925 is a 14ft (4.3 m) Cat6 Shielded STP Ethernet network patch cable designed to protect high-speed data transmissions from electromagnetic interference and noise. This white cable utilizes stranded copper conductors with a 26AWG (7/0.16) profile and FM-PE insulation to handle bandwidth-intensive voice, data, and video distribution. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring performance in demanding environments. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. This specific model features a snagless, booted connector design with PVC hoods to protect the RJ-45 male terminations. The cable utilizes a T568B wiring scheme and a PVC jacket. For large-scale deployments, each cable includes an individual length label for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | STP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009252 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the C2G CG00925 TAA compliant?
No, this specific SKU is not TAA compliant.
What is the wiring standard for this Cat6 cable?
The C2G CG00925 uses the T568B wiring scheme for all terminations.
What tools are required to install this patch cable?
This is a pre-terminated patch cable and does not require installation tools; however, network testers like the LANsmart TDR Cable Tester can be used for verification.
Can I use this for high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction is designed to protect against electromagnetic interference and reduce crosstalk.
What is the maximum temperature rating for this cable?
This cable is rated for operation in temperatures up to 75°C.
