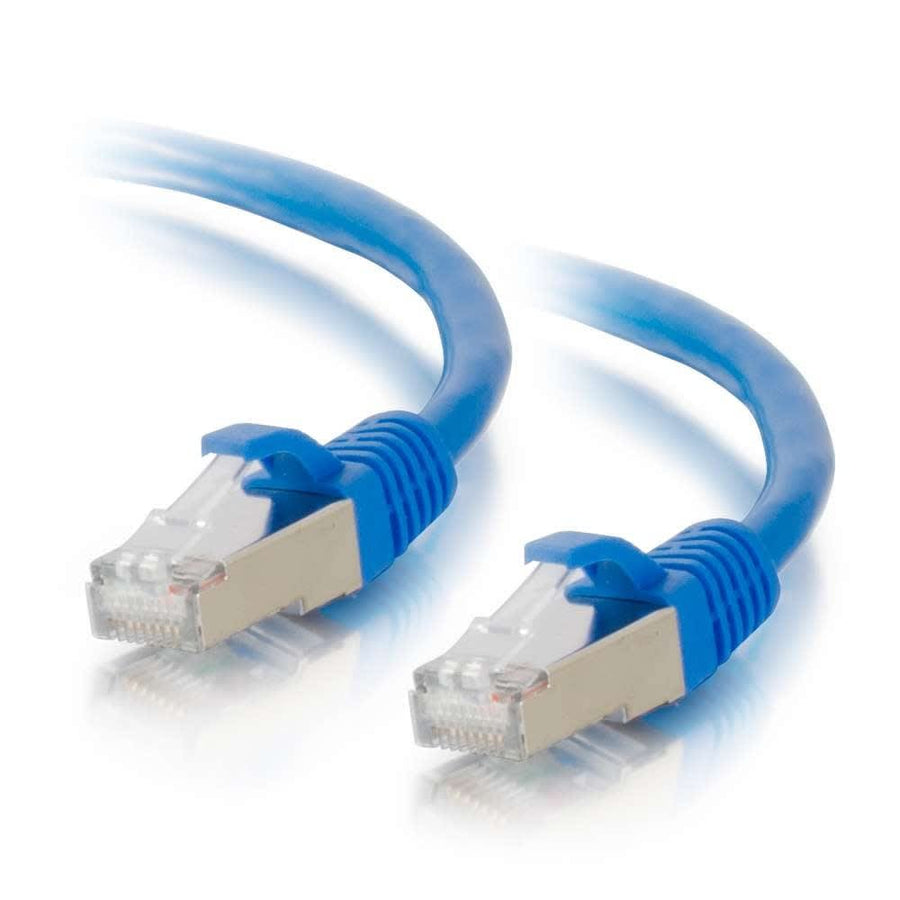

12ft (3.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
12ft Blue Cat6a Snagless Shielded STP patch cable, 26AWG stranded copper, for 10GBase-T high-speed networking
The C2G CG00682 is a 12ft (3.7m) Blue Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support bandwidth-intensive 10GBase-T applications. This cable is engineered to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise through its shielded STP construction. It is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each individual pair is bonded together to maintain consistent twist-spacing from the connector to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The assembly features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation and a PVC jacket. Each cable includes an individual length label for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006824 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the C2G CG00682 compatible with 10GbE networking?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, providing the bandwidth necessary for high-speed 10 Gigabit network connections.
What shielding is used in this Cat6a patch cable?
The CG00682 uses a shielded STP (SSTP) design with stranded copper conductors to reduce impedance and structural return loss (SRL).
What are the operating temperature limits for this cable?
This cable is rated for operating temperatures ranging from -4° to 176°F (-20° to 80°C).
Does this cable meet NDAA requirements?
Yes, this product is listed as NDAA 889 compliant and carries CE, RoHS, REACH, and TSCA certifications.
What is the wiring scheme for the CG00682?
This patch cable follows the 568B wiring scheme and features RJ-45 male connectors on both ends.
