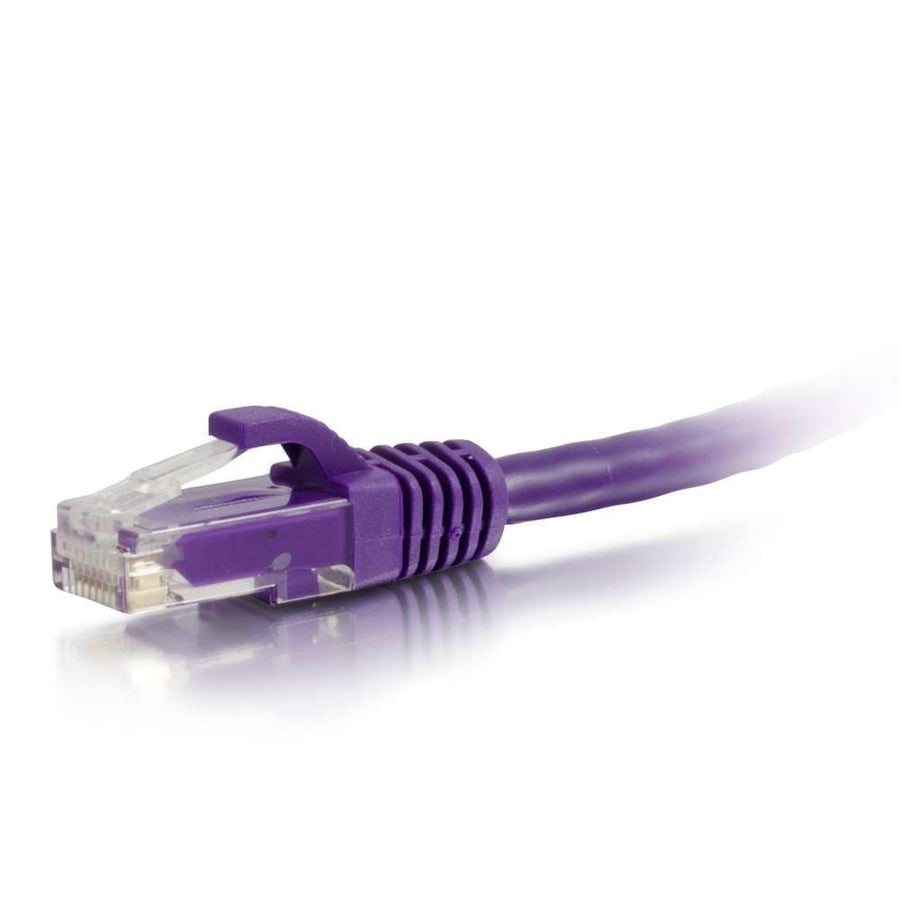

12ft (3.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
Purple Cat6 snagless patch cable, 12 ft (3.7 m) length, unshielded UTP construction for high-bandwidth networking
The C2G CG04030 is a 12 ft (3.7 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for fast Ethernet and Gigabit computer networks. This cable is engineered for bandwidth-intensive voice, data, or video distribution applications, meeting all Cat6 TIA/EIA standards. To reduce impedance and structural return loss (SRL), each individual pair is bonded together, which helps maintain the twist-spacing throughout the line up to the termination point. The copper stranded conductors are designed to minimize Near-End Crosstalk (NEXT) levels. This purple cable features a snagless, booted connector design made of PVC, which protects the clips from damage during installation and provides extra strain relief. It utilizes a T568B wiring scheme and is built with 24 AWG wire. This series is available in up to 150 ft lengths and 10 different colors to facilitate easy color-coding within a professional network environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040309 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
12ft (3.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03986$11.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Is the C2G CG04030 compatible with standard Cat6 patch panels?
Yes, this cable is suitable for use with components like the Cat6 48-Port Rack Mount Patch Panel or the 24-Port Rack Mount Patch Panel.
What is the difference between this and the black version of the same cable?
The CG04030 is the purple color variant, whereas the CG03986 is the identical 12ft Cat6 snagless cable in black.
What type of wiring scheme does this patch cable use?
This Cat6 cable uses the T568B wiring scheme for standard network connectivity.
Can I use this cable for high-bandwidth video distribution?
Yes, the Cat6 rating is designed for high-bandwidth applications including video distribution and Gigabit computer networks.
Does this cable include a snagless boot for strain relief?
Yes, the CG04030 features a molded, snagless PVC boot that protects the connector clips and provides strain relief.
