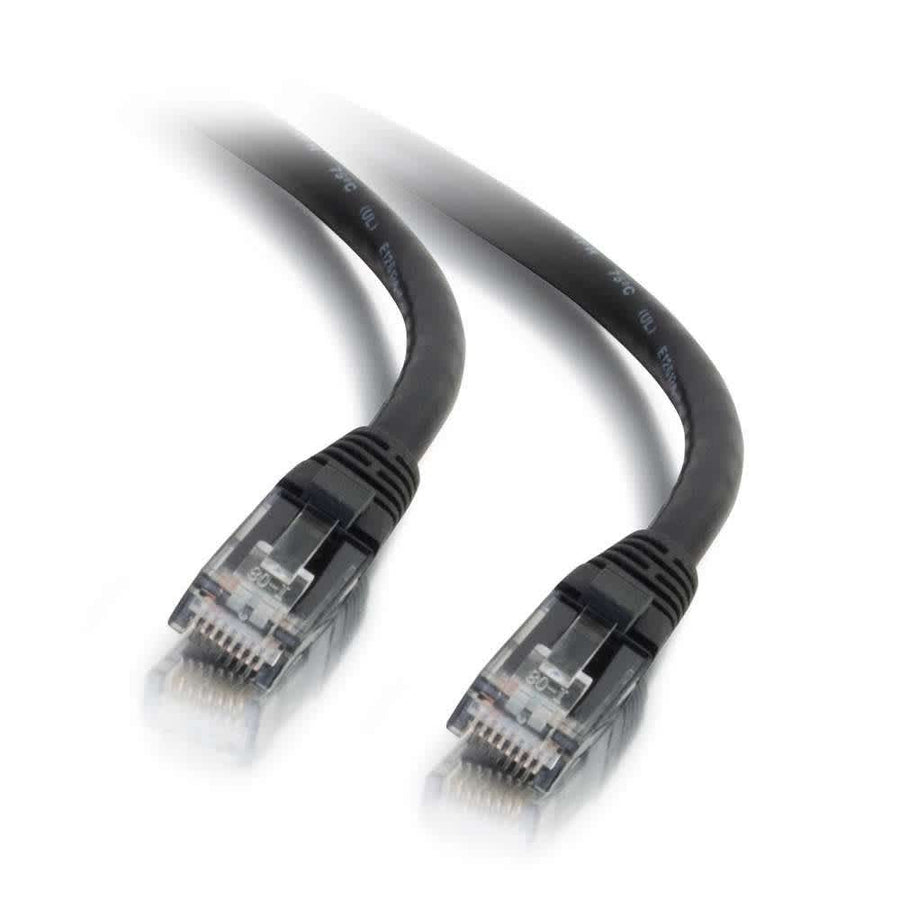

12ft (3.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
12ft Cat6 Snagless UTP Ethernet patch cable in black, featuring stranded copper conductors for high-bandwidth data and video distribution
The C2G CG03986 is a 12ft (3.7m) Cat6 Snagless UTP Ethernet patch cable designed for high-bandwidth applications requiring rapid data, voice, or video distribution. This unshielded twisted pair (UTP) cable meets all Cat6 TIA/EIA standards, significantly reducing impedance and structural return loss (SRL). To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through the termination point. Constructed with high-quality stranded copper conductors, this cable is engineered to minimize Near-End Crosstalk (NEXT) levels. The integrated snagless boot features a PVC connector hood that protects the RJ-45 clips from damage during installation and provides essential strain relief. This black cable uses a T568B wiring scheme and is rated for standard, non-rated environments. It is an ideal solution for fast Ethernet and Gigabit computer networks in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039860 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
