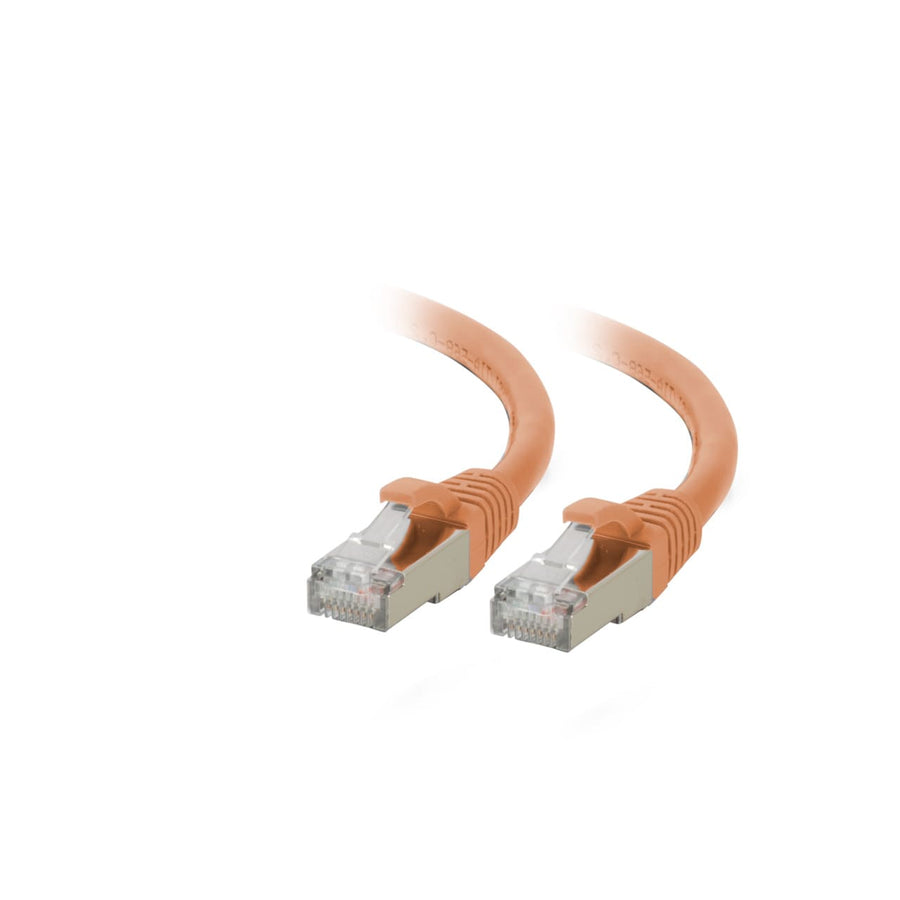

10ft (3m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Orange
10ft Orange Cat6a STP snagless patch cable supporting 10 Gbps data transfer for high-density network environments
The C2G07394 is a 10 ft (3.1 m) Cat6a STP Ethernet network patch cable designed to support high-speed 10 Gbps data transmission. This orange cable is engineered for 10GBase-T ports and critical equipment including network adapters, hubs, switches, routers, and patch panels. Its shielded twisted pair (STP) construction protects high-speed network connections from electromagnetic interference and noise. Each cable features a snagless connector design to protect the RJ-45 lock and facilitate use in high-density environments. The cable utilizes 26 AWG stranded copper conductors with 50 µ in gold plating on the connectors for reliable performance. This Cat6a component is fully tested to meet ANSI/TIA 568-C.2 requirements, which helps minimize Near-End Crosstalk (NEXT) levels. This specific orange variant is part of a larger series available in multiple colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073949 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
