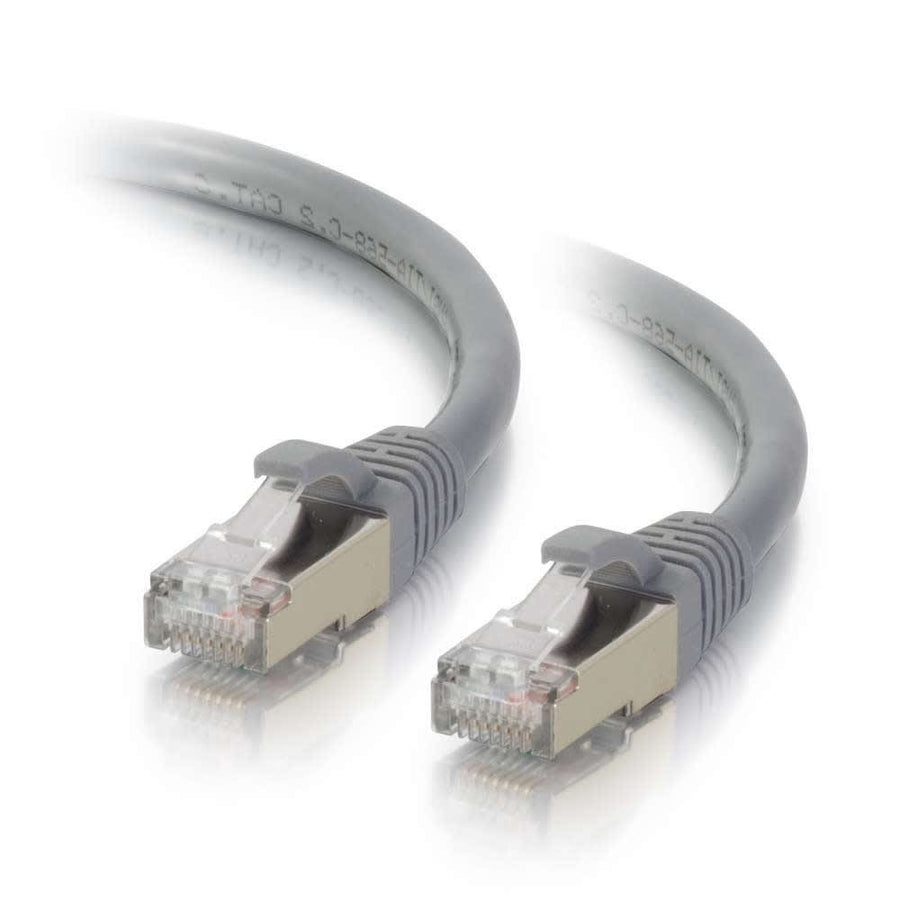

10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
10ft Cat6a shielded STP patch cable, snagless connectors, gray, designed for 10GBase-T high-speed networking
The C2G CG00647 is a 10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed 10GBase-T environments. This gray cable is built to protect 10 Gigabit network connections from electromagnetic interference and noise, making it an ideal choice for use with switches, routers, hubs, network adapters, and patch panels. It features stranded copper conductors with a 26AWG wire gauge and FMPE (Foam Polyethylene) insulation. This cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive applications by reducing both impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The assembly includes RJ-45 male connectors with PVC hoods and a snagless, booted design for easy installation and protection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006473 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00715$25.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this C2G CG00647 cable work for 10GbE networking?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, protecting high-speed connections from electromagnetic interference.
What is the wiring scheme for the CG00647 cable?
This cable follows the 568B wiring scheme and utilizes stranded SSTP construction with 26AWG copper conductors.
Is the CG00647 compatible with standard network hardware?
This cable is suitable for use with switches, routers, hubs, DSL/cable modems, and patch panels.
What is the maximum operating temperature for this patch cable?
The operating temperature range is -4° - 176°F (-20° - 80°C).
Does this cable include a snagless design?
Yes, the CG00647 features a booted, snagless connector type to prevent damage during installation.
