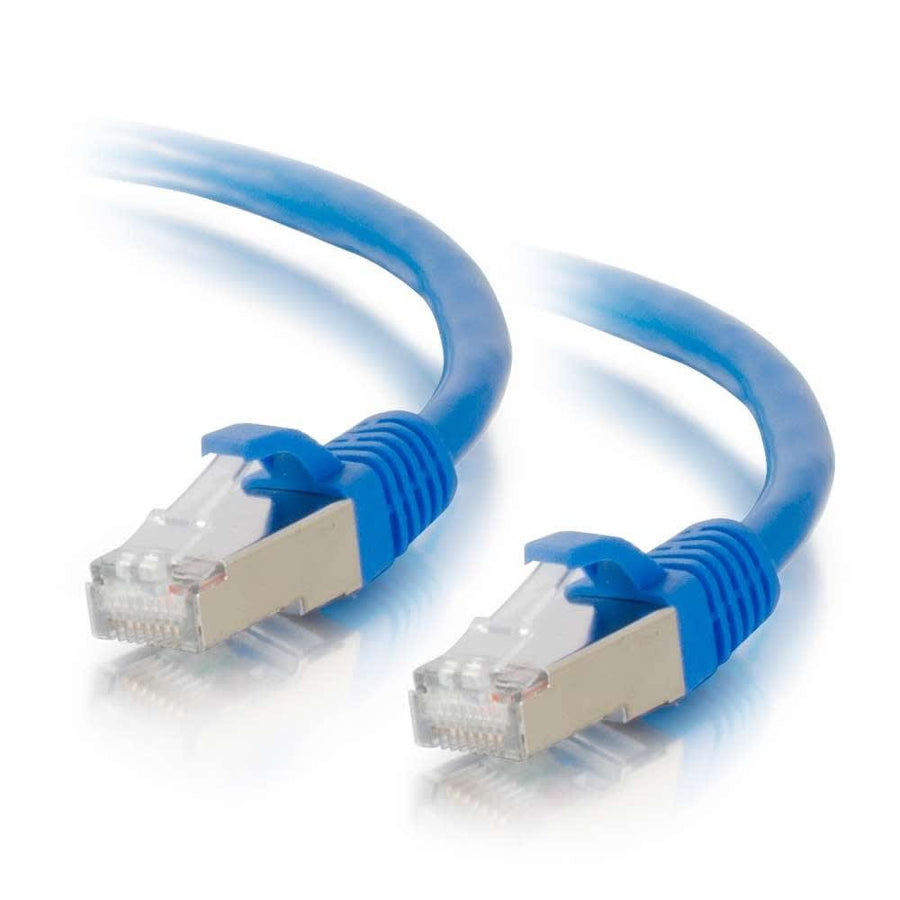

10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
10ft Cat6a shielded STP patch cable in blue, featuring snagless boots for high-speed 10GBase-T network protection
The C2G CG00681 is a 10ft (3.1 m) blue Cat6a snagless shielded STP Ethernet network patch cable designed for high-speed data environments. This cable is engineered for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. By utilizing a shielded STP construction, it protects 10 Gigabit network connections from electromagnetic interference and noise. The cable features 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation to handle bandwidth-intensive applications. Each pair is bonded to maintain twist-spacing through the termination point, which significantly reduces Near-End Crosstalk (NEXT) levels. This Cat6a patch cable is fully tested to meet ANSI/TIA 568 C.2 component requirements and is designed for reliability in professional voice, data, and video distribution environments. The cable includes a 0.24 in (6.2 mm) diameter and a bend radius of 1.95 in (49.6 mm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006817 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will the C2G CG00681 work with my 10GBase-T equipment?
Yes, this Cat6a cable is specifically designed for 10GBase-T ports, including switches, routers, hubs, and network adapters.
What is the maximum operating temperature for this patch cable?
This cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
What do I need to ensure this cable is compatible with my installation?
The CG00681 uses standard RJ-45 male connectors and follows the 568B wiring scheme for easy integration into existing systems.
Is this cable suitable for high-interference environments?
Yes, the shielded STP design and bonded pair construction help minimize Near-End Crosstalk (NEXT) and electromagnetic interference.
Which documentation is available for technical submittals?
The C2G Ethernet Patch Cable Matrix PDF provides further technical details for installation planning.
