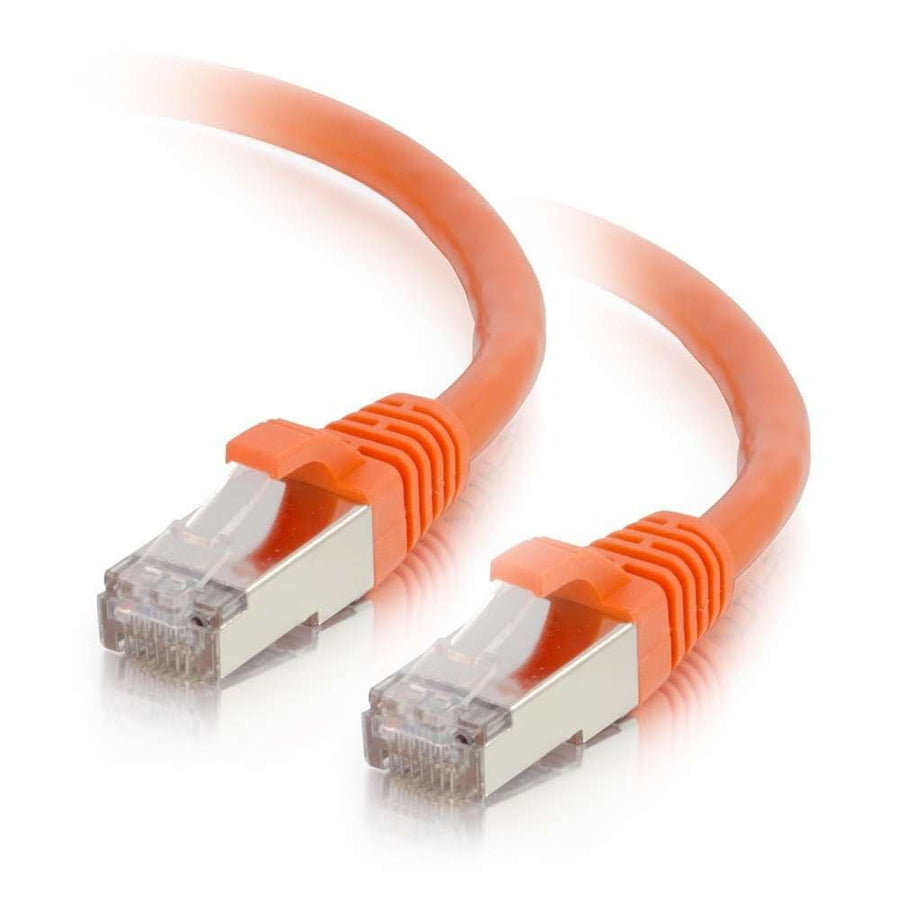

10ft (3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
10ft Cat6 STP shielded patch cable in orange with snagless boots and 26AWG stranded copper conductors
The C2G CG00885 is a 10 ft (3.1 m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference (EMI) and noise. This orange cable is ideal for bandwidth-intensive voice, data, and video distribution applications where reducing impedance and structural return loss (SRL) is critical. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in demanding environments. Each cable features 26AWG bare copper conductors with stranded construction and FM-PE insulation. The design includes individual pair bonding to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. For ease of installation and identification, each cable features an individual length label and a snagless, booted PVC connector hood. This SSTP cable is rated for temperatures up to 75°C and utilizes a T568B wiring scheme. It is a robust solution for installers needing shielded connectivity to maintain signal integrity in high-interference zones.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008859 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00817$16.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for high-interference environments?
Yes, the CG00885 is an STP (Shielded Twisted Pair) cable designed to reduce electromagnetic interference (EMI), noise, and impedance issues in bandwidth-intensive applications.
What is the wiring scheme for the CG00885?
This orange patch cable uses the T568B wiring scheme and features 26AWG stranded bare copper conductors.
Is this cable suitable for professional network testing?
The CG00885 is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for use with testers like the LANtest Pro or Psiber Pinger Plus.
Does this cable include snagless boots?
Yes, the CG00885 features a snagless, booted connector design with PVC hoods to protect the connection during installation.
What is the difference between this and the black version?
The CG00885 is the orange color variant; the black version is available under SKU CG00817.
