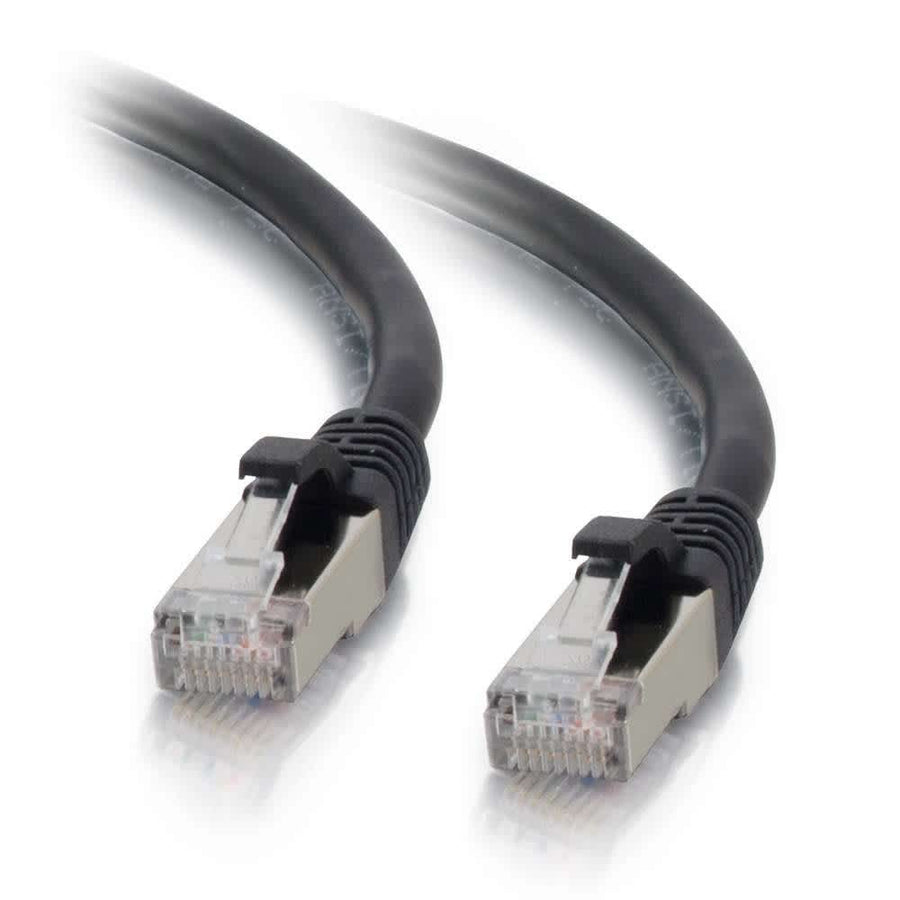

10ft (3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
10ft Cat6 shielded STP patch cable with snagless boots and 26AWG stranded copper conductors
The C2G CG00817 is a 10ft (3.1 m) Cat6 Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This cable is ideal for bandwidth-intensive voice, data, and video distribution applications where minimizing impedance and structural return loss (SRL) is critical. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in professional installations. The construction features 26AWG stranded bare copper conductors and individual pairs that are bonded together to maintain twist-spacing up to the termination point. This design is specifically engineered to minimize Near-End Crosstalk (NEXT) levels. Each cable includes snagless, booted RJ-45 male connectors with PVC hoods and is marked with an individual length label for efficient identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008170 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00800$16.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video distribution?
Yes, the CG00817 is designed for high-bandwidth applications and helps reduce impedance and structural return loss (SRL).
What is the wiring scheme for the CG00817?
This 10ft patch cable uses the T568B wiring scheme and features 26AWG stranded copper conductors.
What are the electrical and physical ratings of this cable?
The cable has a 75°C temperature rating, a 0.24 in (6.2 mm) diameter, and features PVC jacket and hood materials.
Is this cable TAA compliant?
No, the CG00817 is not TAA compliant, though it carries CE, RoHS, and REACH certifications.
Are there other color options for this Cat6 shielded series?
Yes, this series includes other colors such as Blue (SKU: CG00800) for color-coded network installations.
