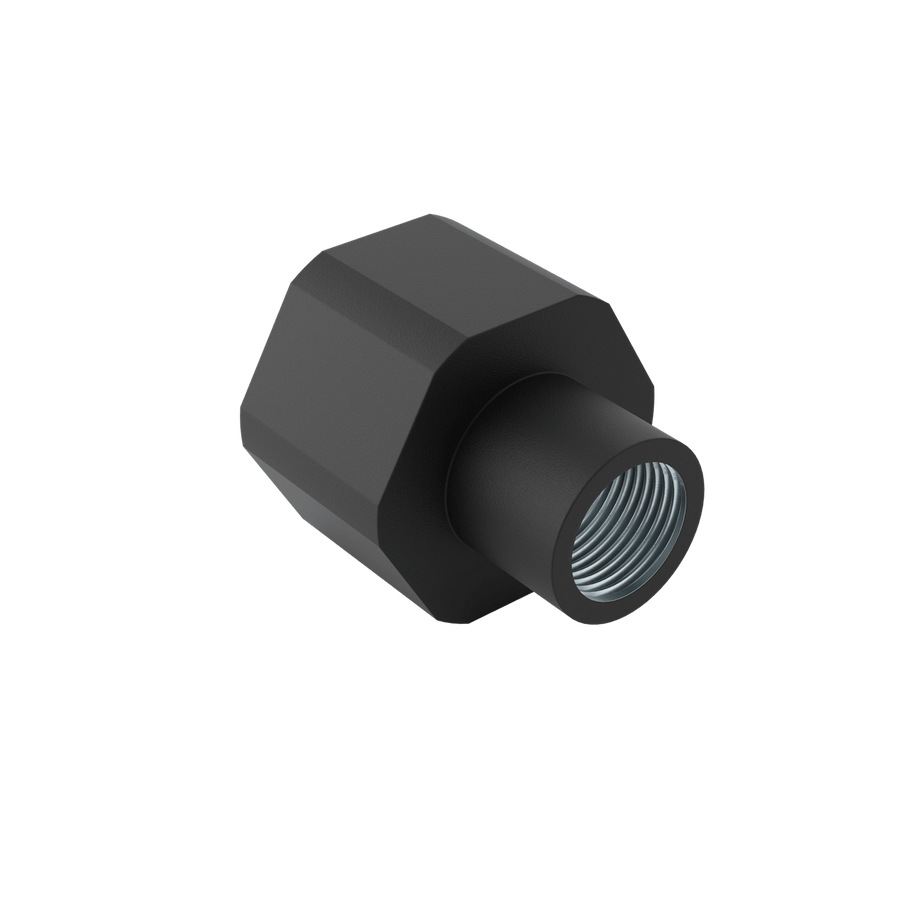

1.5" NPT Chief CMS to Vaddio Drop Mount Adapter
Adapter for mounting Vaddio ceiling drop mounts onto a Chief CMS Series 1.5-inch NPT pipe
The Vaddio 535-2000-400 is a specialized adapter designed to bridge the gap between Chief CMS Series pipe mounts and Vaddio ceiling drop mounts. This adapter allows installers to mount Vaddio cameras on a 1.5-inch drop pipe, such as those used in the Chief CMS Series. It features a 1.5" NPT to 1"-14 TPI thread pattern, ensuring a secure fit for pole applications. Constructed from heavy-duty steel with a black powder coat finish, this component is built for professional ceiling installations. The adapter is designed to work with the 1"-14 jamb nut provided in the Vaddio Drop Mount, facilitating a streamlined transition from existing infrastructure to Vaddio's specialized drop-down mounting systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Length | 2.5 in (6.4 cm) |
| Shipping Dimensions | 8.75" x 6.125" x 2.75" (222.3 x 155.6 x 69.9 mm) |
| Shipping Weight | 0.88 lbs (0.4 kg) |
| Width | 1.25 in (3.2 cm) |
| Application | Pole |
| Color | Black |
| Finish | Black Powder Coat |
| Material | Steel |
| TAA Compliant | Yes |
| UPC | 840077508791 |
| Certifications | TAA |
| Warranty | 3 years |
You'll need these with it

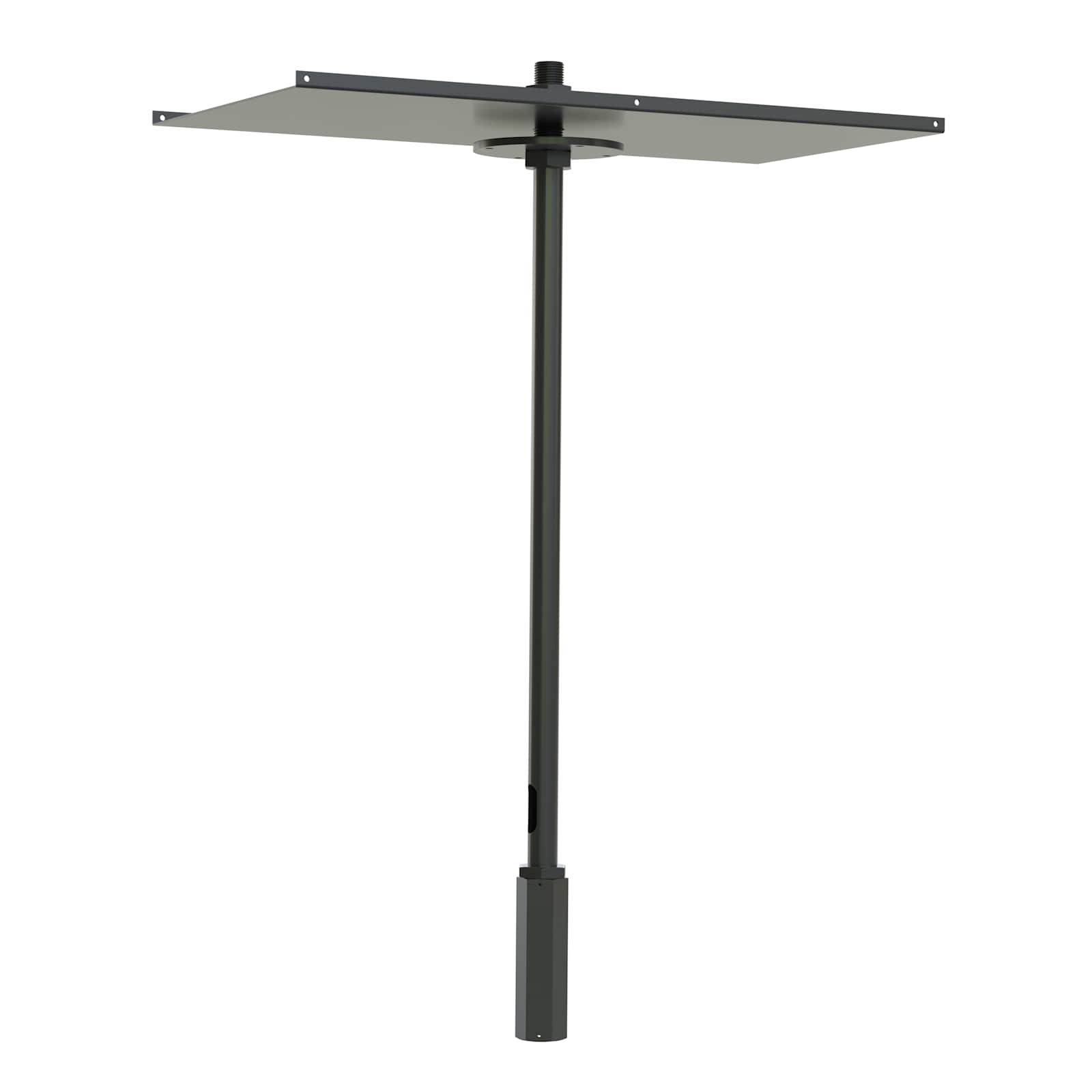

Drop Down Mount for ePTZ Cameras - Long
535-2000-281$384.30

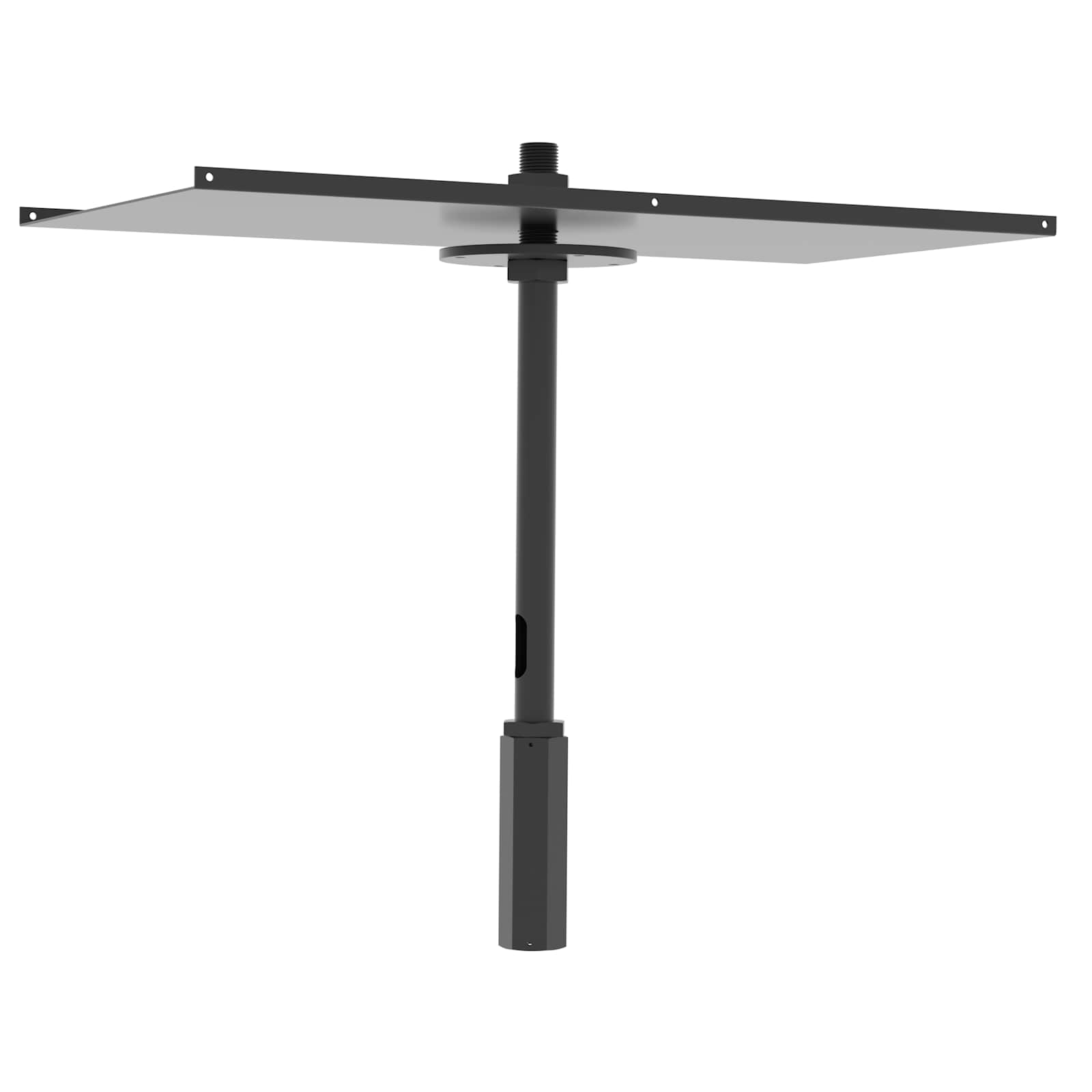

Drop Down Mount for ePTZ Cameras - Short
535-2000-280$384.30
Drop Down Mount for Small PTZ Cameras - Long
535-2000-291$410.40
Drop Down Mount for Small PTZ Cameras - Short
535-2000-290$356.40
Drop Down Mount for Large PTZ Cameras - Short
535-2000-292$410.40
Drop Down Mount for Large PTZ Cameras - Long
535-2000-293$443.70

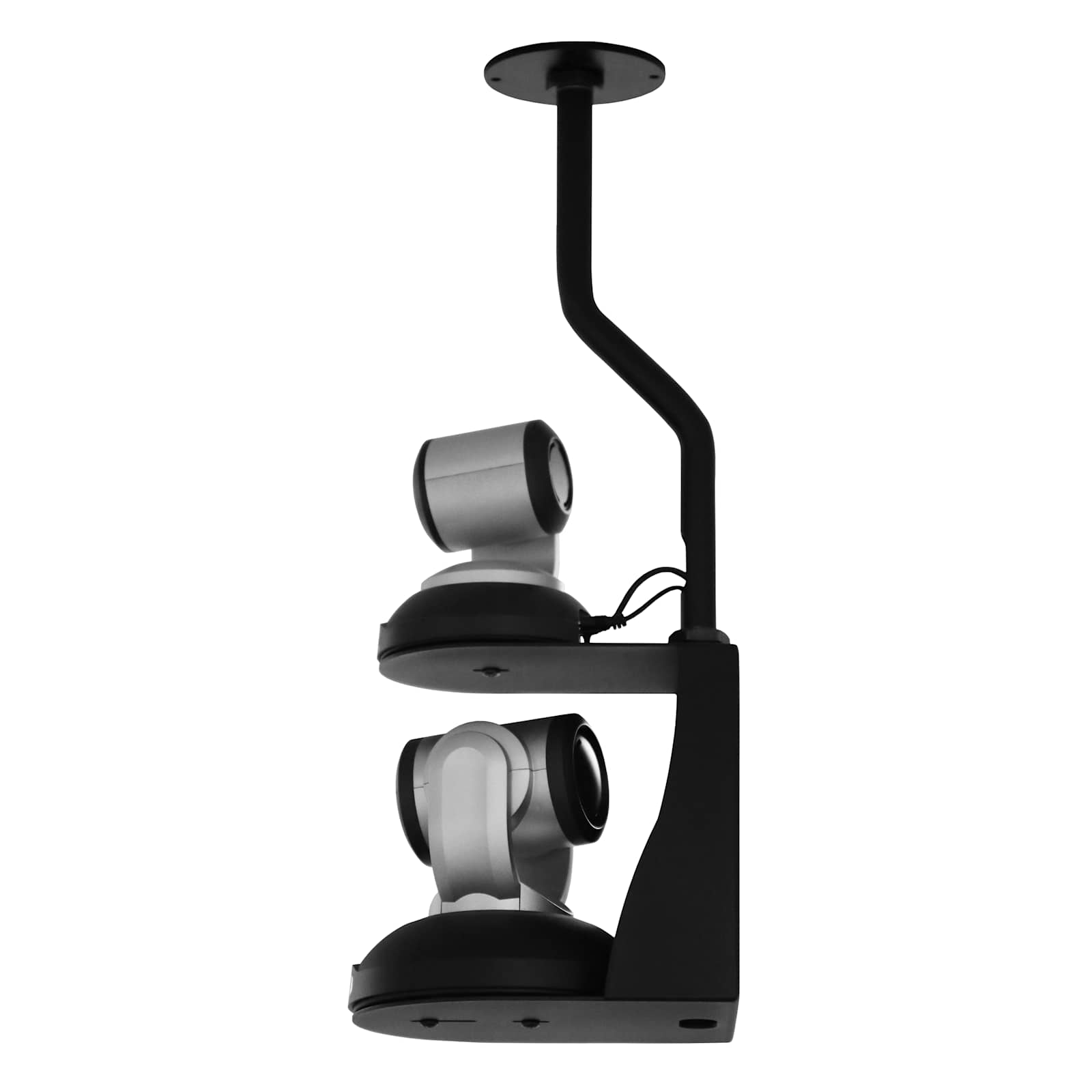

Offset Drop-Down Pole for RoboTRAK Mount
535-2000-045$264.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
Will this adapter work with my Chief CMS Series pipe?
Yes, the 535-2000-400 is specifically designed to screw onto a 1.5-inch drop pipe, such as the Chief CMS Series.
What Vaddio drop mounts are compatible with this adapter?
This adapter works with several Vaddio series, including the 535-2000-280 Short Drop Down Mount for ePTZ Cameras and the 535-2000-292 Short Drop Down Mount for Large PTZ Cameras.
What hardware do I need to secure the Vaddio mount?
The adapter is designed to use the 1"-14 jamb nut that is included with your Vaddio Drop Mount.
Is this adapter TAA compliant?
Yes, the 535-2000-400 is TAA compliant and features a durable steel construction with a black powder coat.
Which technical drawings are available for submittals?
You can access the 535-2000-400 CAD Drawing (dwg) and the Tech Drawing (PDF) via the resources tab for your project submittals.
