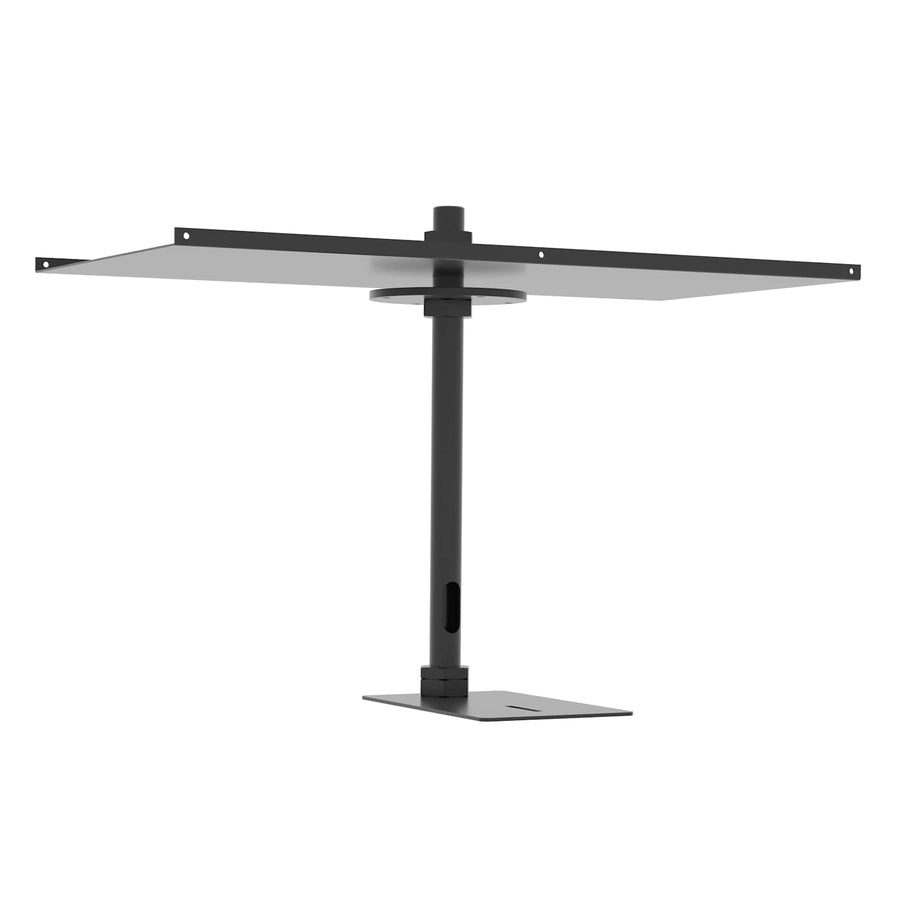

Drop Down Mount for Small PTZ Cameras - Short
Ceiling drop down mount for small PTZ cameras, extending approximately 1-foot below the ceiling
The Vaddio 535-2000-290 is a heavy gauge steel drop down ceiling mount designed to position small PTZ cameras at the desired height. This short version extends the camera approximately 1-foot below the ceiling plane. It is specifically built for Vaddio WideSHOT, WideSHOT SE, and ZoomSHOT camera systems. Beyond Vaddio hardware, this mount offers verified compatibility with a wide range of third-party PTZ cameras. This includes Sony EVI-D70, EVI-D80, EVI-D90, and EVI-D100 models, as well as the EVI-H100. It is also suitable for use with Canon VC-C50i and VC-C50iR cameras, Logitech PTZ Pro 2 units, and Lifesize HD and 10X PTZ models. This TAA compliant mount provides a stable, professional mounting solution for ceiling-based camera installations where standard flush mounting is not feasible.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 8.25 in (21 cm) |
| Height | 13 in (33 cm) |
| Shipping Dimensions | 28" x 14" x 10" (711.2 x 355.6 x 254 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 5.19 in (13.2 cm) |
| Application | Ceiling |
| Color | Black |
| Compatible With | SonyVaddio |
| TAA Compliant | Yes |
| UPC | 840077500405 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the 535-2000-290 work with my Sony EVI series camera?
Yes, this mount is compatible with Sony EVI-D70, EVI-D80, EVI-D90, EVI-D100, and EVI-H100 models.
How far does this mount extend from the ceiling?
This short version of the drop down mount extends the camera approximately 1-foot below the ceiling.
What is the difference between this and the 535-2000-291?
The 535-2000-290 is the 'Short' version, whereas the 535-2000-291 is the 'Long' version of the drop down mount for small PTZ cameras.
Is this mount TAA compliant?
Yes, this mount is TAA compliant and carries FCC and CE certifications.
Which Vaddio cameras are specifically compatible with this mount?
This mount is designed for Vaddio WideSHOT, WideSHOT SE, and ZoomSHOT camera systems.
