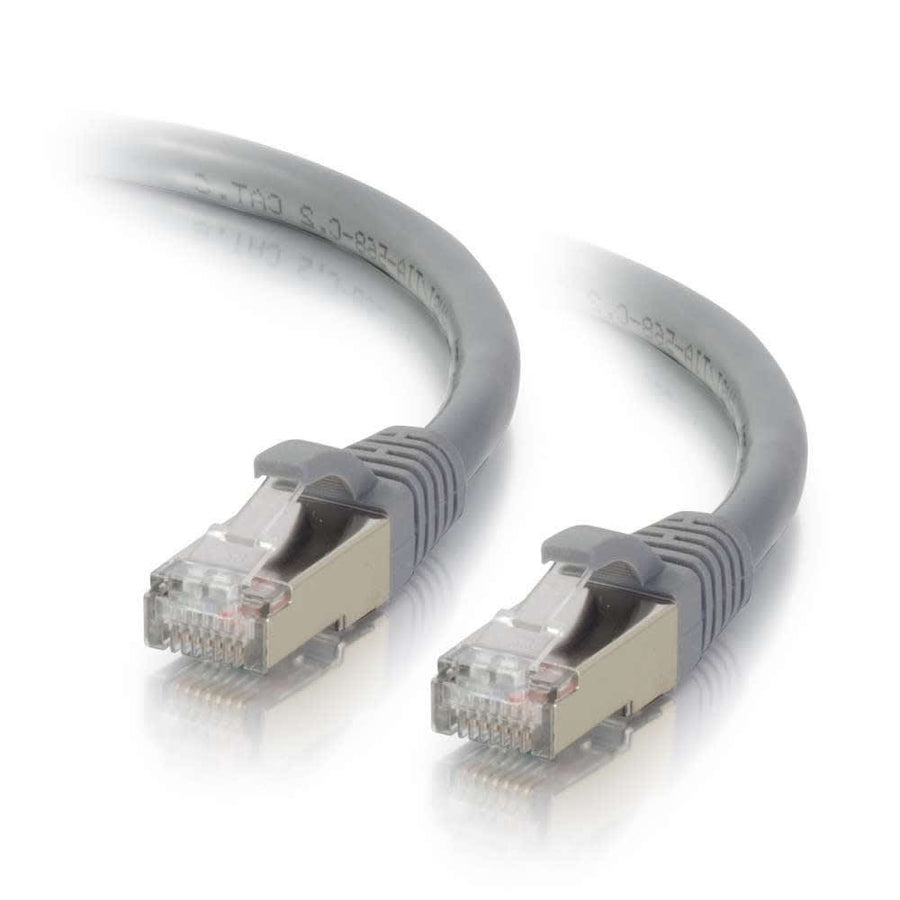

0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Gray
0.5ft Cat6a shielded (STP) patch cable with snagless boots and 26AWG stranded copper conductors
The C2G CG00971 is a 0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable designed to support high-speed 10GBase-T ports and equipment. This gray patch cable is suitable for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It features a shielded SSTP construction to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise. To maintain signal integrity, the individual pairs are bonded together to preserve twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This cable is constructed with 26AWG bare copper stranded conductors and FMPE insulation. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring performance for bandwidth-intensive voice, data, and video distribution applications. The assembly features snagless PVC boots and a 0.24 in (6.2 mm) cable diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009719 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Black
CG00975$14.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum data rate for this CG00971 cable?
This Cat6a patch cable is designed for 10GBase-T equipment, supporting high-speed 10 Gigabit network connections.
Will this cable work for high-bandwidth video and data distribution?
Yes, this cable is engineered for bandwidth-intensive applications and helps reduce impedance and structural return loss (SRL).
What is the wiring scheme for the CG00971?
The cable uses the 568B wiring scheme for its RJ-45 male connectors.
Is this cable suitable for high-interference environments?
Yes, the shielded STP (SSTP) design is intended to protect your 10 Gigabit connection from noise and electromagnetic interference.
What is the operating temperature range for this patch cable?
The cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
