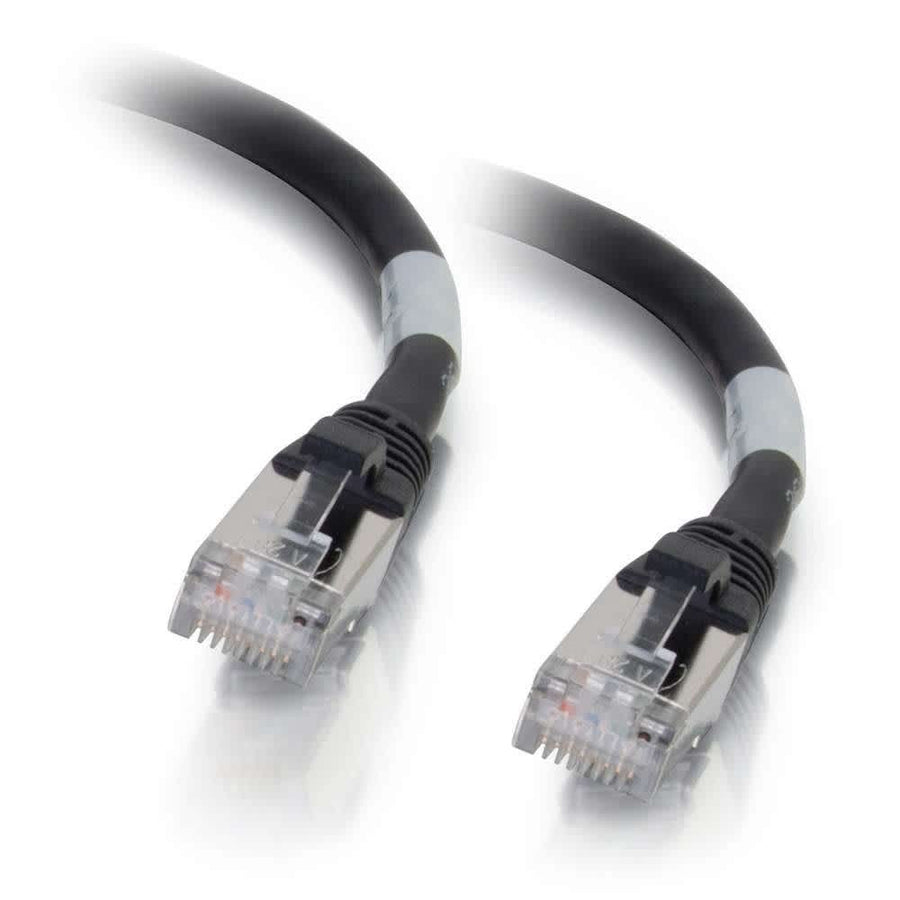

0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Black
0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Patch Cable in Black for 10GBase-T network connections
The C2G CG00975 is a 0.5 ft (0.15 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable designed for high-speed 10GBase-T network environments. This black cable is specifically engineered to protect 10 Gigabit network connections from electromagnetic interference and noise by utilizing a Shielded Twisted Pair (STP) construction. It is an ideal solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels where signal integrity is critical. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive applications. The cable features 26 AWG stranded bare copper conductors and is constructed with FMPE (Foam Polyethylene) insulation to help maintain twist-spacing through the termination point. This design is specifically intended to minimize Near-End Crosstalk (NEXT) levels, reducing both impedance and structural return loss (SRL). The RJ-45 male connectors are equipped with snagless, booted PVC hoods to prevent accidental disconnection during installation or maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009757 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

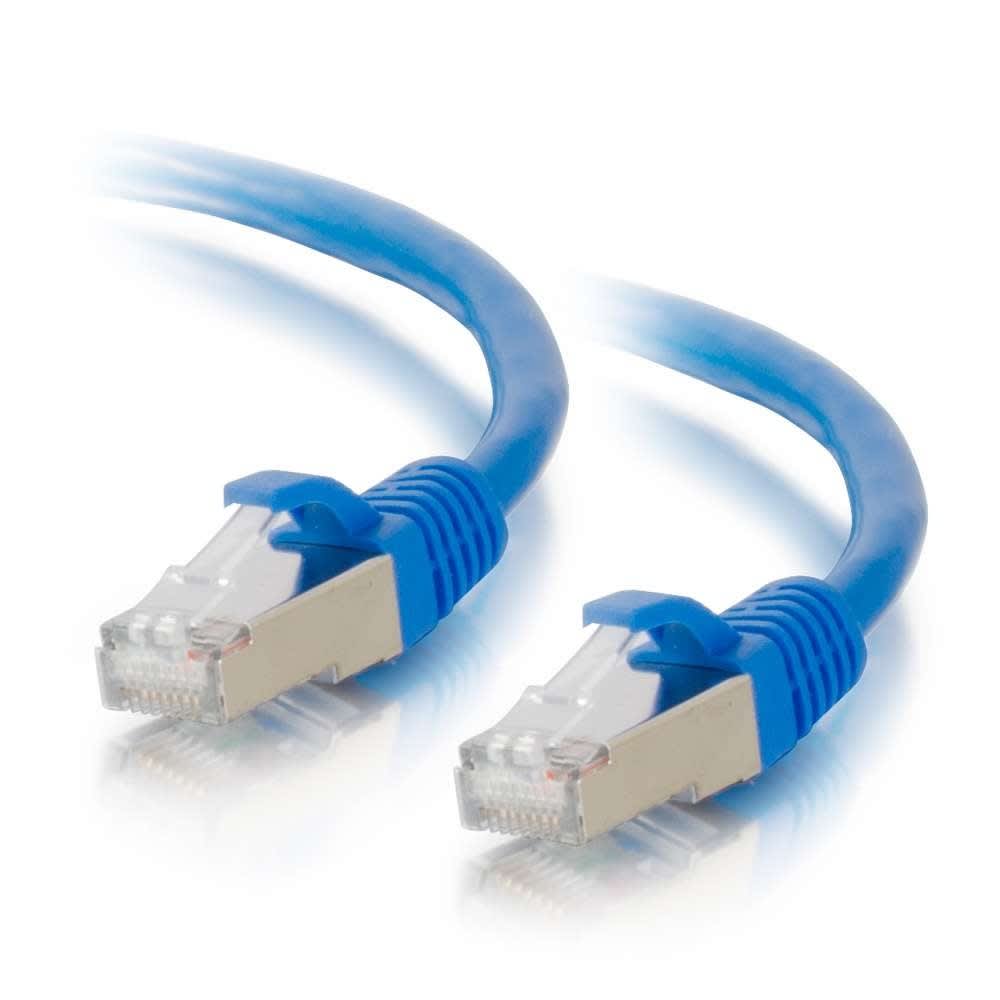

0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Blue
CG00973$14.99

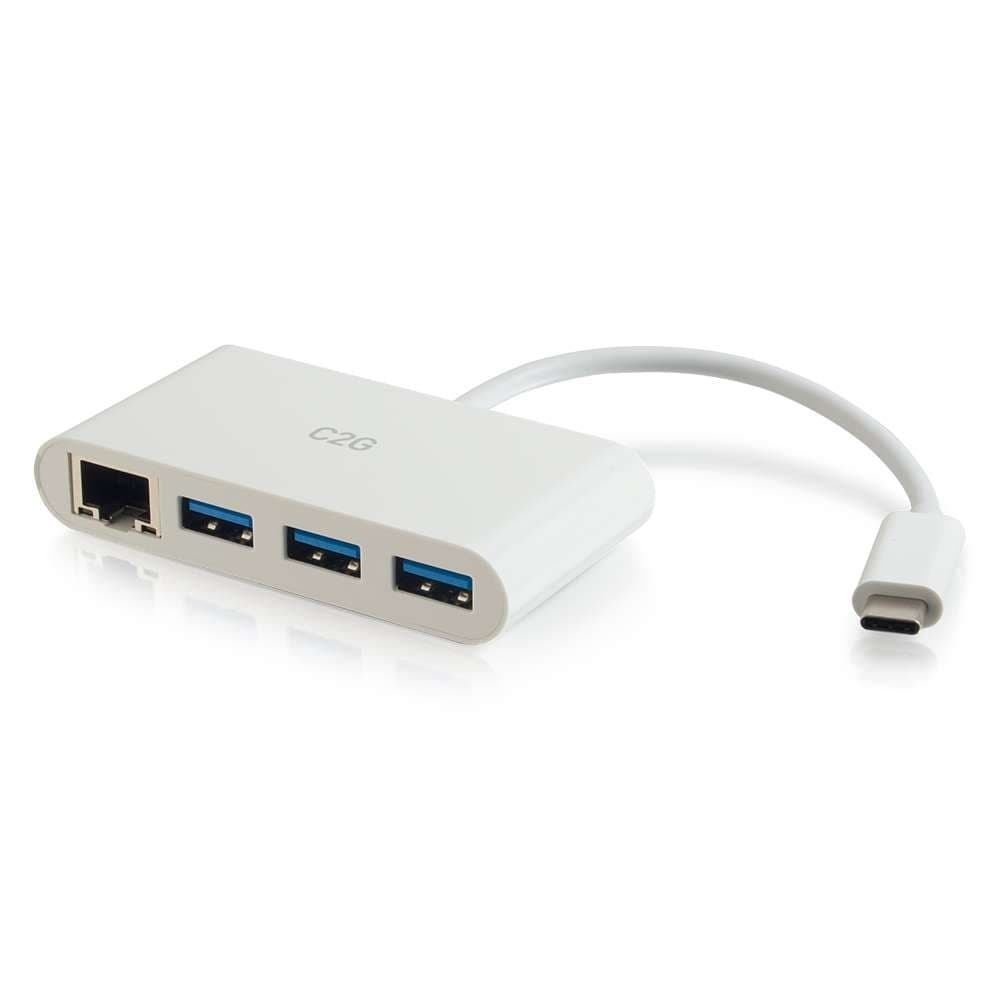

USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99

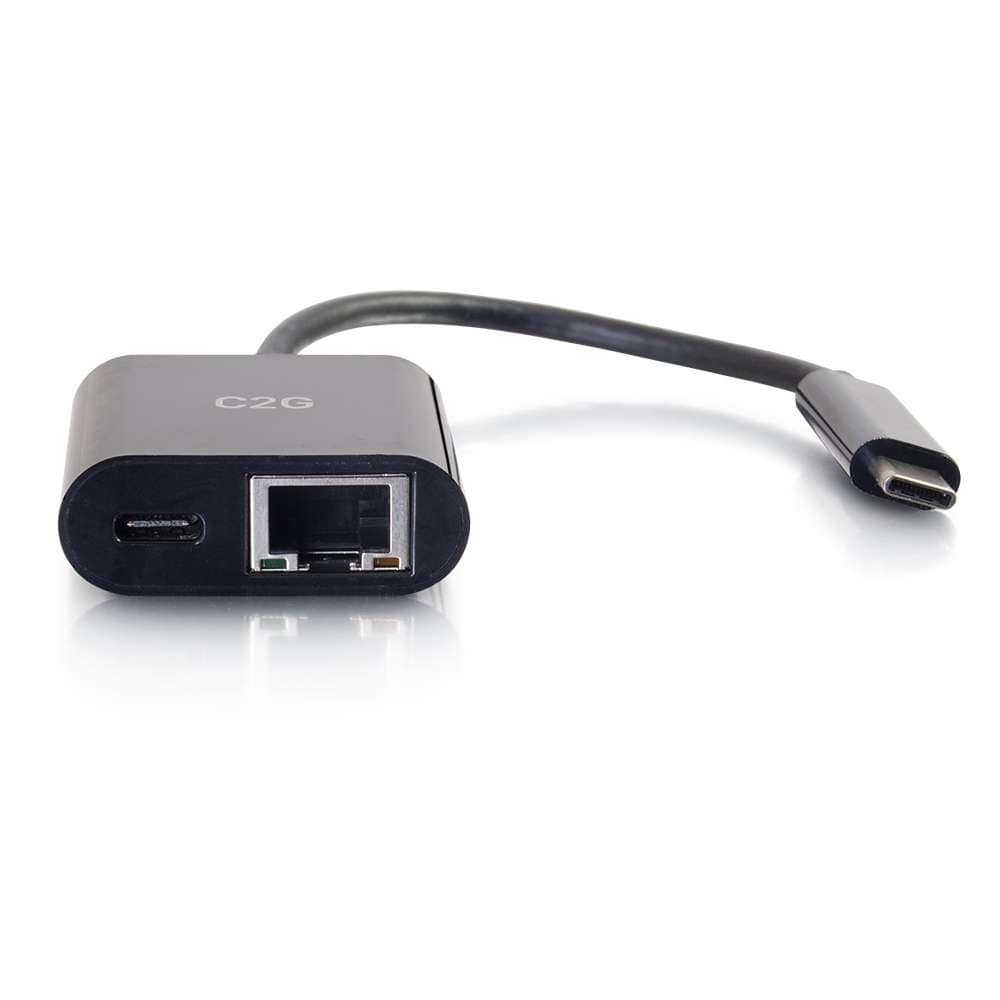

USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99

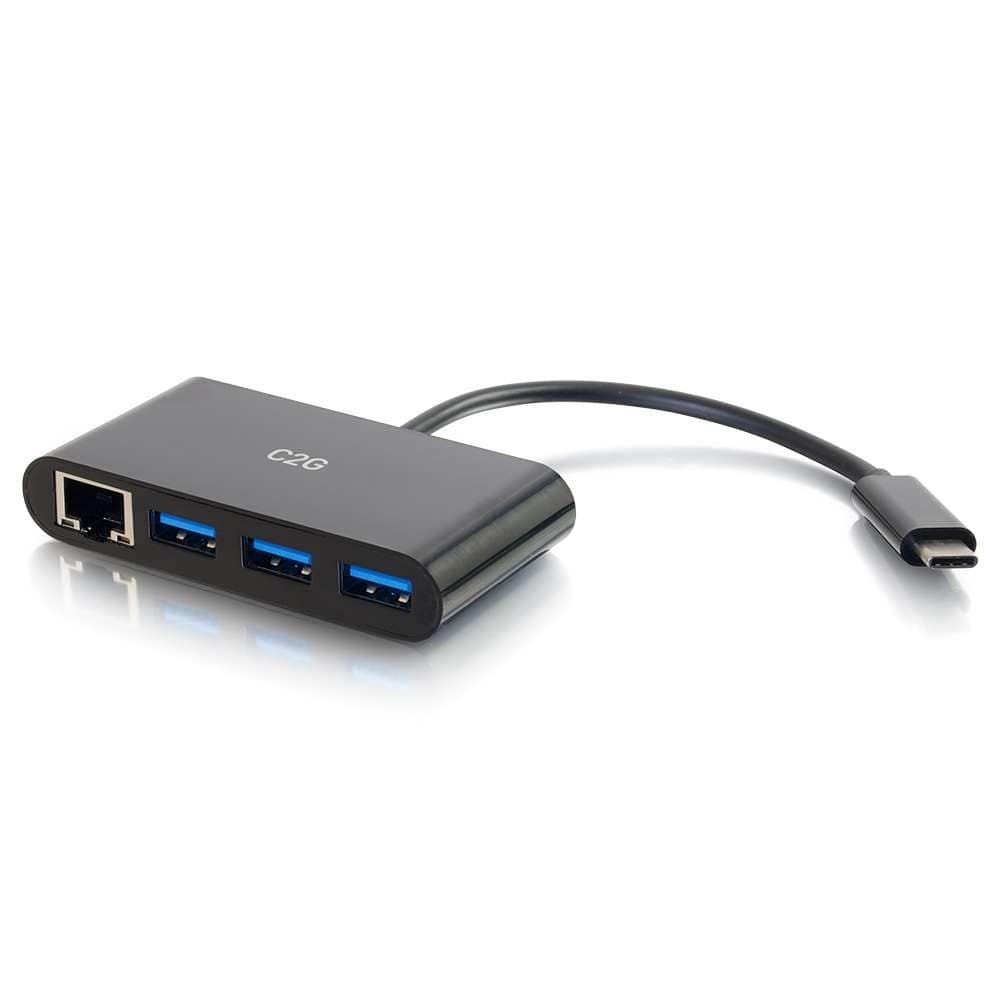

USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99

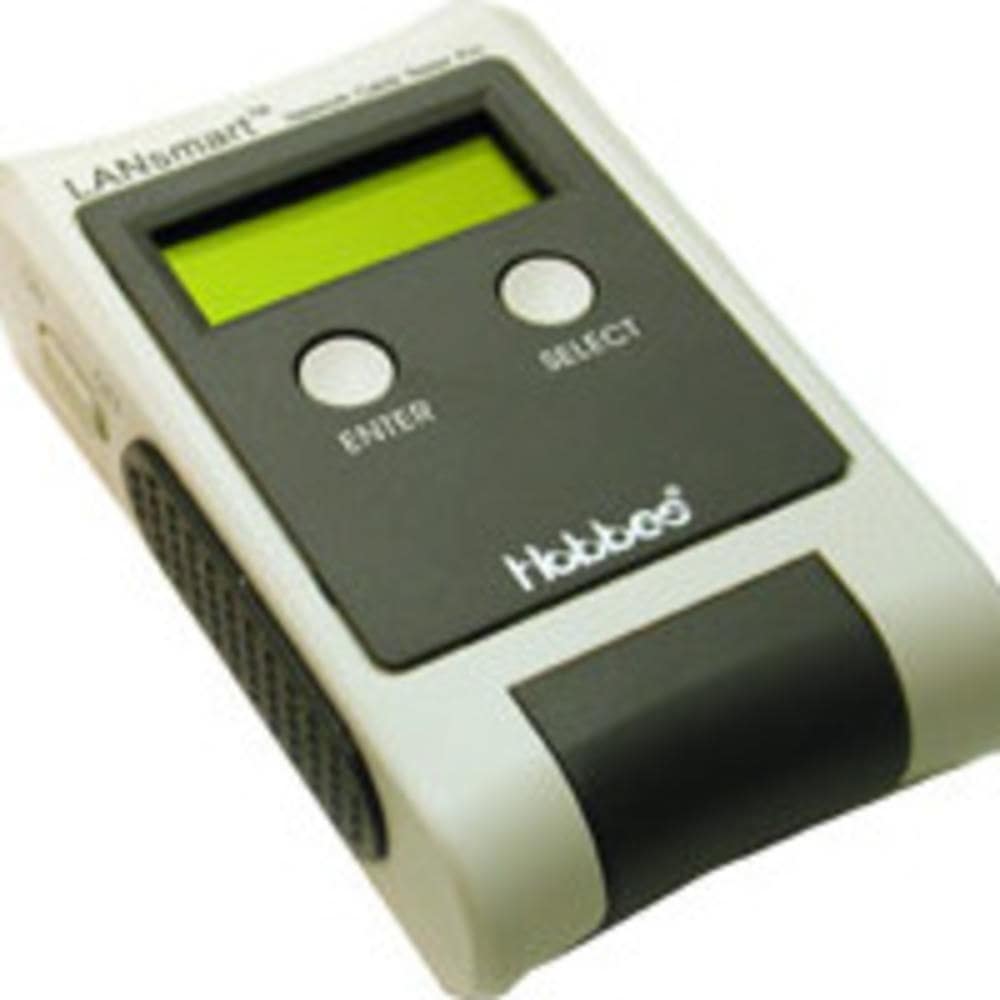

LANsmart TDR Cable Tester
CG39002$786.99

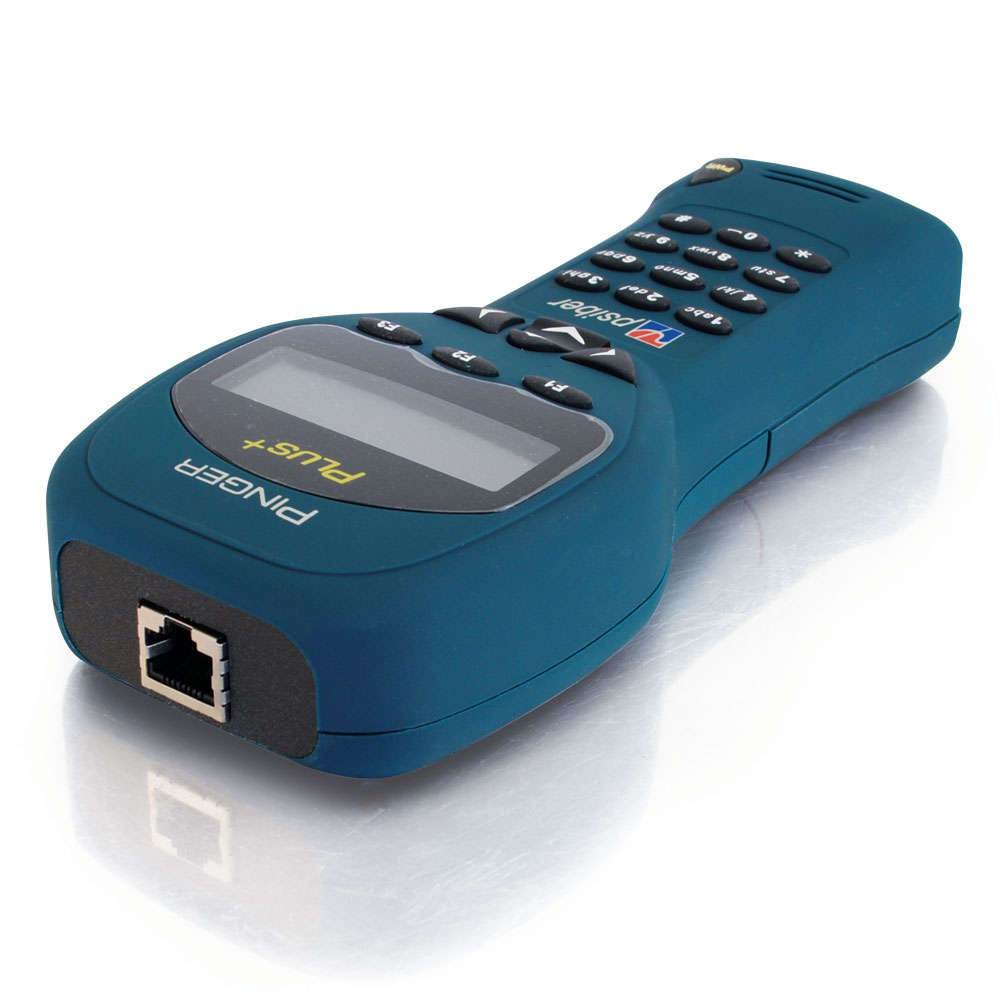

Psiber Pinger Plus Network IP Tester
CG29431$1,352.99

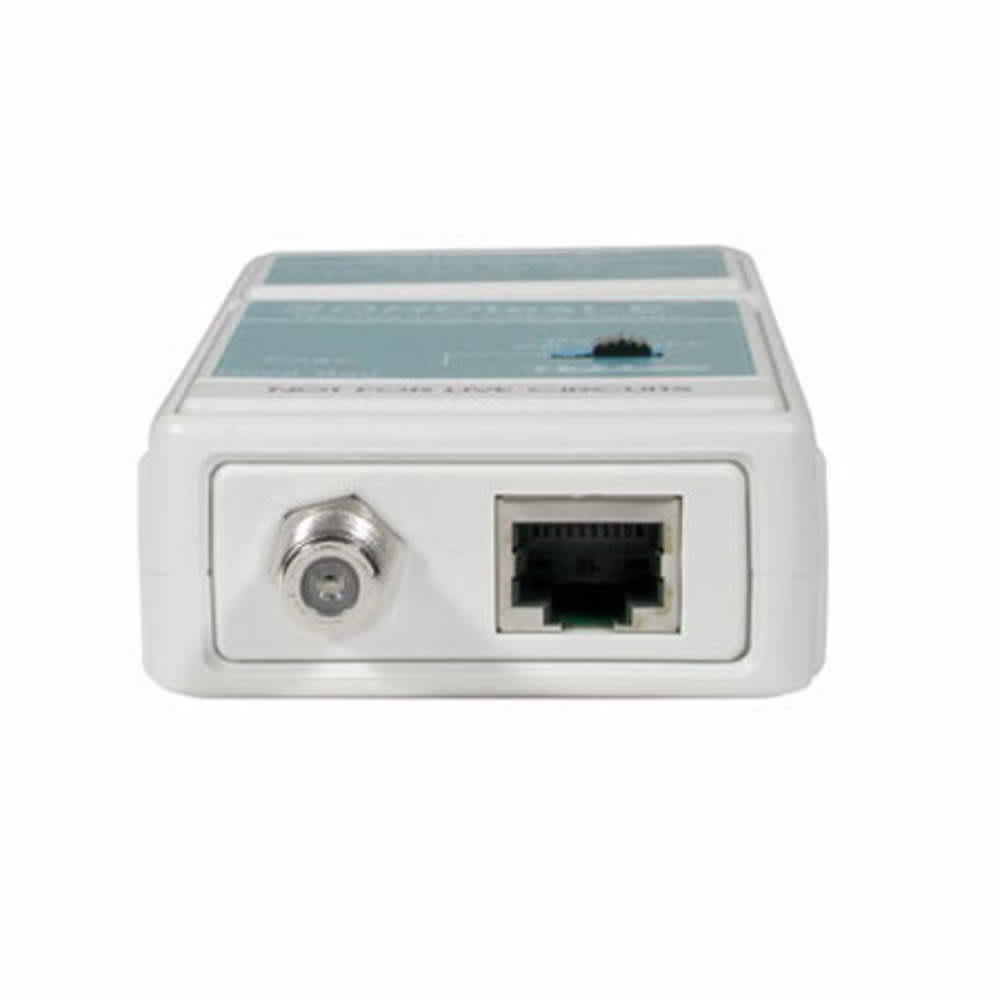

SOHOTest-E™ Residential Cable Tester
CG39004$128.99

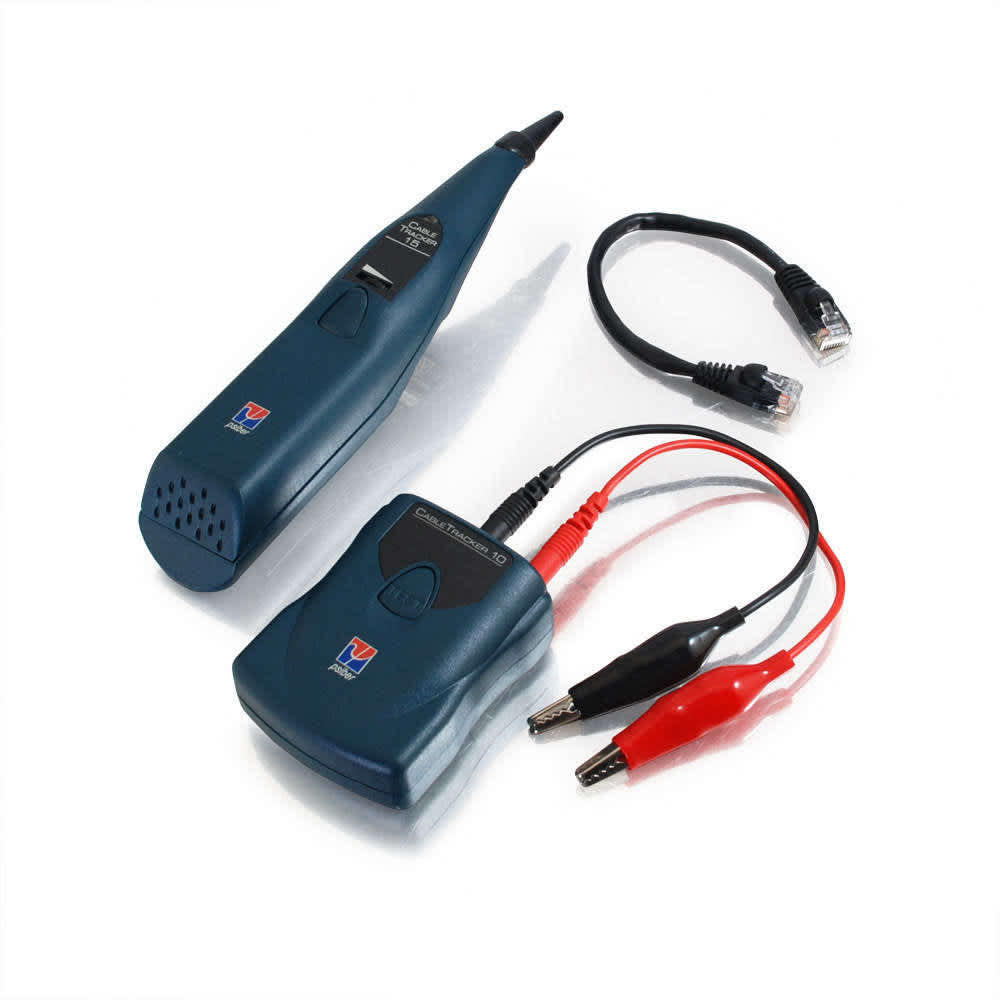

Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99

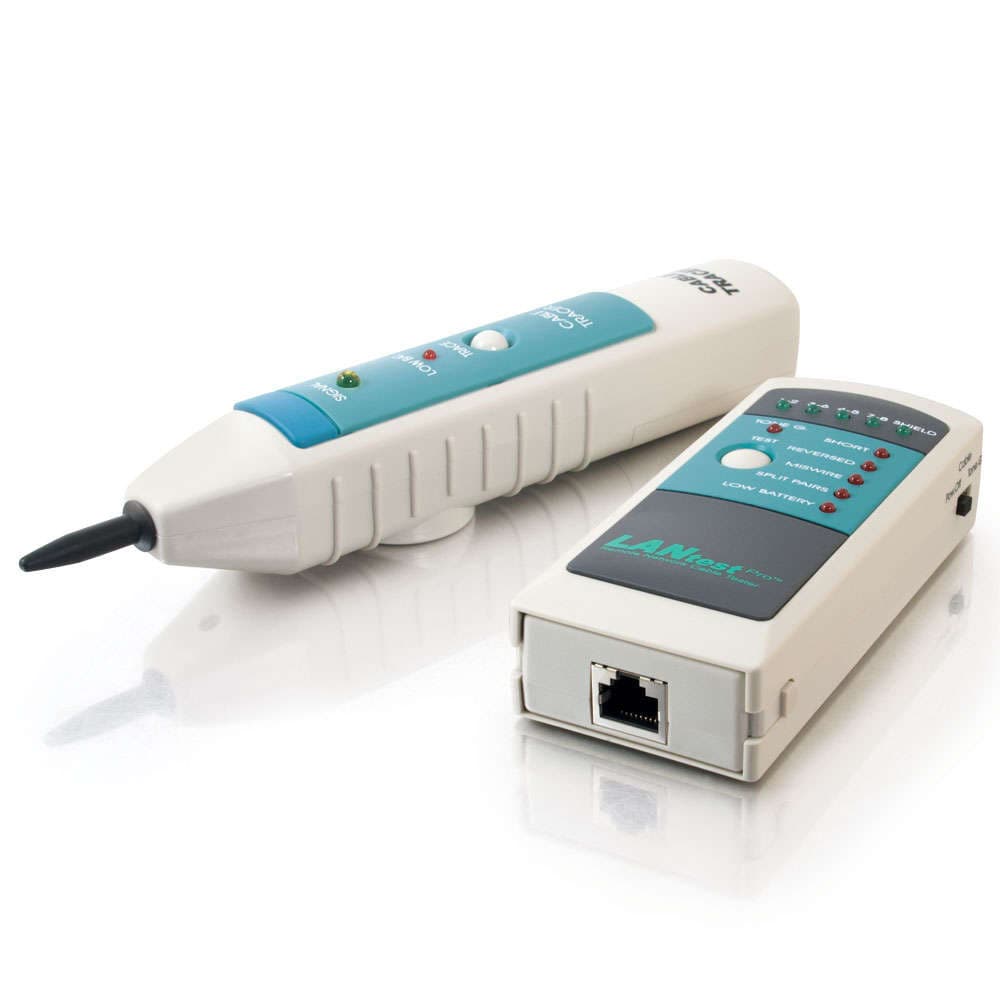

LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99

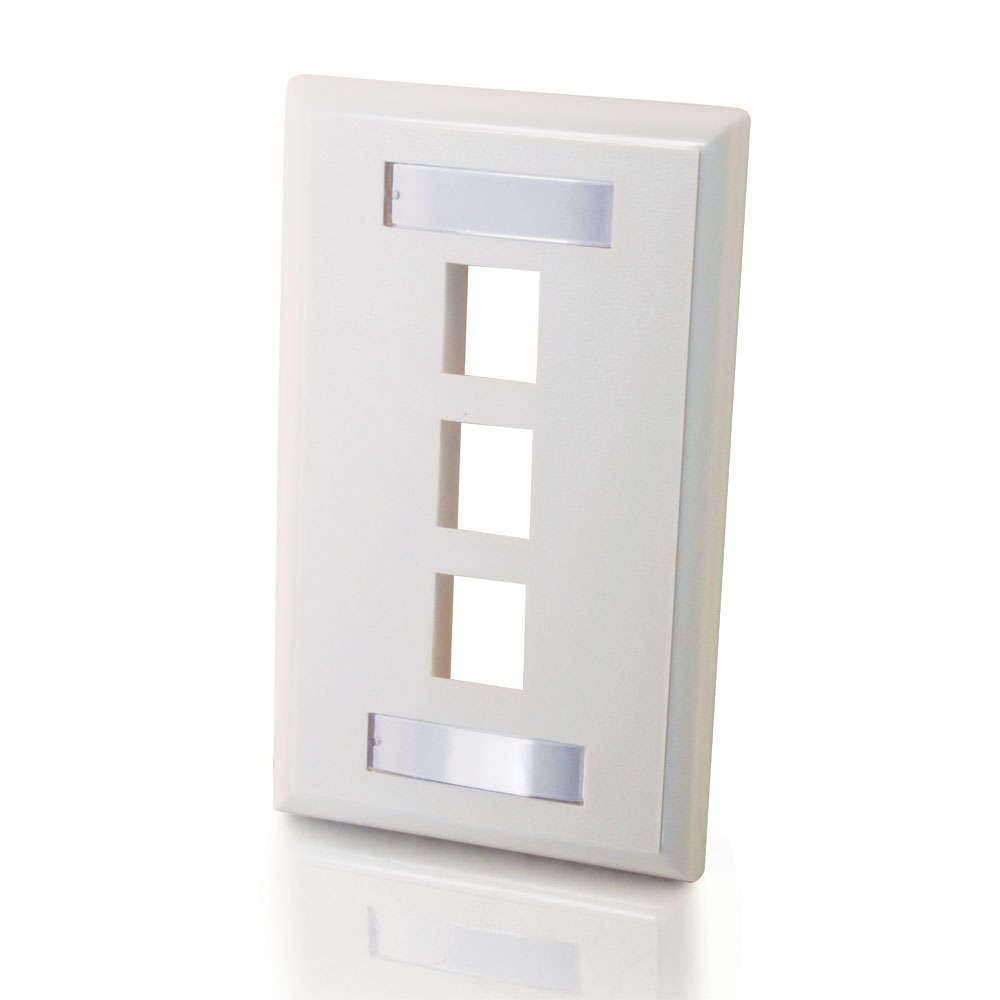

Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99

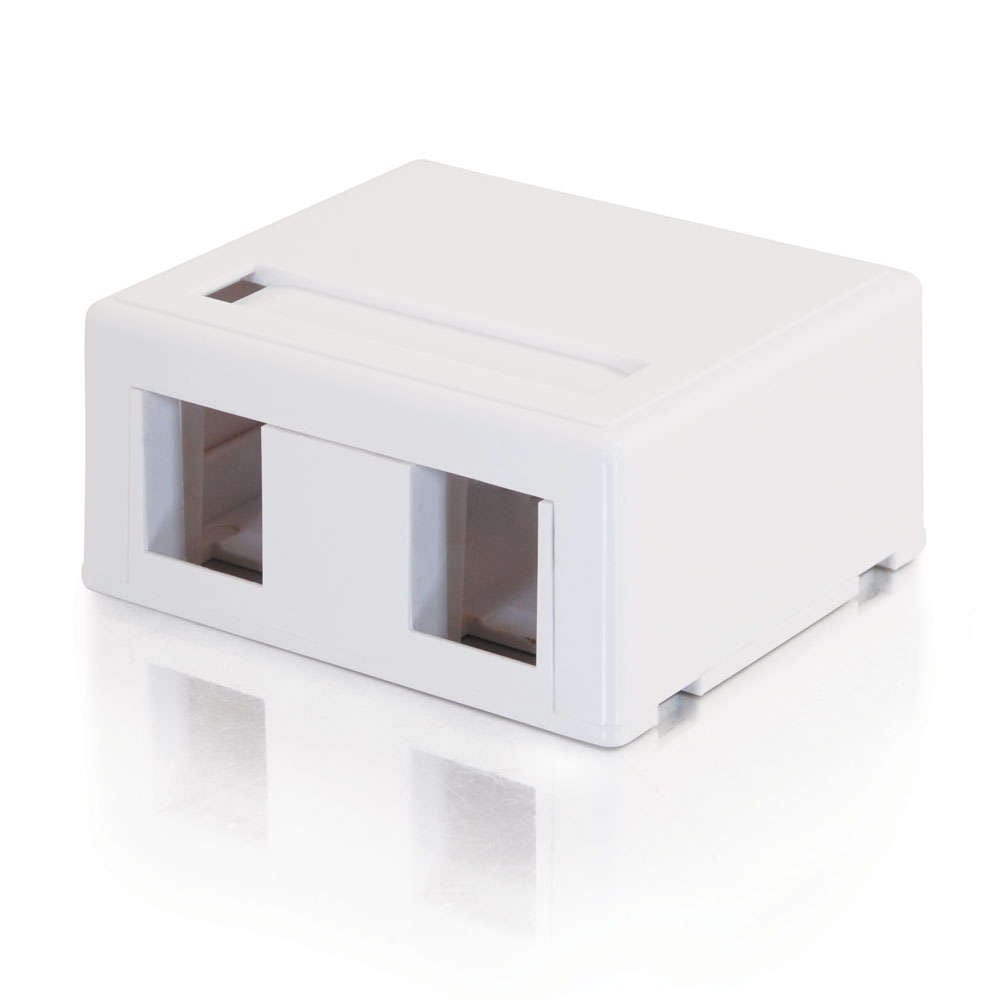

2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum length of the C2G CG00975 cable?
The C2G CG00975 is a 0.5 ft (0.2 m) patch cable, making it an ideal short-length connection for high-density patch panels or rack equipment.
Is the C2G CG00975 suitable for 10GbE networking?
Yes, this Cat6a shielded cable is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters.
What is the wiring scheme for this patch cable?
The C2G CG00975 uses a 568B wiring scheme for all connections.
How do I find a different color of this Cat6a cable?
This cable is available in multiple colors to assist with network color-coding; for example, SKU CG00973 is the blue version of this same 0.5ft cable.
What temperature range can this cable operate in?
The cable is rated for an operating temperature range of -4° to 176°F (-20° to 80°C).
