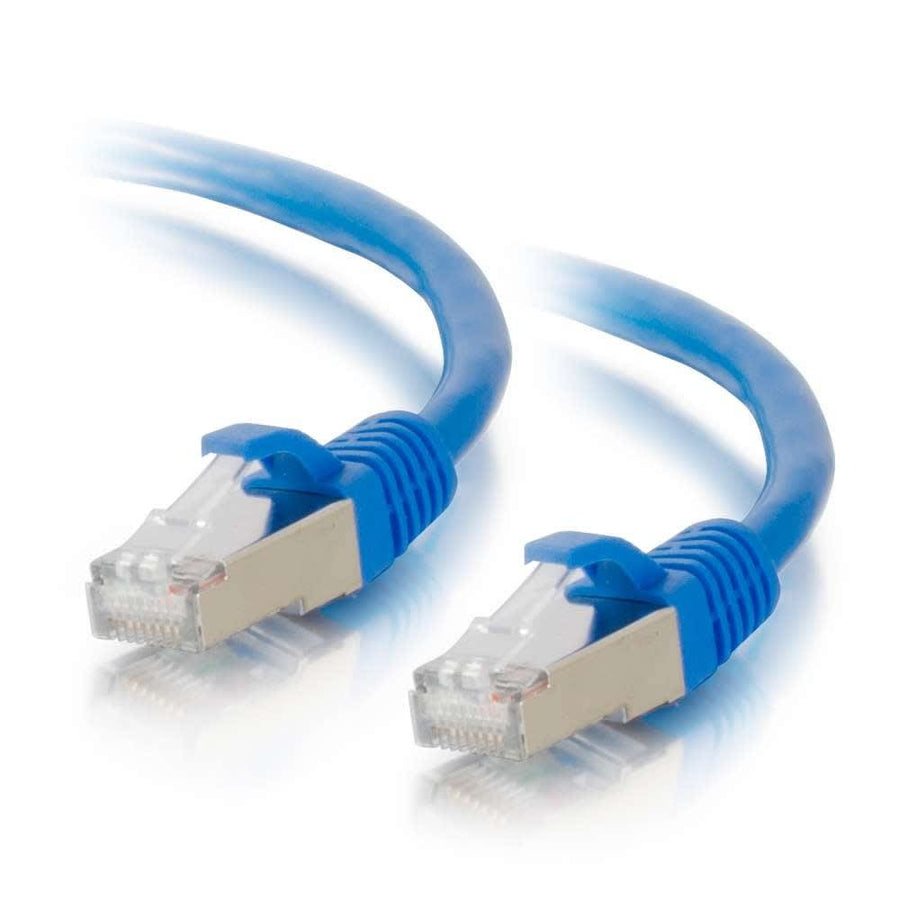

0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Blue
0.5ft (0.2m) Cat6a snagless shielded (STP) blue Ethernet patch cable for 10GBase-T network equipment
The C2G CG00973 is a 0.5ft (0.2m) blue Cat6a snagless shielded (STP) Ethernet network patch cable designed for high-speed 10GBase-T environments. This cable is intended for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels to protect 10 Gigabit network connections from electromagnetic interference and noise. The construction features 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation. Each individual pair is bonded together to maintain twist-spacing up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This Cat6a patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, addressing impedance and structural return loss (SRL) for bandwidth-intensive video, voice, and data distribution. This specific SKU is part of a series available in various lengths and colors, such as the black version (SKU: CG00975).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009733 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Black
CG00975$14.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the length and color of the CG00973 cable?
The CG00973 is a 0.5ft (0.2m) blue Ethernet patch cable.
Is this Cat6a cable suitable for 10 Gigabit networking?
Yes, this cable is designed for 10GBase-T ports and equipment, providing protection against electromagnetic interference.
What is the wiring scheme used for this patch cable?
This C2G patch cable utilizes the 568B wiring scheme.
Does this cable meet industry standards for Cat6a?
Yes, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
What is the difference between CG00973 and CG00975?
Both are 0.5ft Cat6a snagless shielded cables, but CG00973 is blue while CG00975 is black.
