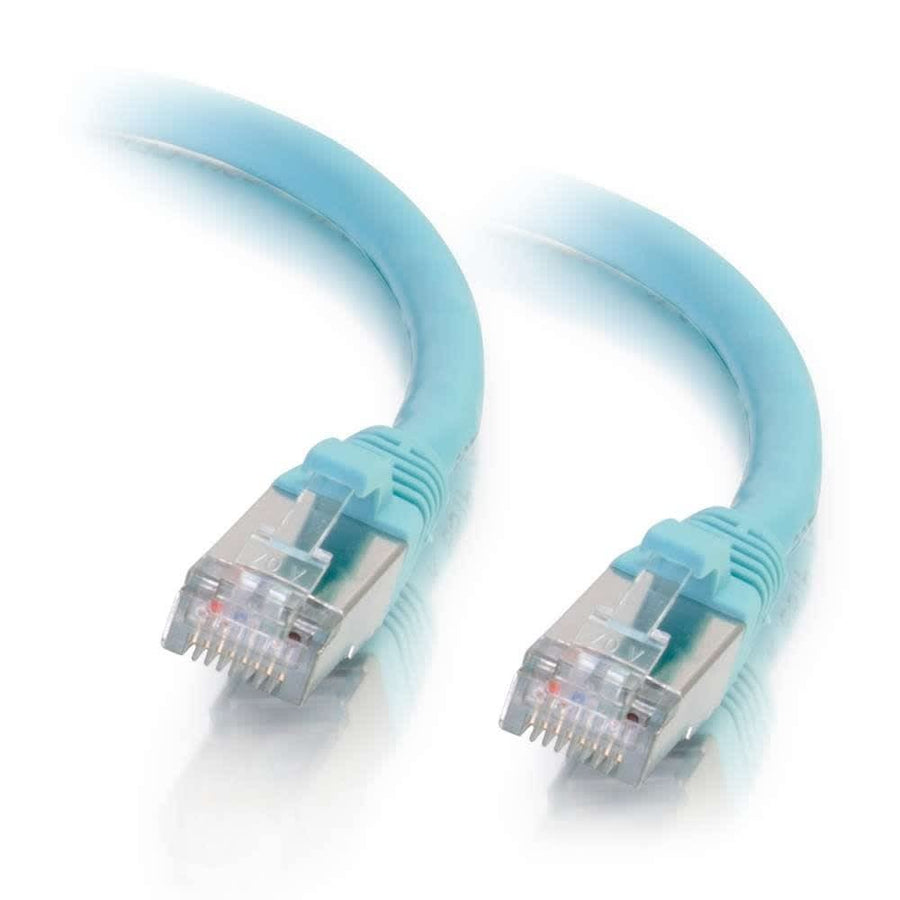

0.5ft (0.15m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Aqua
0.5 ft (0.2 m) Cat6a Snagless Shielded STP Ethernet patch cable in Aqua, designed for 10GBase-T high-speed network connections
The C2G CG00977 is a 0.5 ft (0.2 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in Aqua, engineered specifically for 10GBase-T ports and high-speed equipment. This cable is designed to protect sensitive 10 Gigabit network connections from electromagnetic interference and noise by utilizing a shielded SSTP construction. It is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive video, voice, and data distribution. The construction features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to maintain twist-spacing and reduce Near-End Crosstalk (NEXT) levels up to the termination point. The snagless, booted RJ-45 male connectors feature a PVC hood material to protect the locking tabs during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009771 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum operating temperature for the CG00977?
This Cat6a patch cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Will this cable work with 10 Gigabit networking equipment?
Yes, this cable is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters.
What is the wiring scheme for this C2G patch cable?
The CG00977 uses the 568B wiring scheme for all connections.
Is this cable suitable for high-bandwidth video or voice distribution?
Yes, the SSTP design is built to handle bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
What certifications does this product hold?
This product is compliant with CE, REACH, and RoHS standards, and is also listed as NDAA 889 compliant.
