WR Series Roll Out Racks in Steel Enclosure - WR-44-42
44 RU steel enclosure roll out rack with a rotating frame for easy rear access to equipment in space-constrained environments

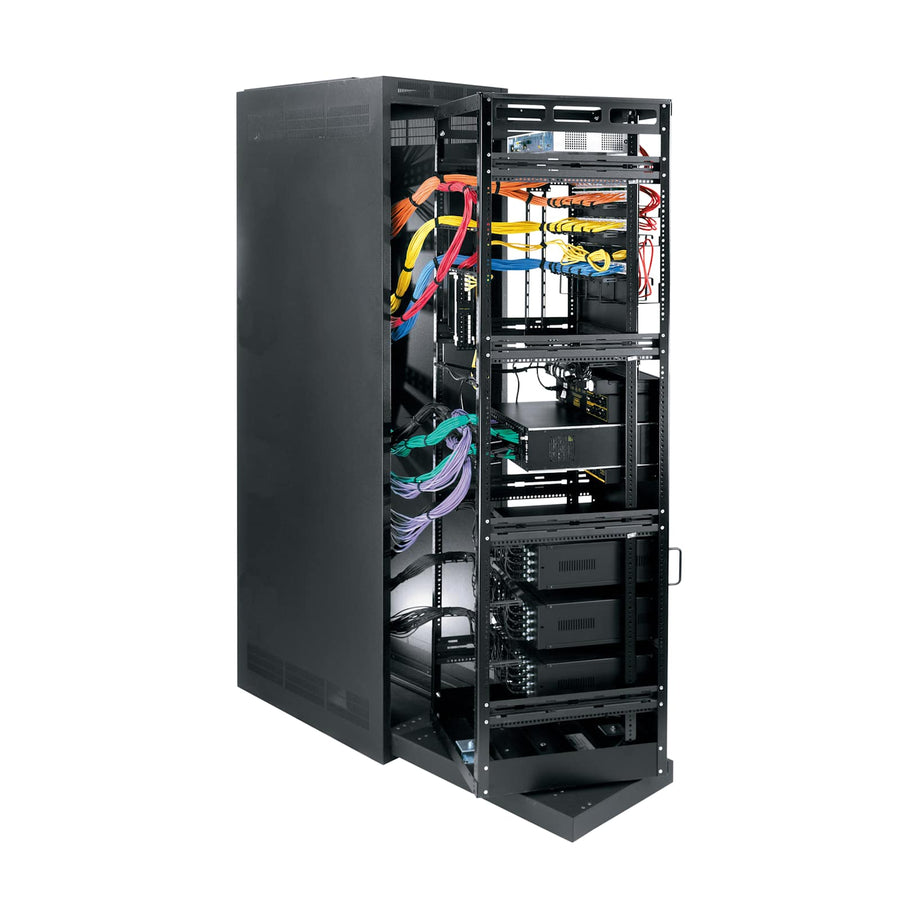

The Middle Atlantic WR-44-42 is a 44 RU steel enclosure designed to solve the challenge of servicing equipment in tight spaces. When an equipment bay is placed against a wall or positioned back-to-back with another rack, an access aisle is often impossible to maintain. This WR Series enclosure solves that by utilizing a detachable, rotating rack frame that pulls out for complete rear access. This allows installers to manage connections for large audio, video, or security equipment without needing clearance behind the unit. The host enclosure can be pre-installed on-site, and the frame itself can be integrated with equipment and tested off-site before final installation. This 44 RU system features standard 10-32 threaded front and rear rackrails with marked spaces and optimized ventilation for passive thermal management. The 24 in (61 cm) wide enclosure includes 4" laser knockouts for cable pass-through or ganging multiple racks together.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42.88 in (108.9 cm) |
| Height | 88.86 in (225.7 cm) |
| Product Weight | 334.6 lbs (151.8 kg) |
| Rack Units | 44 RU |
| Shipping Weight | 375 lbs (170.1 kg) |
| UL Load Capacity | 750 lbs (340.2 kg) |
| Usable Depth | 36 in (91.4 cm) |
| Usable Height | 77 in (195.6 cm) |
All other specifications 7
| Width | 24 in (61 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747102899 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
550 CFM Fan Top with Controller
MW-10FT-FC$924.30
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
44 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-44-OP$349.20
Single LED Work Light
LT-CABUTL-SINGLE$261.00
44 RU Plexi Front Door for WR Racks
WRPFD-44$1,076.40
1 RU Brush Grommet Panel
BR1$86.40
44 RU Solid Front Door for WR Racks
WRFD-44$478.80
Questions about this part
How much weight can the WR-44-42 rack hold?
This unit has a UL Load Capacity of 750 lbs (340.2 kg) and a product weight of 334.6 lbs (151.8 kg).
What is the usable depth for equipment mounting?
The WR-44-42 has an overall depth of 42.88 in (108.9 cm) and provides a 36 in (91.4 cm) usable depth.
What accessories are needed for the WR-44-42?
The rack frame is designed to roll out and rotate without requiring any additional accessories. Compatible items include the WRPFD-44 Plexi Front Door or the WRFD-44 Solid Front Door.
Can I gang multiple WR series racks together?
Yes, the enclosure includes 4" laser knockouts specifically provided for cable pass-through and ganging multiple racks.
Which document is best for submittal planning?
For technical drawings and submittals, the WR Series Roll Out Rotating System in Steel Host Enclosure CAD Technical Specification Drawings (dwg) is available.
