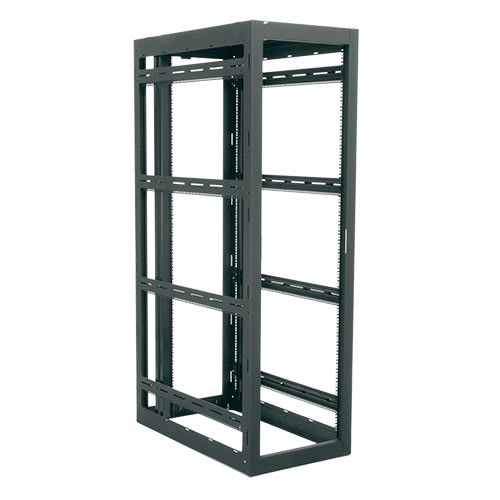

WMRK Series 24 Inches Wide Rack - WMRK-4236
24-inch wide, 42 RU floor standing rack designed for mounting deep servers in raised-floor environments
The Middle Atlantic WMRK-4236 is a 42 RU floor standing rack specifically engineered for mounting deep equipment within standard 24-inch wide raised-floor enclosures. This frame-only configuration provides a high-capacity foundation with a 10000 lbs (4535.9 kg) weight capacity, making it an ideal solution for heavy server deployments. Its 24-inch overall width is optimized to fit the narrow footprints common in raised-floor environments, while its 36 in (91.4 cm) total depth provides a usable depth of 33.5 in (85.1 cm) for hardware installation. This rack is TAA compliant and seismic rated, meeting ASCE 7-10 standards with a seismic load capacity of 1090 lbs (494.4 kg). The fully welded construction ensures maximum stability, even when multiple units are gangable for larger deployments. For ease of installation, the unit includes two pairs of adjustable cage nut rack rails, one pair of Z-rail side-mount adapters configured for most major server manufacturers and slide kits, leveling feet, and 100 pieces of 6mm cage nuts and hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 79.81 in (202.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 176 lbs (79.8 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 33.5 in (85.1 cm) |
| Usable Height | 73.5 in (186.7 cm) |
All other specifications 13
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 23.94 in (60.8 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| Side Panel | No |
| TAA Compliant | Yes |
| UPC | 656747098963 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 1090 lbs (494.4 kg) |
Resources
You'll need these with it
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
100 CFM Fan Panel, 27dB
UQFP-4$630.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Single LED Work Light
LT-CABUTL-SINGLE$261.00

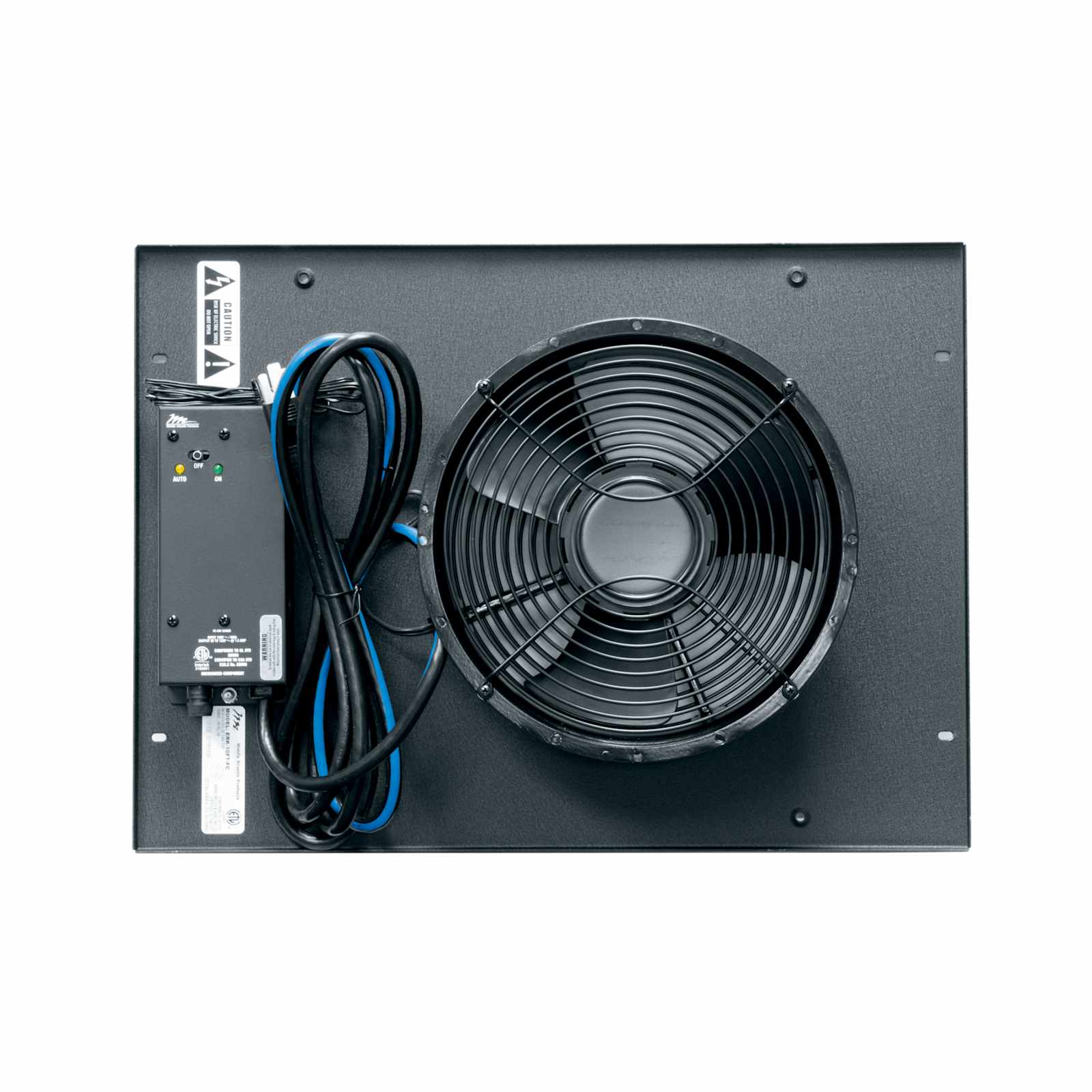

550 CFM Fan Top for ERK Series with Controller ERK Series
ERK-10FT-FC$877.50
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00

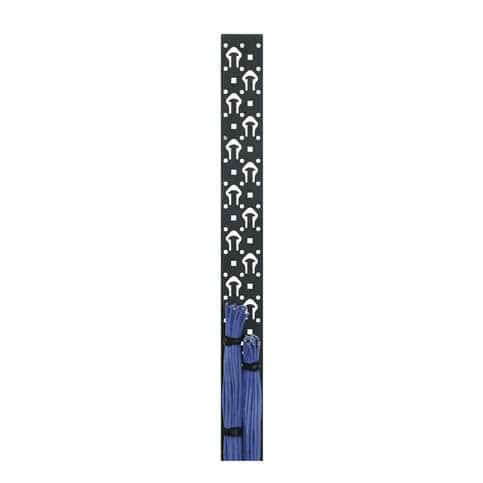

40 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-40-OP$335.70
42 RU Vented Front Door for WMRK Racks, 64% Open
LVFD-WMRK-42$891.00

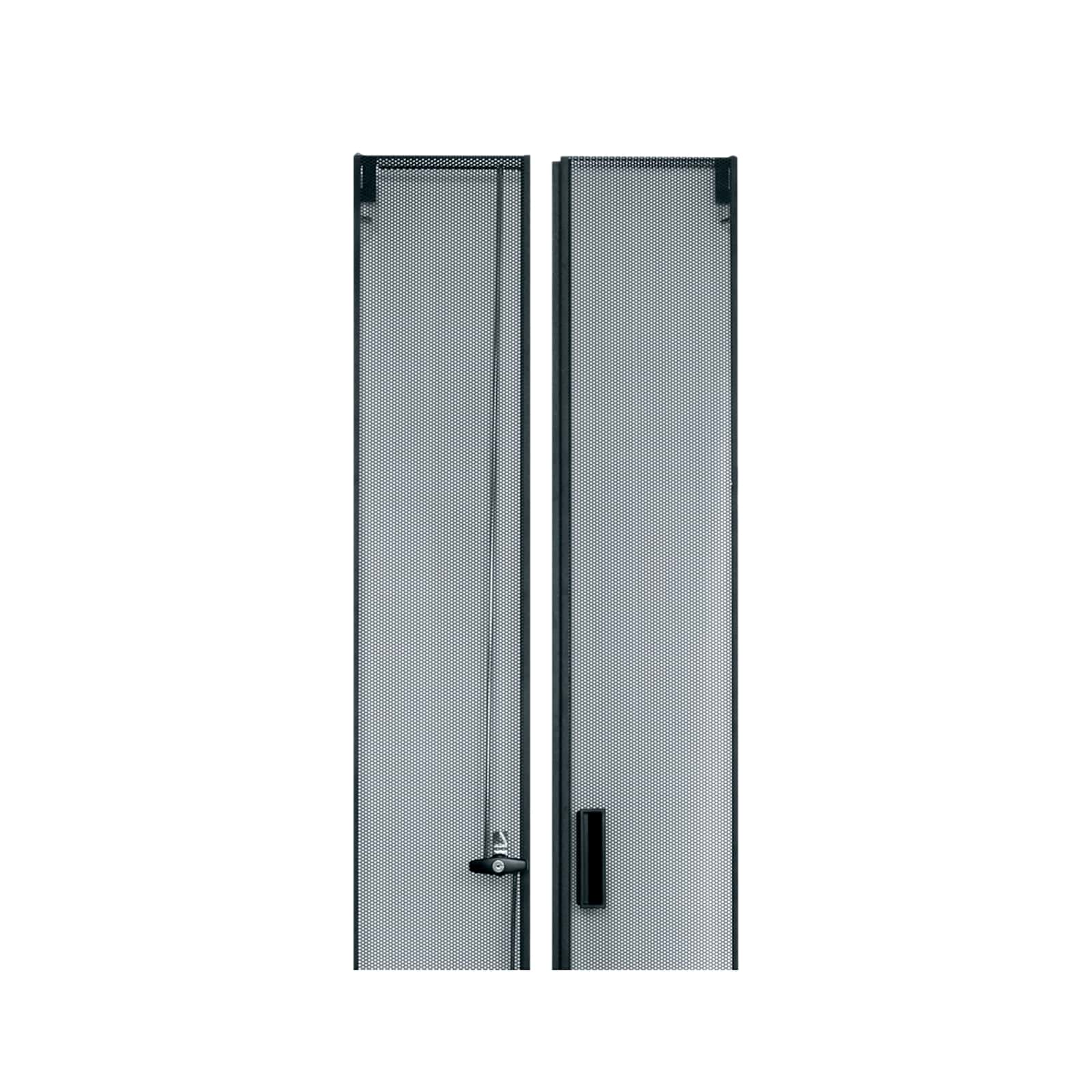

42 RU Split Vented Door for WMRK Racks
CLVRD-WMRK-42$918.90

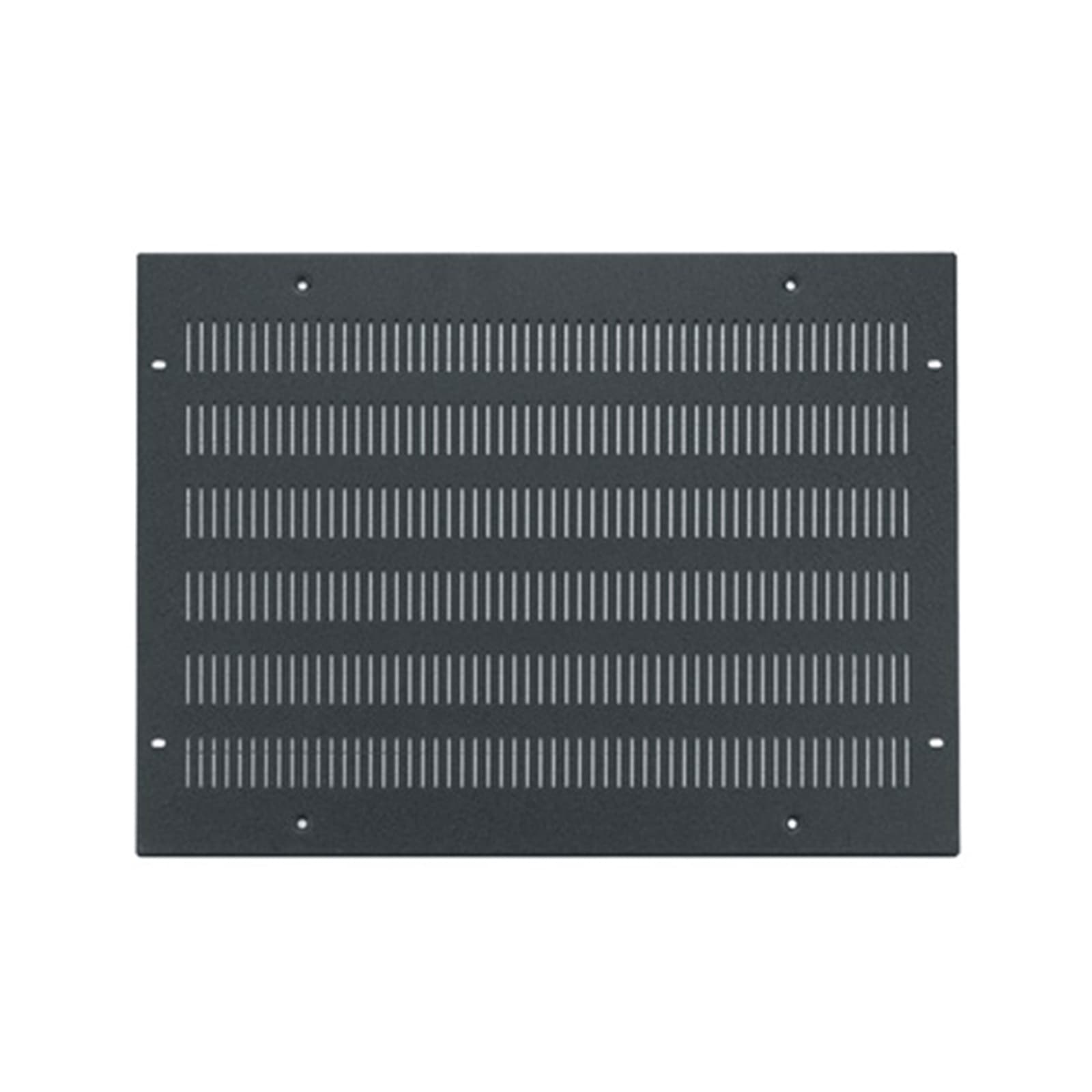

Vented Top ERK Series
ERK-VT$78.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the WMRK-4236 fit my deep servers?
Yes, this rack features a 33.5 in (85.1 cm) usable depth, making it specifically designed to accommodate deep server equipment in raised-floor environments.
What hardware is included for installation?
The WMRK-4236 ships with leveling feet, two pairs of adjustable cage nut rack rails, one pair of Z-rail side-mount adapters, and 100 pieces of 6mm cage nuts and hardware.
Is this rack suitable for seismic environments?
Yes, this model is seismic rated and meets ASCE 7-10 standards with a seismic load capacity of 1090 lbs (494.4 kg).
Can I add doors to this WMRK-4236 rack?
While this is a frame-only configuration, it is compatible with various doors, including the LVFD-WMRK-42 42 RU Vented Front Door and the CLVRD-WMRK-42 42 RU Split Vented Door.
What is the difference between this and a pre-configured model?
This SKU is a frame-only configuration. Middle Atlantic also offers pre-configured models within the WMRK series for different installation requirements.
