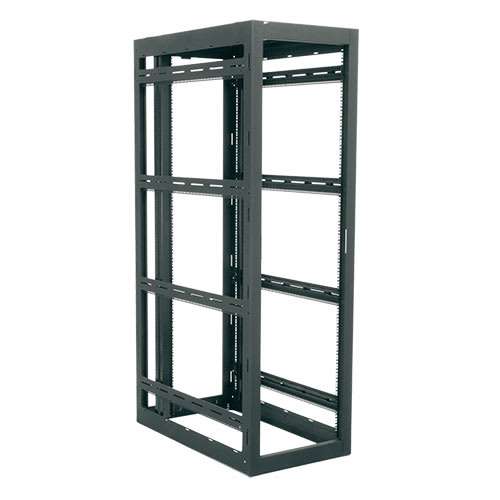

WMRK Series 24 Inches Wide Rack - WMRK-2436
24 RU floor-standing rack, 24" wide for raised-floor environments, with 36" depth and 10,000 lbs weight capacity
The WMRK-2436 is a 24 RU floor-standing rack designed specifically for mounting deep equipment within a raised-floor, 24 inch wide enclosure. This frame-only configuration features a 36 in (91.4 cm) depth and a 23.94 in (60.8 cm) overall width, making it an optimized solution for modern raised-floor environments. Constructed with fully welded components, this rack provides exceptional strength and stability, supporting a massive 10,000 lbs (4535.9 kg) weight capacity and a UL Load Capacity of 2500 lbs (1,134 kg). For specialized high-stress environments, it is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 1090 lbs (494.4 kg). The unit includes two pairs of adjustable cage nut rackrails and one pair of z-rail side-mount adaptors, which are configured to accept servers and slide kits from all leading manufacturers. This rack is TAA compliant and gangable, allowing multiple units to be joined together when fully loaded. Installation is streamlined with numbered rackspace increments and included leveling feet, alongside 100 pieces of 6mm cage nuts and hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 48.56 in (123.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 130 lbs (59 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 33.5 in (85.1 cm) |
| Usable Height | 42 in (106.7 cm) |
All other specifications 13
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 23.94 in (60.8 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| Side Panel | No |
| TAA Compliant | Yes |
| UPC | 656747098987 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 1090 lbs (494.4 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60

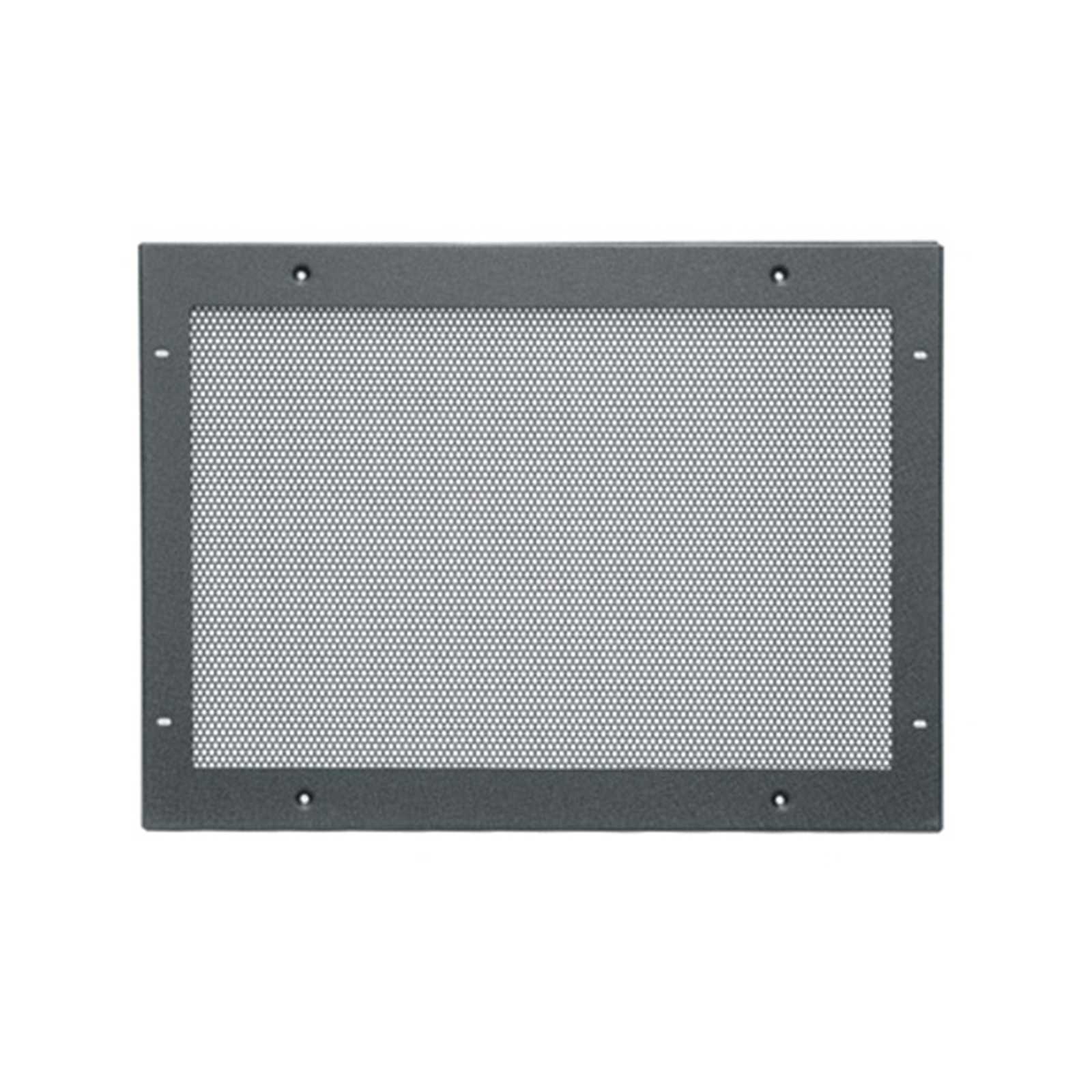

Vented Top 64% Open ERK Series
ERK-LVT$92.70

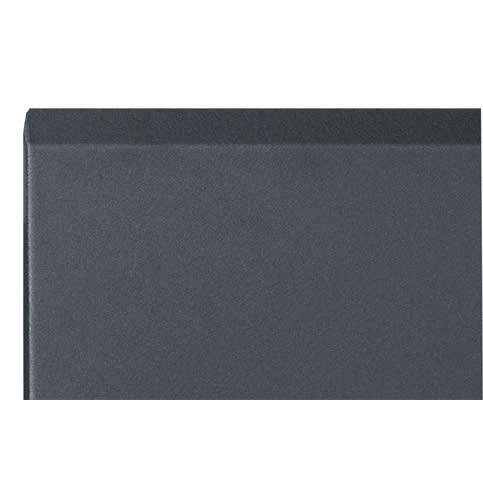

24 RU Solid Front Door for WMRK Racks
FD-WMRK-24$425.70

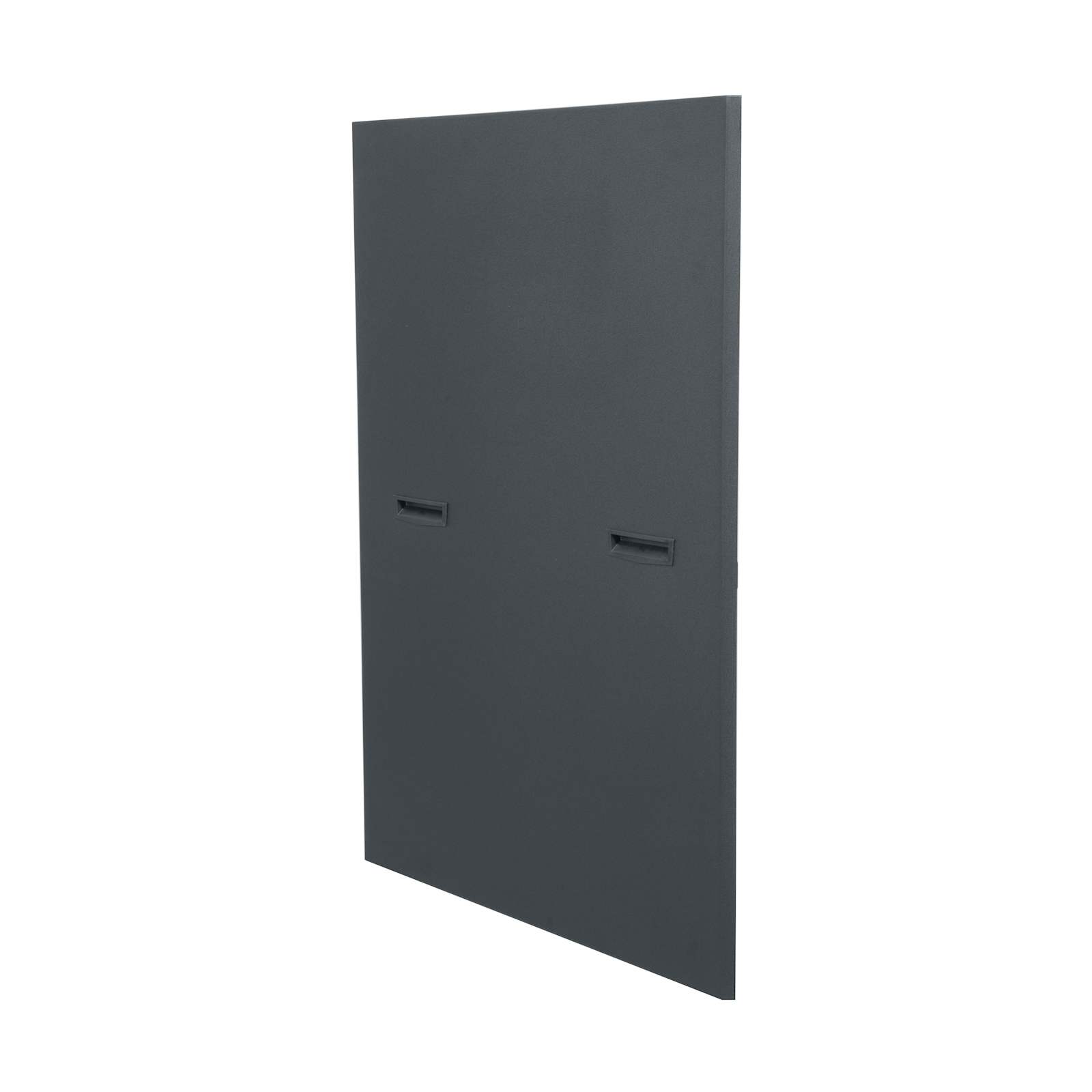

24 RU Side Panels for 36 Inch Deep WMRK Racks
SPN-24-36$954.90

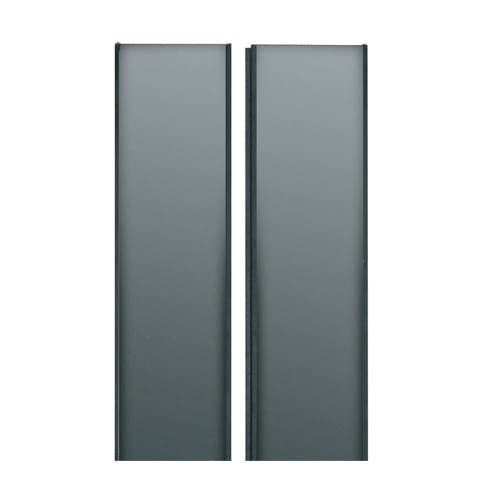

24 RU CRD Series Split Solid Rear Door for WMRK Racks
CRD-WMRK-24$575.10
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Questions about this part
Will the WMRK-2436 fit my deep server equipment?
Yes. With a 36 in (91.4 cm) depth and a 33.5 in (85.1 cm) usable depth, this rack is designed to accommodate deep servers and equipment in raised-floor environments.
What is required to complete this rack installation?
This is a frame-only configuration. To complete the setup, you may need side panels (SPN-24-36), doors (FD-WMRK-24 or CRD-WMRK-24), or vertical power strips like the PDT-1615C-NS.
Is this rack seismic rated for high-stress environments?
Yes, it is seismic rated with an ASCE 7-10 certification and provides a seismic load capacity of 1090 lbs (494.4 kg).
What hardware is included for mounting equipment?
The rack comes with two pairs of adjustable cage nut rackrails, one pair of z-rail side-mount adaptors, 100 pieces of 6mm cage nuts, and leveling feet.
Can I mount multiple WMRK series racks together?
Yes, the WMRK series is gangable, allowing you to join units together for larger enclosures when fully loaded.
