VWM Series Back Pan for Split Door, 36" High x 10" Deep - Black
Black steel back pan for split door enclosures, 36" high by 10" deep, with 150 lbs UL load capacity

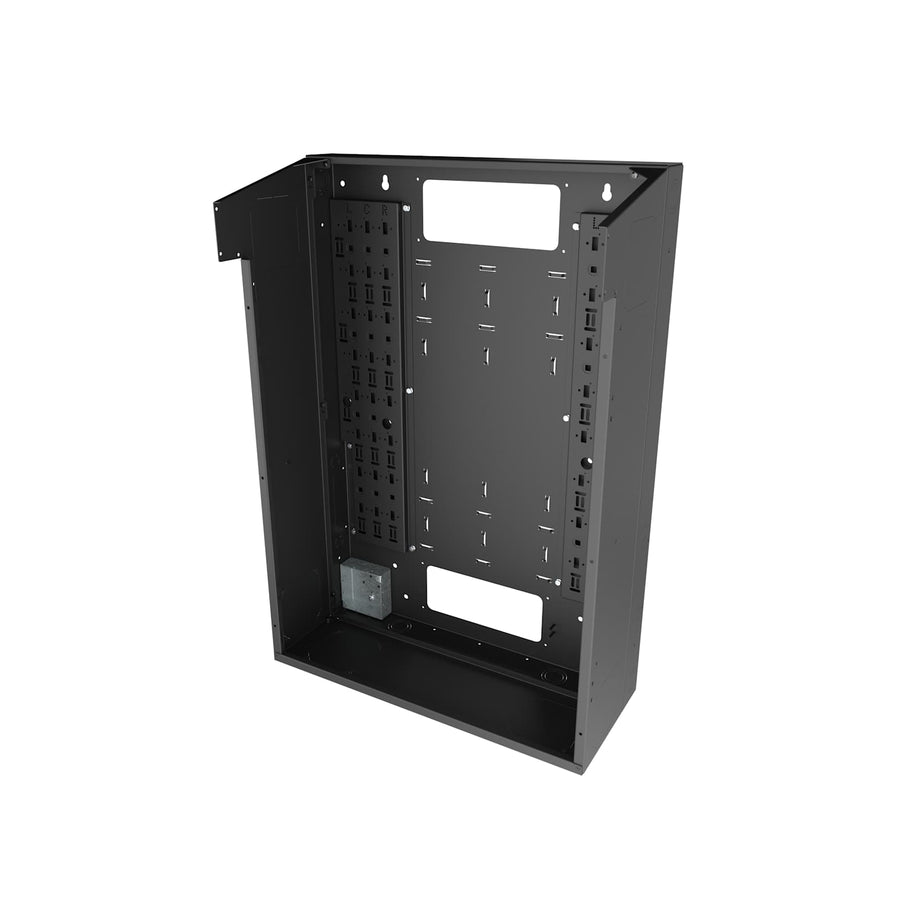

The VWM-BPSD-3610-BW is a black, wrinkle powder coat steel back pan designed specifically for use with split door options in the VWM Vertical Wall Mount series. Measuring 36 in (91.4 cm) in height and 10 in (25.4 cm) in depth, this back pan provides a 25 in (63.5 cm) width for vertical equipment mounting. It is engineered for vertical mounting with equipment positioned knobs up. This specific SKU is forward compatible with native mounting for forward cable management in the backpan. To complete your assembly, you must add separate rackrail kits; these are available in fixed or pivot styles and can be moved vertically or horizontally (left, center, or right). This back pan is also compatible with the LL-VWM-BPK Lever Lock. It carries a UL load capacity of 150 lbs (68 kg) and is TAA compliant for government projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 36 in (91.4 cm) |
| Product Weight | 25 lbs (11.3 kg) |
| Shipping Weight | 35 lbs (15.9 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 27.8 in (70.6 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Black |
| Door Type | Split Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747305733 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it

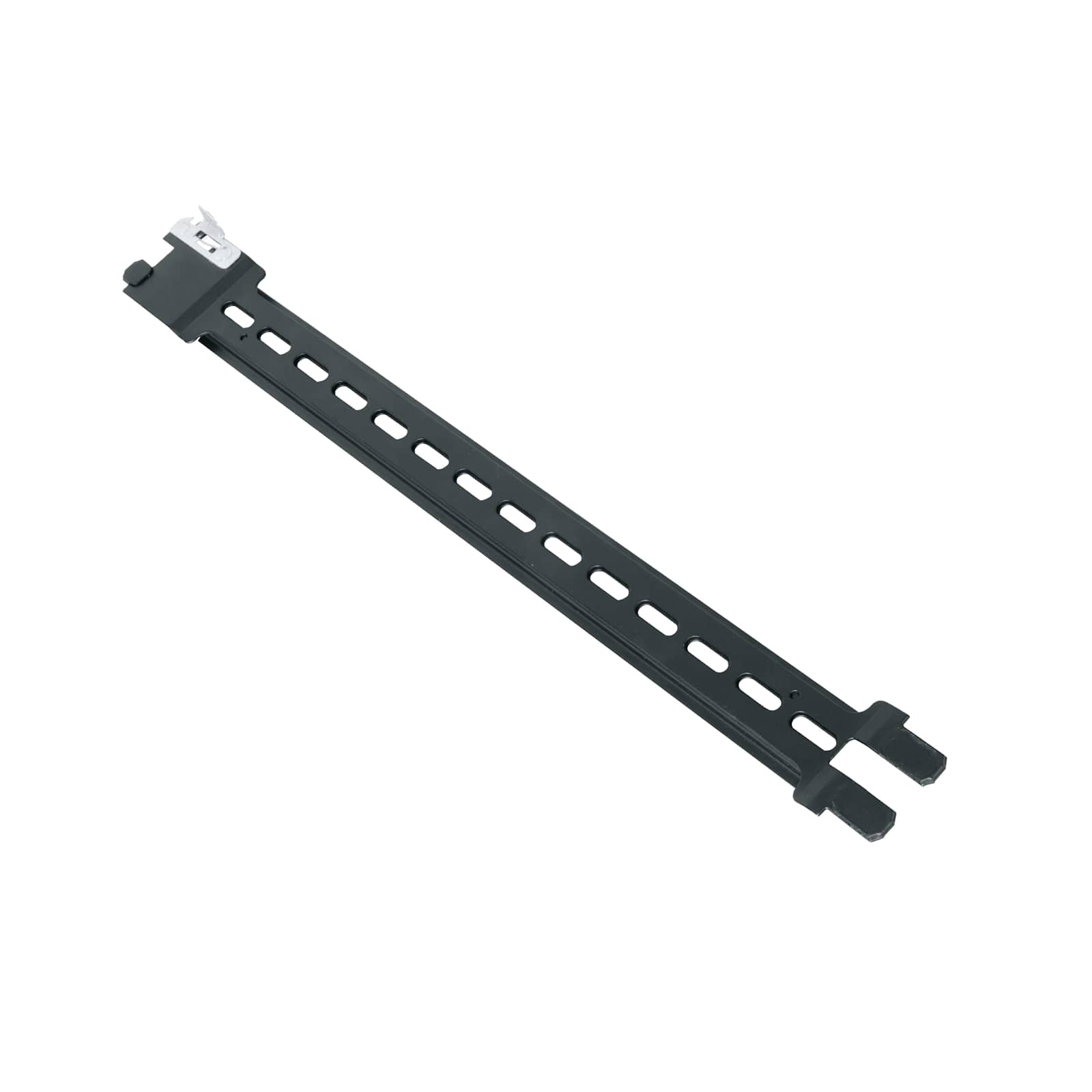

Lever Lock Vertical DIN Rail 13.6 Inches
LL-VDIN17$33.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

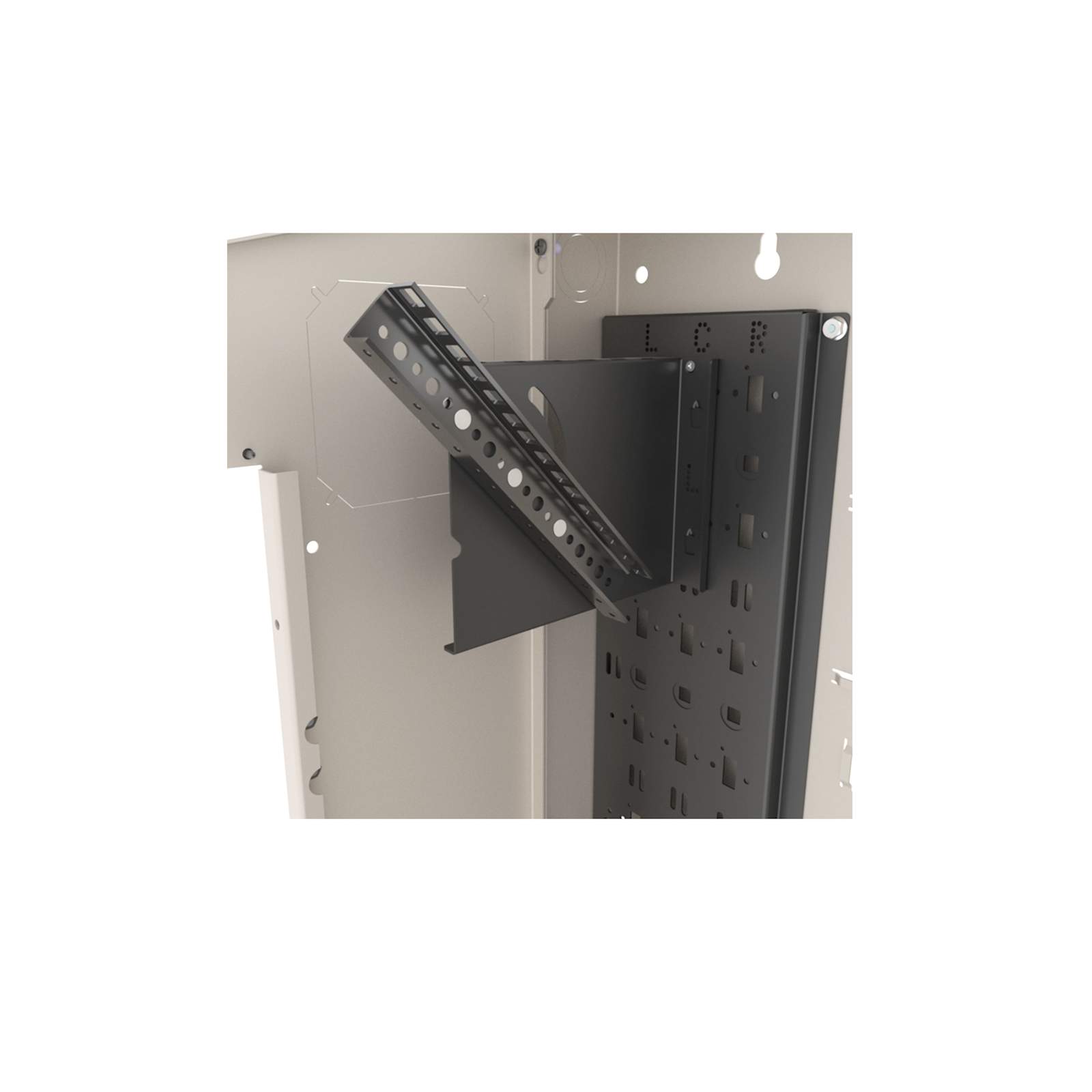

4 RU VWM Series Pivoting Rail/Mounting Bracket Kit
VWM-RR-PIV-4$115.20
3 RU Clamping Rackshelf Knockdown
RC-3$124.20
4 RU Clamping Rackshelf Knockdown
RC-4$138.60
2 RU Clamping Rackshelf Knockdown
RC-2$117.00

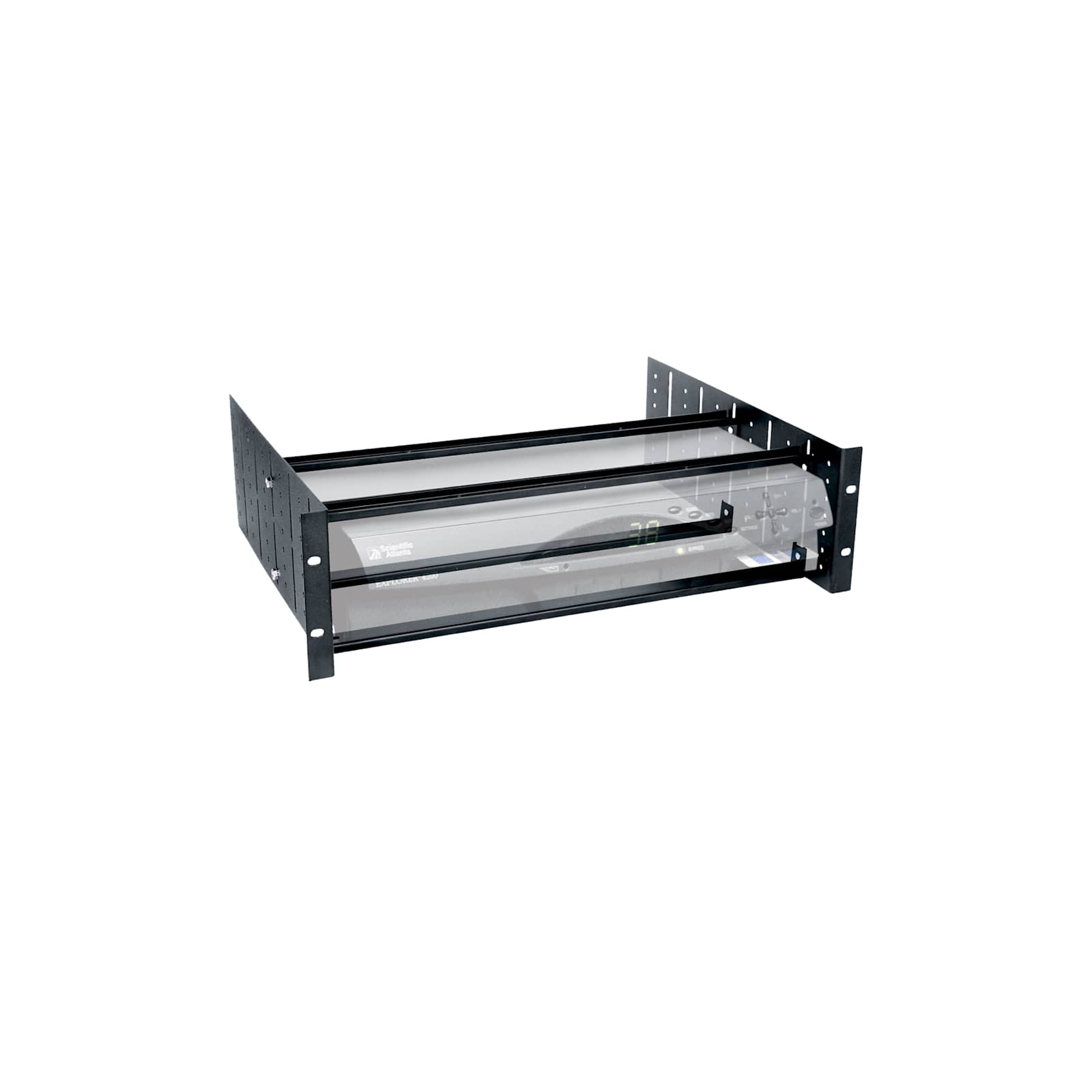

3 RU Open Satellite & Cable Box Clamp Rackshelf
