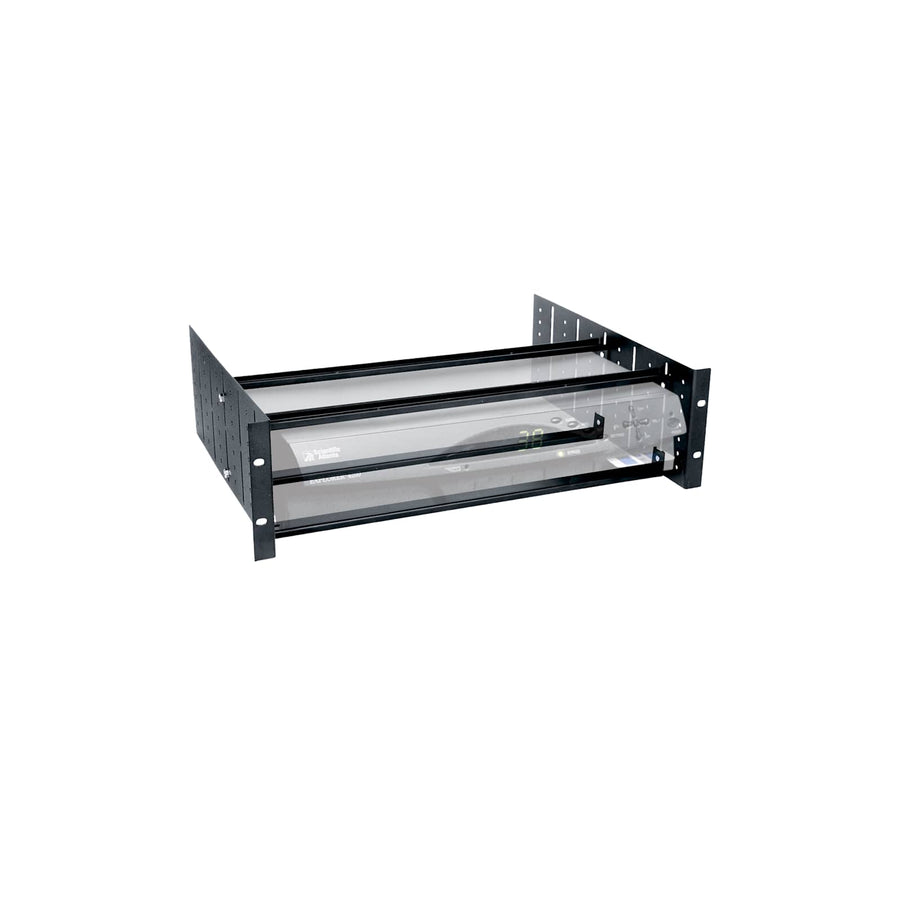

3 RU Open Satellite & Cable Box Clamp Rackshelf
3 RU open clamping rackshelf for satellite and cable boxes, featuring adjustable foam-padded bars and a 25 lbs capacity
The Middle Atlantic OCAP-3 is a 3 RU open clamping rackshelf designed specifically to secure cable and satellite boxes within a standard 19" rack. This shelf is built for components that require significant airflow to manage heat; its open design facilitates superior ventilation compared to enclosed shelves, allowing for higher equipment density. The unit features 16-gauge steel construction with a durable black powder coat finish. To ensure components stay seated, the shelf utilizes adjustable, foam-padded clamping bars on both the top and bottom. This 3 RU model provides a usable height of 4.38 in (11.1 cm) and can support a single cable box with a weight capacity of up to 25 lbs (11.3 kg). This SKU is the 3 RU version in the OCAP series; the OCAP-2 is available for smaller 2 RU requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 14 in (35.6 cm) |
| Height | 5.25 in (13.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 4.8 lbs (2.2 kg) |
| Usable Height | 4.38 in (11.1 cm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 19 in (48.3 cm) |
| Cable Box Capacity | 1 |
All other specifications 5
| Color | Black |
| Finish | Flat Powder Coat |
| Mounting Points | 2 |
| TAA Compliant | No |
| UPC | 656747079122 |
Resources
Questions about this part
Will this shelf fit my satellite box?
Yes, the OCAP-3 uses adjustable foam-padded clamping bars on the top and bottom to secure one cable or satellite box within the 4.38 in (11.1 cm) usable height.
What is the weight limit for the OCAP-3?
The OCAP-3 has a weight capacity of 25 lbs (11.3 kg) when installed in the rack.
How does this differ from the OCAP-2?
The OCAP-3 is the 3 RU version of this series, while the OCAP-2 is the 2 RU version designed for shorter equipment.
What kind of airflow does this provide?
Because of its open design, this shelf provides superior ventilation for components that generate considerable heat.
Which document do I need for a submittal?
For technical submittals, you can refer to the OCAP Series Clamping Rackshelf A&E Specification Sheet or the CAD Technical Specification Drawings.
